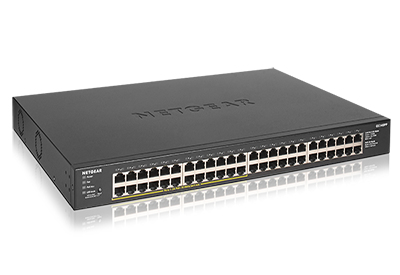

NETGEAR SOHO GS348PP-100AJS

NETGEAR SOHO 48-PORT POE+ GIGABIT UNMANAGED SWITCH 380W POE BUDGET GS348PP

  • Brand: NETGEAR
  • Category: Switches
  • SKU: 4937353
  • MPN: GS348PP-100AJS
NETGEAR

NETGEAR GS348PP-100AJS network switch Unmanaged Gigabit Ethernet…

Our SKU
MPN

Overview

NETGEAR SOHO Ethernet Unmanaged Switches
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.

Extended Features

- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent opeartion
- Desktop, wall-mountable or rack-mountable (GS324, GS348)

Key features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes
  • Basic switching RJ-45 Ethernet ports quantity: 48
  • Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
  • 10G support: No
  • Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
  • Full duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Auto-sensing: Yes
  • Auto-negotiation: Yes
  • Cable length detection: Yes
  • Switching capacity: 96 Gbit/s
  • Forwarding rate: 1.448 Mpps
  • MAC address table: 8000 entries
  • Latency (1 Gbps): 4 µs
  • Jumbo frames support: Yes
  • Jumbo frames: 12288
  • Packet forwarding rate (1 Gbps): 1448000 pps
  • Packet buffer memory: 1.5 MB
  • Queue scheduling algorithms: Weighted Round Robin (WRR)
  • Rack mounting: Yes
  • Product colour: Black
  • Housing material: Metal

Specifications

Power

AC input voltage110 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)410 W

Design

Rack mountingYes
Product colourBlack
Housing materialMetal
LED indicatorsActivity, Link, PoE, Power, Speed
Number of fans2 fan(s)

Network

Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Auto-negotiationYes
Cable length detectionYes

Security

Queue scheduling algorithmsWeighted Round Robin (WRR)

Performance

Mean time between failures (MTBF)570972 h

Certificates

CertificationCE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL

Logistics data

Harmonized System (HS) code85176990

Data transmission

Switching capacity96 Gbit/s
Forwarding rate1.448 Mpps
MAC address table8000 entries
Latency (1 Gbps)4 µs
Jumbo frames supportYes
Jumbo frames12288
Packet forwarding rate (1 Gbps)1448000 pps
Packet buffer memory1.5 MB

Packaging content

Cables includedAC
User guideYes
Rack mount kitYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)

Management features

Switch typeUnmanaged
Quality of Service (QoS) supportYes

Weight & dimensions

Width440 mm
Depth310 mm
Height43 mm
Weight4.56 kg

Operational conditions

Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 95%
Operating altitude0 - 3000 m
Heat dissipation1402.2 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity24
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget380 W
