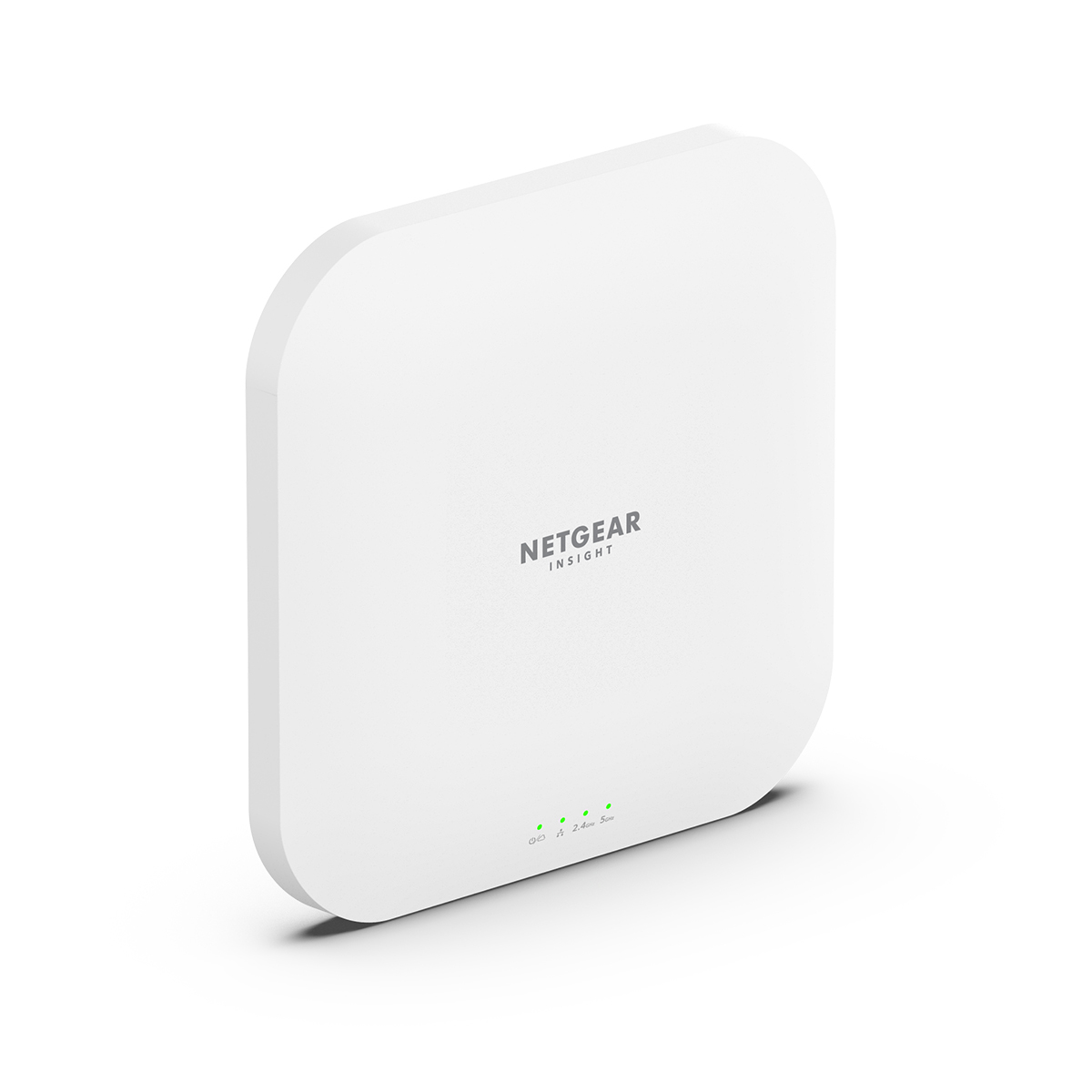

NETGEAR WAX620-100EUS Wi-Fi 6 Access Point AX1800 Tri-Band Insight Managed
Wi-Fi 6 Access Point AX1800 Tri-Band Insight Managed
- Brand: NETGEAR
- Category: Access Points (WiFi)
- SKU: WAX620-100EUS
- MPN: WAX620-100EUS
NETGEAR
NETGEAR Insight Cloud Managed WiFi 6 AX3600 Dual Band Access Point…
- SKU
- CNZ-SN-001801
- MPN
- WAX620-100EUS
- Warranty
- 60 months
- Rating
- No reviews yet
−21%
Overview
Get powerful and reliable WiFi 6 connectivity for all your devices, even in high-density environments. Simplified enterprise-grade security and networking for the smaller business.
High-Performance Business WiFi
Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band
Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.
Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.
Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring
Easy Setup
Set up, configure, and manage with NETGEAR Insight
Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included
Business-Level Security
WPA3 for the highest level of WiFi connection security
8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more
Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
High-Performance Business WiFi
Faster and more reliable dual band WiFi 6 with 8 streams and up to 2.4Gbps in 5GHz band and 1.2Gbps in 2.4GHz band
Ideal for High Density Environments
Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.
Greater Network Capacity
Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.
Seamless Wireless Mesh
Wire-free installation with other WAX620, WAX610, WAX610Y, WAC540, or WAC564 creates the perfect seamless business network.
Multi-Gigabit Speed
Includes a 2.5 Gbps Ethernet port with PoE for high speed wired network connectivity and easy wiring
Easy Setup
Set up, configure, and manage with NETGEAR Insight
Flexible Mounting
Easy to securely install on the wall of a suspended ceiling with the hardware included
Business-Level Security
WPA3 for the highest level of WiFi connection security
8 Wireless Networks (SSIDs)
Separate and secure networks for admin, guests, employees and IoT devices like cameras, locks and more
Separate VLANs
Keep admin, employee, visitor, HR, Finance department networks safely separated from each other
Key features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 3600 Mbit/s
- Maximum data transfer rate (2.4 GHz): 1200 Mbit/s
- Maximum data transfer rate (5 GHz): 2400 Mbit/s
- Ethernet LAN data rates: 100,1000,2500 Mbit/s
- Networking standards: IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at
- Auto MDI/MDI-X: Yes
- MIMO: Yes
- MIMO type: Multi User MIMO
- Modulation: OFDM
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
- Security algorithms: EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3
- MAC address filtering: Yes
- Auto Wireless Distribution System (WDS): Yes
- Web-based management: Yes
- Ethernet LAN (RJ-45) ports: 1
- DC-in jack: Yes
- Power over Ethernet (PoE): Yes
- Output voltage: 12 V
- Output current: 2.5 A
- Placement: Ceiling, Wall
- Product colour: White
Specifications
Power
| Power over Ethernet (PoE) | Yes |
|---|---|
| Output voltage | 12 V |
| Output current | 2.5 A |
Design
| Placement | Ceiling, Wall |
|---|---|
| Product colour | White |
| LED indicators | LAN, Power, WLAN |
Antenna
| Antenna type | Internal |
|---|---|
| Antenna gain level (max) | 4.3 dBi |
Features
| 2.4 GHz | Yes |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 3600 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Networking standards | IEEE 802.11ax, IEEE 802.11i, IEEE 802.3af, IEEE 802.3at |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | OFDM |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
Security
| Security algorithms | EAP-TLS, PEAP, SSL/TLS, TTLS, WPA, WPA2, WPA3 |
|---|---|
| MAC address filtering | Yes |
| Auto Wireless Distribution System (WDS) | Yes |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| Mounting kit | Yes |
| Quick start guide | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|---|
| DC-in jack | Yes |
Management features
| Web-based management | Yes |
|---|
Weight & dimensions
| Width | 205.7 mm |
|---|---|
| Depth | 205.7 mm |
| Height | 34.3 mm |
| Weight | 783 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Questions
$453.09inc GST
