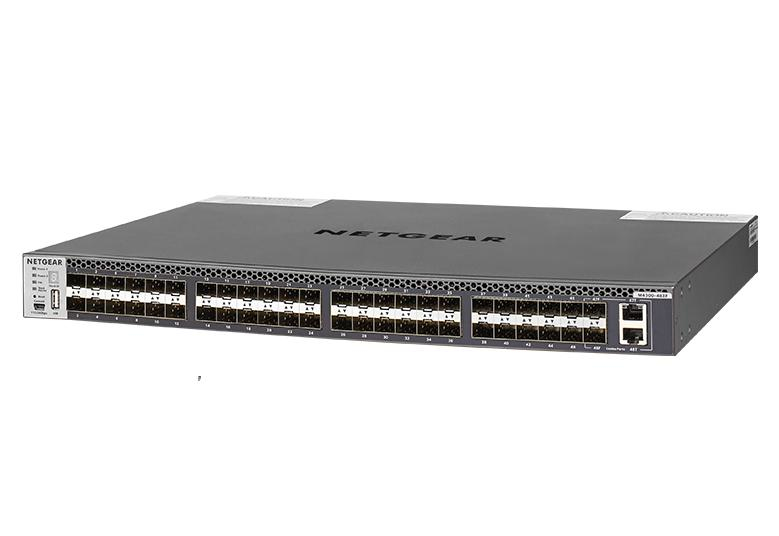

NETGEAR M4300-48XF Managed L3 1U Black

Our SKU
MPN
Rating: No reviews yet

NETGEAR XSM4348FS 48XF 48-PORT MNGD SWITCH — NETGEAR

Overview

Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)

High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack

Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities

PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)

Link Dependency
Enables or disables ports based on link state of different ports

Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation

Flexible Speeds
48 Copper ports have 100M/1G/10G speeds 48x10GBASE-T + 4X SFP+ Ports

Key features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
SFP+ module slots quantity: 48
Console port: RJ-45/Mini-USB
USB 2.0 ports quantity: 1
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3bz, IEEE 802.3u
10G support: Yes
Port mirroring: Yes
IP routing: Yes
Link aggregation: Yes
Auto-sensing: Yes
VLAN support: Yes
Virtual LAN features: Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs: 4093
Switching capacity: 960 Gbit/s
Throughput: 714 Mpps
MAC address table: 128000 entries
Store-and-forward: Yes
Number of queues: 8
Number of static routes: 64
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 56 MB

Specifications

Power

Power source	AC
Power supply included	Yes
Number of power supply units	1
Power consumption (max)	152.4 W

Design

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Black
Airflow direction	Front-to-back airflow

Network

Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3bz, IEEE 802.3u
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Link aggregation	Yes
Auto-sensing	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4093

Security

DHCP features	DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication

Protocols

GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	OSPF, OSPFv3, RIP, RIP-1, RIP-2

Performance

Physical stacking (units)	8
Built-in processor	Yes
Processor frequency	800 MHz
Internal memory	1024 MB
Noise level	42.4 dB
Mean time between failures (MTBF)	657392 h

Data transmission

Switching capacity	960 Gbit/s
Throughput	714 Mpps
MAC address table	128000 entries
Store-and-forward	Yes
Number of queues	8
Number of static routes	64
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	56 MB

Packaging content

Rack mount kit	Yes

Multicast features

Multicast support	Yes
Number of multicast groups filtered	4000

Ports & interfaces

SFP+ module slots quantity	48
Console port	RJ-45/Mini-USB
USB 2.0 ports quantity	1

Management features

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes

Weight & dimensions

Width	440 mm
Depth	535 mm
Height	88 mm
Weight	5.86 kg

Operational conditions

Heat dissipation	577.8 BTU/h

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

NETGEAR XSM4348FS 48XF 48-PORT MNGD SWITCH
