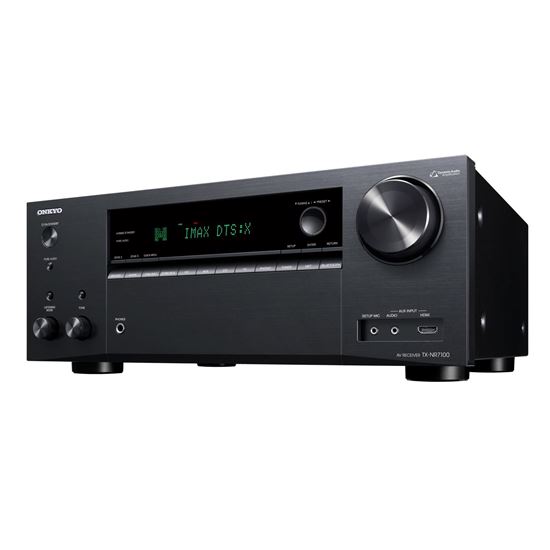

ONKYO 9.2 Channel Home Theatre Network AV Receiver Amplifier. 220 9.2 Channel Home Theatre Network AV Receiver Amp. 220 Watts per Channel.1x Phono
Brand: Onkyo Category: Audio & Video SKU: TXNR7100B MPN: TXNR7100B Home Audio & Video Onkyo Onkyo ONKYO 9.2 Channel Home Theatre Network AV Receiver Amplifier. 220
SKU CNZ-CD-000329
MPN TXNR7100B Overview Specifications Questions Overview ONKYO 9.2 Channel Home Theatre Network AV Receiver Amplifier. 220 Watts per Channel.1x Phono (MM) In, 2x Subwoofer Preout, 9x HDMI (7x In 2x Out) 6x Audio RCA In, 2x Digital In, 1x Audio RCA Out. Weight 10.4kg
At a glance Weight 10.4kg Weight (21) CARTON Weight (23) 13.5kg Power supply AC 120V~, 60Hz Tone control ±10dB, 20Hz (Bass) ±10dB, 20kHz (Treble) Dynamic power 250W (3 ohms, Front) 220W (4 ohms, Front) 130W (8 ohms, Front) Speaker impedance 4~16 ohms Frequency response 10Hz~100kHz/+1dB, -3dB (Direct/Pure Audio)
All 25 specifications Specifications Power supply Power supply AC 120V~, 60Hz
Tone control Tone control ±10dB, 20Hz (Bass) ±10dB, 20kHz (Treble)
Dynamic power Dynamic power 250W (3 ohms, Front) 220W (4 ohms, Front) 130W (8 ohms, Front)
Speaker impedance Speaker impedance 4~16 ohms
Frequency response Frequency response 10Hz~100kHz/+1dB, -3dB (Direct/Pure Audio)
FM/AM preset memory FM/AM preset memory 40 stations
Supplied Accessories Supplied Accessories • Power cord • Indoor FM antenna • AM loop antenna • Speaker setup microphone • Quick Start Guide • Remote controller • AAA (R03) batteries x 2
Signal-to-noise ratio Signal-to-noise ratio 106dB (Line, IHF-A) 80dB (Phono, IHF-A)
Speaker impedance (9) Speaker impedance (9) Video Section
Dimensions (W x H x D) Dimensions (W x H x D) 435 x 173.5 x 379.5mm
Tuning frequency range Tuning frequency range FM 87.5MHz~107.9MHz AM 530kHz~1,710kHz
FM/AM preset memory (14) FM/AM preset memory (14) General
Power consumption (idle) Power consumption (idle) 75W
Dimensions (W x H x D) (22) Dimensions (W x H x D) (22) 534 x 265 x 468mm
Power consumption (standby) Power consumption (standby) 0.1W
Power output (All channels) Power output (All channels) 220W/Ch (6 ohms, 1kHz, 10% THD, 1-ch driven)100W/Ch (8 ohms, 20Hz–20kHz, 0.08% THD, 2-ch driven, FTC)
Power consumption (operating) Power consumption (operating) 750W
Input sensitivity and impedance Input sensitivity and impedance 200mV rms/47k-ohms (Line) 3.5mV rms/47k-ohms (Phono MM)
Rated RCA output level and impedance Rated RCA output level and impedance 1V rms/470 ohms (Subwoofer pre-out) 200mV rms/470 ohms (Zone 2/Zone B line-out)
THD+N (Total Harmonic Distortion + Noise) THD+N (Total Harmonic Distortion + Noise) 0.08% (20Hz–20kHz, half power)
Input sensitivity/output level and impedance Input sensitivity/output level and impedance 1.0Vp–p/75 ohms (Component Y) 0.7Vp–p/75 ohms (Component Pb/Pr) 1.0Vp–p/75 ohms (Composite)
Input sensitivity/output level and impedance (11) Input sensitivity/output level and impedance (11) Tuner Section
$2,256.29 inc GST
