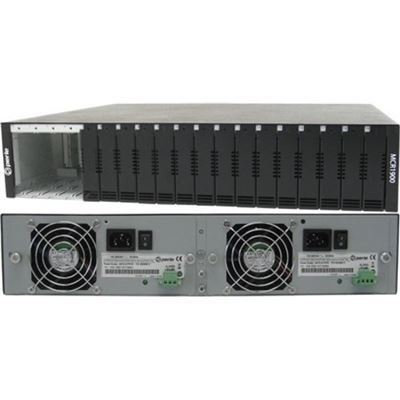

MCR1900-DAC - 19 slot chassis for media Converter modules. Dual AC power. 15 empty slot cover plates included. Mounting brackets for 19 inch racks included
MCR1900-DAC - 19 slot chassis for media Converter modules. Dual AC power. 15 empty slot cover plates included. Mounting brackets for 19 inch racks included
Specifications
Brand
Brand
Perle
Vendor
Vendor
Perle
Weight
Weight
7 kg
Form factor
Form factor
Rack-mountable
Vendor code
Vendor code
Perle
Vendor site
Vendor site
Perle
Eco friendly
Eco friendly
Emissions: FCC Part 15 Class A, EN55022 Class A CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A ICES-003, Issue 4, February 2004 (Canada) EN55022:1998 + A1:2000 + A2:2003 Class A EN61000-3-2 : 1995, Limits for Harmonic Current Emissions EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker Immunity: EN55024:1998 + A1:2001 + A2:2003 EN61000-4-2: Electrostatic Discharge EN61000-4-3: RF Electromagnetic Field Modulated EN61000-4-4: Fast Transients EN61000-4-5: Surge EN61000-4-6: RF Continuous Conducted EN61000-4-8: Power-Frequency Magnetic Field EN61000-4-11: Voltage Dips and Voltage Interruptions Safety: IEC 60950-1, First Edition (2001-10) and EN60950-1:2001, CB scheme. CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
Product name
Product name
Perle
Product type
Product type
Perle
Display depth
Display depth
356 mm
Display width
Display width
356 mm
Product model
Product model
Perle
What's in box
What's in box
MCR1900 Media Converter Chassis 2U Rack Mounting Hardware 15 x Empty Slot Cover Plates
Display height
Display height
356 mm
Additional info
Additional info
High Density Media Converter Platform: Insert up to 19 modules into a single 2U chassis. The modules share a common power source. Rugged Chassis Design: U-channeled card cage provides high torsional rigidity Unified design between chassis slot and module faceplates provide additional chassis strength Redundant vertical supports ensure that slot alignment remains accurate enabling easy card insertion and removals over time Advanced card guide design along with 32 pin DIN 41612 connectors offer better card mating accuracy for reliable module additions and changes Made with zinc coated cold-rolled steel offering excellent corrosion resistance Extra ventilation slots on module face plates provide cooler operation and longer life Multi channel air flow for improve card cooling Auto-Thermal Shutdown Protection should internal temperature threshold be exceeded Hot-Swappable modules: Modules can be inserted and removed with no impact to the rest of the system. Upon insertion the module will automatically be powered up and begin functioning. Modules can be placed in any slot and in any order. Power Supply Failover: On dual power supply configurations, the load sharing power supplies provide instant failover should a power supply or power source fail. A single power supply can provide more than sufficient power for a fully loaded system. Intelligent Alarm Relay: A backplane controller provides continuous monitoring of vital chassis resources. The built-in, normally open/closed, dry contact relay will engage on the following fault conditions: Power supply failure High internal temperature Fan speed failure Backplane voltage error
Compliance & standards
Compliance & standards
Emissions: FCC Part 15 Class A, EN55022 Class A CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A ICES-003, Issue 4, February 2004 (Canada) EN55022:1998 + A1:2000 + A2:2003 Class A EN61000-3-2 : 1995, Limits for Harmonic Current Emissions EN61000-3-3 : 1995, Limits of Voltage Fluctuations and Flicker Immunity: EN55024:1998 + A1:2001 + A2:2003 EN61000-4-2: Electrostatic Discharge EN61000-4-3: RF Electromagnetic Field Modulated EN61000-4-4: Fast Transients EN61000-4-5: Surge EN61000-4-6: RF Continuous Conducted EN61000-4-8: Power-Frequency Magnetic Field EN61000-4-11: Voltage Dips and Voltage Interruptions Safety: IEC 60950-1, First Edition (2001-10) and EN60950-1:2001, CB scheme. CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, First Edition April 1st 2003 (Recognized Component)
