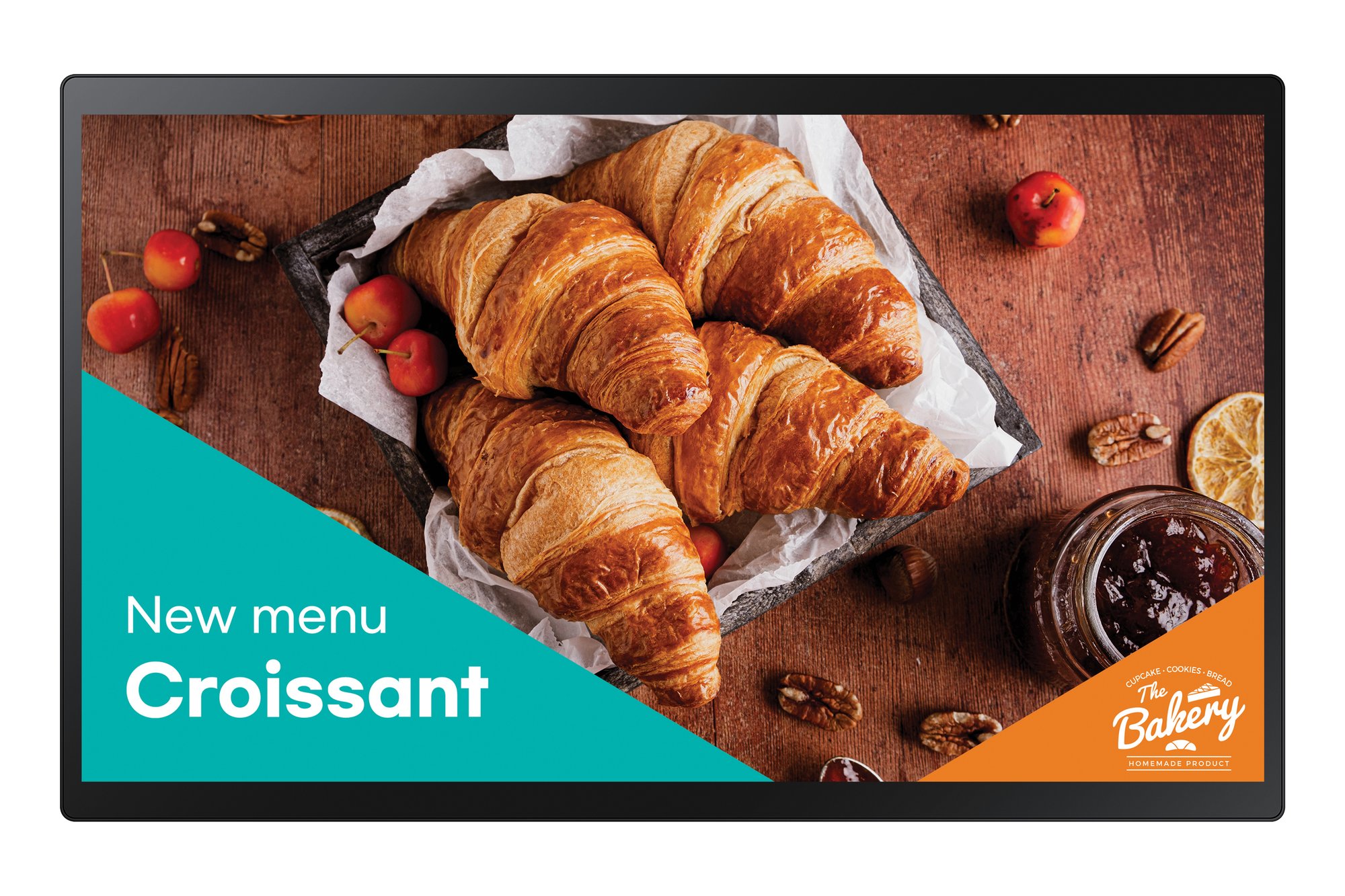

SAMSUNG QB24C-T
24in QB24C-T Full HD Interactive Display 1920x1080 1000:1 CR HDMIx1 USBx1 IR in RS232 in RJ45 in WiFi
- Brand: SAMSUNG
- Category: Monitors
- SKU: 6143576
- MPN: LH24QBCTBGCXXY
SAMSUNGSamsung QB24C-T Digital signage flat panel 61 cm (24") LED Wi-Fi 250…
- SKU
- CNZ-IM-041383
- MPN
- LH24QBCTBGCXXY
Overview
Samsung QB24C-T. Product design: Digital signage flat panel. Display diagonal: 61 cm (24"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Wi-Fi. Operating hours (hours/days): 16/7. Operating system installed: Tizen 7.0. Product colour: Black
Key features
- Panel type: ADS
- Display diagonal: 61 cm (24")
- Display technology: LED
- Display resolution: 1920 x 1080 pixels
- Display brightness: 250 cd/m²
- HD type: Full HD
- Touchscreen: Yes
- Touchscreen technology: Capacitive
- Multi-touch: Yes
- Response time: 14 ms
- Contrast ratio (typical): 1000:1
- Dynamic contrast ratio marketing name: Mega Contrast
- Viewing angle, horizontal: 178°
- Viewing angle, vertical: 178°
- Pixel pitch: 0.2745 x 0.2745 mm
- Horizontal scan range: 56 - 84.5 kHz
- Vertical scan range: 48 - 75 Hz
- Haze rate: 25%
- RGB colour space: NTSC
- Colour gamut: 72%
- HDMI ports quantity: 1
- HDMI version: 1.4
- HDMI input ports quantity: 1
- DVI port: No
Specifications
Power
| Power consumption (typical) | 38.5 W |
|---|
| Power consumption (sleep) | 0.5 W |
|---|
Design
| Product design | Digital signage flat panel |
|---|
| Placement supported | Indoor |
|---|
| Product colour | Black |
|---|
| Screen shape | Flat |
|---|
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
Display
| Panel type | ADS |
|---|
| Display diagonal | 61 cm (24") |
|---|
| Display technology | LED |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| Display brightness | 250 cd/m² |
|---|
| HD type | Full HD |
|---|
| Touchscreen | Yes |
|---|
| Touchscreen technology | Capacitive |
|---|
| Multi-touch | Yes |
|---|
| Response time | 14 ms |
|---|
| Contrast ratio (typical) | 1000:1 |
|---|
| Dynamic contrast ratio marketing name | Mega Contrast |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Pixel pitch | 0.2745 x 0.2745 mm |
|---|
| Horizontal scan range | 56 - 84.5 kHz |
|---|
| Vertical scan range | 48 - 75 Hz |
|---|
| Haze rate | 25% |
|---|
| RGB colour space | NTSC |
|---|
| Colour gamut | 72% |
|---|
Performance
| Purpose | Universal |
|---|
| Operating hours (hours/days) | 16/7 |
|---|
| HDCP | Yes |
|---|
| HDCP version | 2.2 |
|---|
Other features
| Bluetooth | Yes |
|---|
| Flash memory | 8000 MB |
|---|
| RS-232 input ports | 1 |
|---|
| RJ-45 input ports | 1 |
|---|
Packaging data
| Package width | 620 mm |
|---|
| Package depth | 122 mm |
|---|
| Package height | 419 mm |
|---|
| Package volume | 5200 cm³ |
|---|
Computer system
| Computer system | Yes |
|---|
| Computer system type | System on Chip (SoC) |
|---|
| Built-in processor | Yes |
|---|
| Operating system installed | Tizen 7.0 |
|---|
Technical details
| Audio out (mini jack) | 1 |
|---|
| Sustainability compliance | Yes |
|---|
| Sustainability certificates | EPEAT Bronze |
|---|
Ports & interfaces
| HDMI ports quantity | 1 |
|---|
| HDMI version | 1.4 |
|---|
| HDMI input ports quantity | 1 |
|---|
| DVI port | No |
|---|
| USB port | Yes |
|---|
| USB ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| RS-232 interface | Yes |
|---|
| Infrared data port | Yes |
|---|
| Remote (IR) input | 1 |
|---|
Weight & dimensions
| Display width | 547.9 mm |
|---|
| Display depth | 34.6 mm |
|---|
| Display height | 334.4 mm |
|---|
| Display weight | 4 kg |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 10 - 80% |
|---|
$1,309.84inc GST
