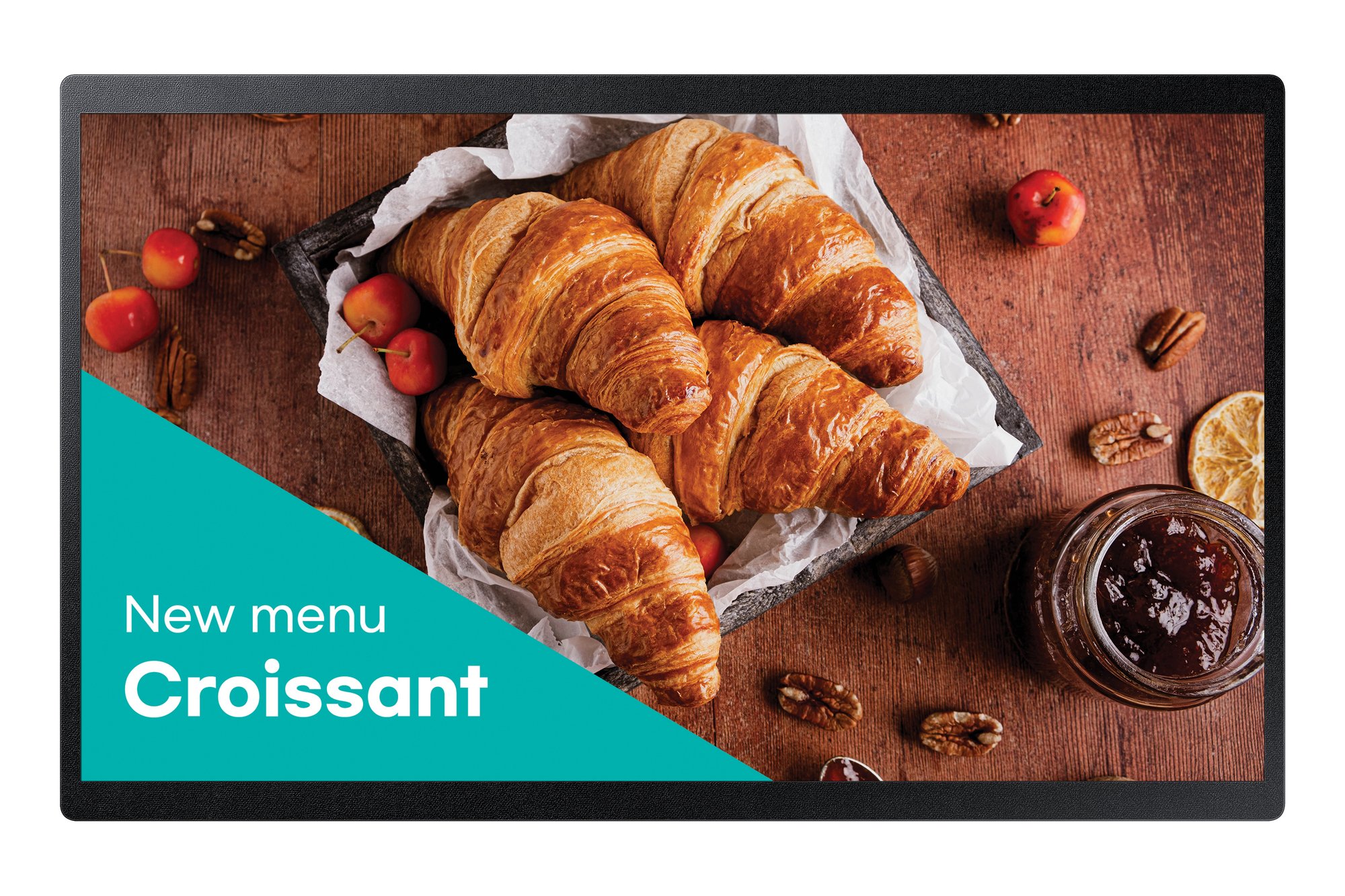

SAMSUNG (QBC) SIGNAGE 24" FHD, 250NITS, 25% HAZE, HDMI, LAN/WIFI, LANDSCAPE, 16H/7D, 3Y

Audio & Video > Monitors

  • Brand: SAMSUNG
  • Category: Monitors
  • SKU: LH24QBCEBGCXXY
  • MPN: LH24QBCEBGCXXY
SAMSUNG

Samsung LH24QBCEBGCXXY Signage Display Digital signage flat panel 61…

SKU
CNZ-DD-030876
MPN
LH24QBCEBGCXXY

Overview

Expand commercial space with compact display
Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.

Hold sizable opportunities in small spaces
Compact Design
The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.

Connect with convenience
Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.

Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Safe operation, reliable performance
IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.

Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.

Key features

  • Panel type: ADS
  • Display diagonal: 61 cm (24")
  • Display technology: LED
  • Display resolution: 1920 x 1080 pixels
  • Display brightness: 250 cd/m²
  • HD type: Full HD
  • Touchscreen: No
  • Response time: 14 ms
  • Contrast ratio (typical): 1000:1
  • Dynamic contrast ratio marketing name: Mega Contrast
  • Viewing angle, horizontal: 178°
  • Viewing angle, vertical: 178°
  • Pixel pitch: 0.2745 x 0.2745 mm
  • Horizontal scan range: 56 - 84.5 kHz
  • Vertical scan range: 48 - 75 Hz
  • Haze rate: 25%
  • RGB colour space: NTSC
  • Colour gamut: 72%
  • HDMI ports quantity: 1
  • HDMI version: 1.4
  • HDMI input ports quantity: 1
  • DVI port: No
  • USB port: Yes
  • USB ports quantity: 1

Specifications

Power

Power consumption (typical)38.5 W
Power consumption (sleep)0.5 W
AC input voltage100-240 V
AC input frequency50-60 Hz

Design

Product designDigital signage flat panel
Product colourBlack
Screen shapeFlat
VESA mountingYes
Panel mounting interface100 x 100 mm
Bezel width (bottom)1.79 cm
Bezel width (side)9.4 mm
Bezel width (top)1.79 cm
Bezel colourBlack

Display

Panel typeADS
Display diagonal61 cm (24")
Display technologyLED
Display resolution1920 x 1080 pixels
Display brightness250 cd/m²
HD typeFull HD
TouchscreenNo
Response time14 ms
Contrast ratio (typical)1000:1
Dynamic contrast ratio marketing nameMega Contrast
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.2745 x 0.2745 mm
Horizontal scan range56 - 84.5 kHz
Vertical scan range48 - 75 Hz
Haze rate25%
RGB colour spaceNTSC
Colour gamut72%

Network

Ethernet LANYes
Wi-FiYes

Performance

PurposeUniversal
Operating hours (hours/days)16/7
HDCPYes
HDCP version2.2

Certificates

CertificationClass B

Other features

BluetoothYes
Flash memory8000 MB
RS-232 input ports1
RJ-45 input ports1

Packaging data

Package width620 mm
Package depth122 mm
Package height419 mm
Package volume4100 cm³

Computer system

Computer systemYes
Computer system typeSystem on Chip (SoC)
Built-in processorYes
Operating system installedTizen
Operating system version7.0

Technical details

Audio out (mini jack)1

Ports & interfaces

HDMI ports quantity1
HDMI version1.4
HDMI input ports quantity1
DVI portNo
USB portYes
USB ports quantity1
Ethernet LAN (RJ-45) ports1
RS-232 interfaceYes
Infrared data portYes
Remote (IR) input1

Weight & dimensions

Display width547.9 mm
Display depth31.8 mm
Display height334.4 mm
Display weight3 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 80%

Questions

$926.89inc GST
