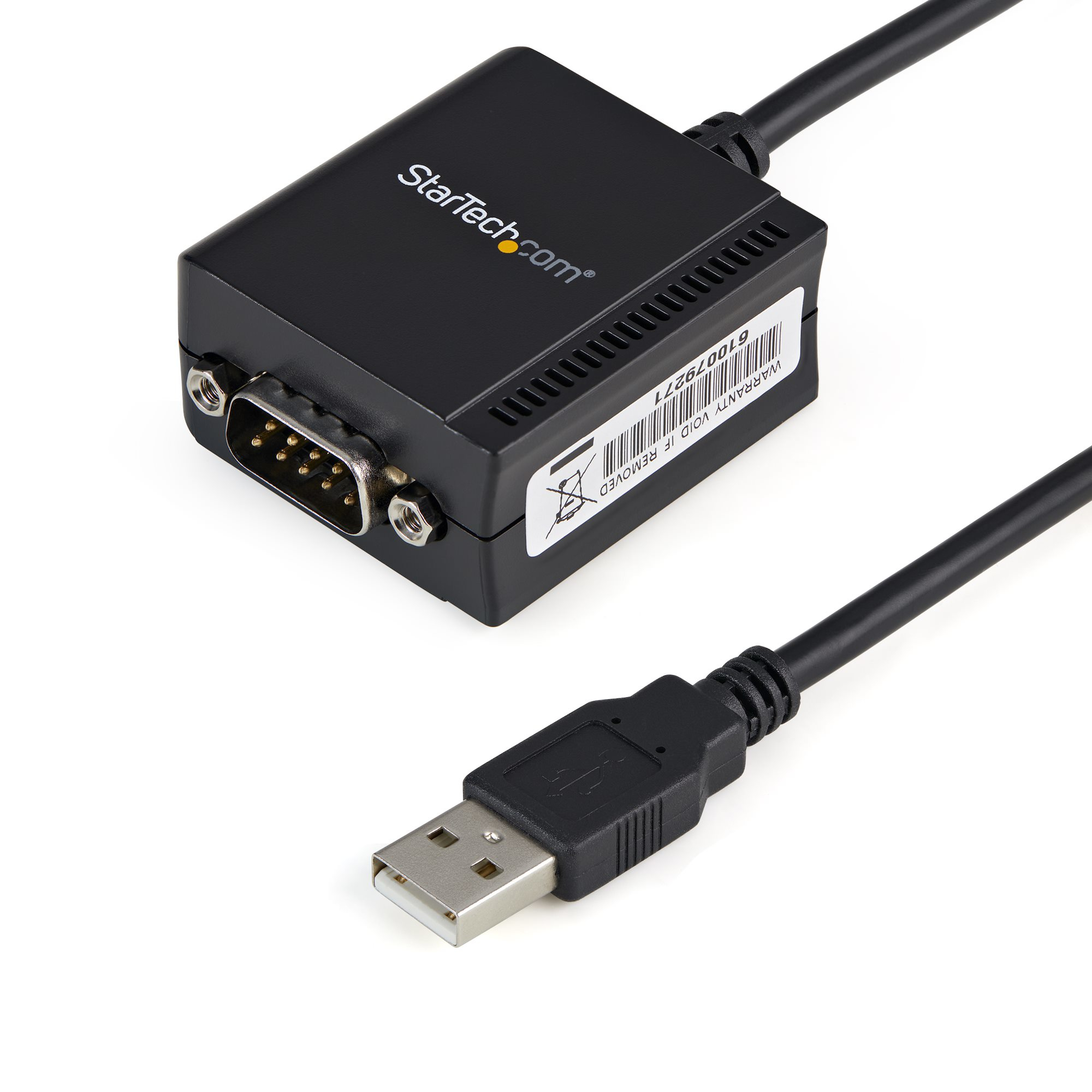

StarTech.com 1 Port FTDI USB to Serial RS232 Adapter Cable with COM…

SKU: CNZ-DD-029559
MPN: ICUSB2321F
Rating: No reviews yet

STARTECH.COM 1 PORT FTDI USB TO SERIAL 232 ADAPTER CABLE COM RETENTION 2 YR — STARTECH

Overview

Add an RS232 serial port with COM retention to your laptop or desktop computer through USB

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

Connector 1: DB-9
Connector 2: USB 2.0 A
Connector 1 gender: Male
Connector 2 gender: Male
Cable length: 0.2 m
Product colour: Black
Chipset: FTDI - FT232RL
Data bits: 7, 8
Stop bits: 1, 2
Baud rate: 115.2 Kbit/s
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 256 B
Compatible operating systems: Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Relative humidity: 5 - 95%
Compliance certificates: RoHS
Certification: CE, FCC
Width: 41.5 mm
Depth: 45 mm
Height: 22 mm
Weight: 90 g
Manual: Yes
Drivers included: Yes

At a glance

Product colour	Black
Chipset	FTDI - FT232RL
Data bits	7, 8
Stop bits	1, 2
Baud rate	115.2 Kbit/s
Parity bit	Even, Mark, No, Odd, Space
FIFO (First In, First Out)	256 B
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x

All 32 specifications

Specifications

Performance

Product colour	Black
Chipset	FTDI - FT232RL
Data bits	7, 8
Stop bits	1, 2
Baud rate	115.2 Kbit/s
Parity bit	Even, Mark, No, Odd, Space
FIFO (First In, First Out)	256 B
Compatible operating systems	Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x

Certificates

Compliance certificates	RoHS
Certification	CE, FCC

Logistics data

Products per master (outer) case	80 pc(s)
Master (outer) case width	450 mm
Master (outer) case length	525 mm
Master (outer) case height	345 mm

Packaging data

Package width	145 mm
Package depth	175 mm
Package height	32 mm
Package weight	176 g

Packaging content

Manual	Yes
Drivers included	Yes

Ports & interfaces

Connector 1	DB-9
Connector 2	USB 2.0 A
Connector 1 gender	Male
Connector 2 gender	Male
Cable length	0.2 m

Weight & dimensions

Width	41.5 mm
Depth	45 mm
Height	22 mm
Weight	90 g

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Relative humidity	5 - 95%

Questions

$94.29inc GST
