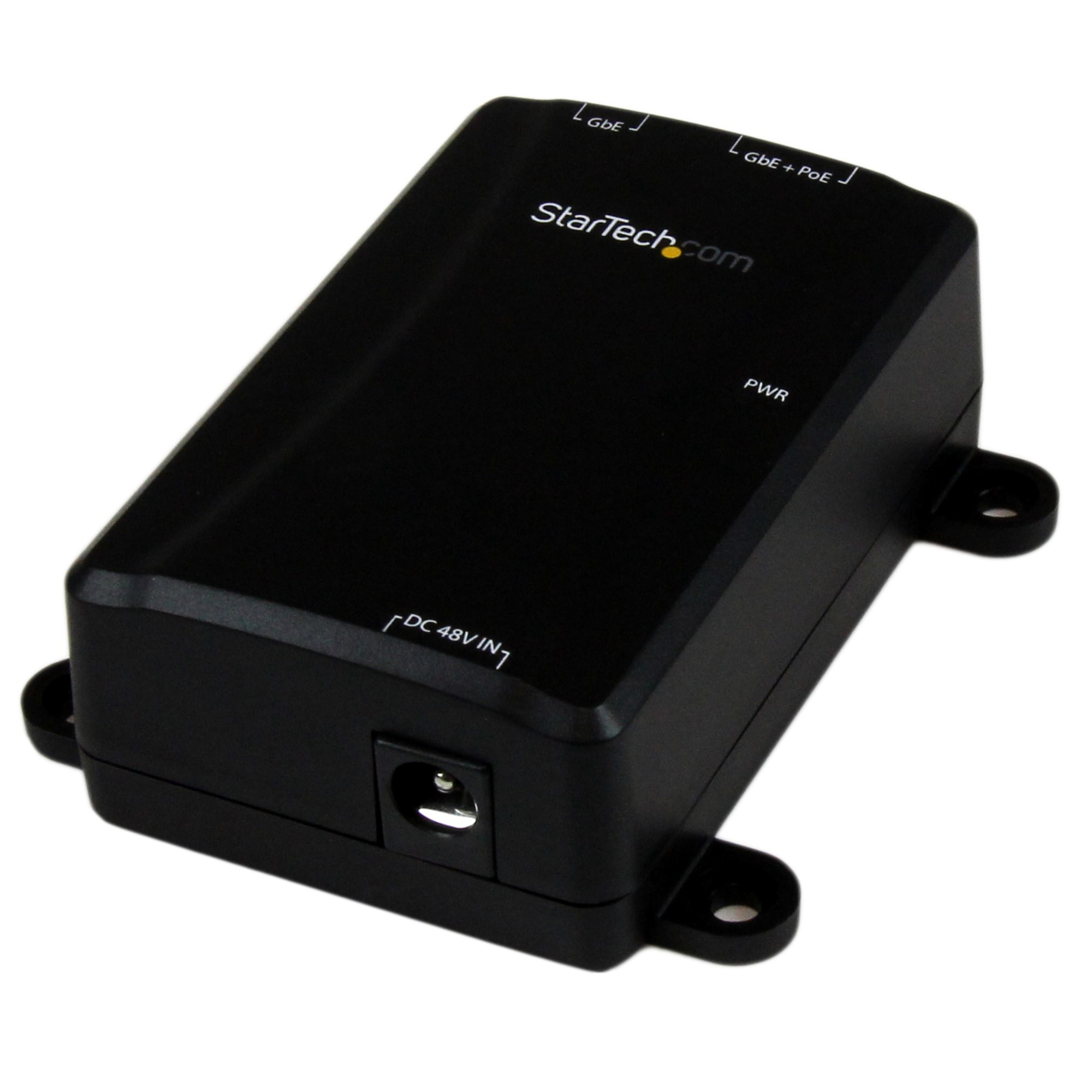

STARTECH.COM 1 PORT GIGABIT MIDSPAN - POE+ INJECTOR - 802.3AT AND 802.3AF 2 YR
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: POEINJ1GW
- MPN: POEINJ1GW
STARTECH
StarTech.com 1-Port Gigabit Midspan - PoE+ Injector - 802.3at and…
- SKU
- CNZ-DD-040607
- MPN
- POEINJ1GW
- Rating
- No reviews yet
−20%
Overview
Deliver power and data to your Power over Ethernet device using this mountable PoE+ midspan
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using standard Ethernet cable, at distances of up to 100 m (330 ft.).
The PoE midspan is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
Convenience and cost savings
This versatile PoE injector lets you connect a PoE-powered device (PD) to a non-PoE network switch, so you can avoid the expense and aggravation of replacing your existing switch with a PoE-enabled model. It supplies up to 30 watts of power, so you can easily power and access a high-power PoE-compliant device, such as an IP camera or a wireless access point (WAP), using traditional copper (RJ45) Ethernet cable. The midspan injector makes it easy to extend data and power connectivity to your PoE+ device across long distances, even in a remote location where a typical power outlet isn’t available.
Easy to set up in mixed environments
You can integrate this compact injector discreetly into a variety of environments. It features a surface-mountable housing that’s perfect for installing on walls or under a desk, but it’s also palm-sized, for use on desktop surfaces.
Plus, with plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Intelligent power allocation
Not sure which class your PoE device is? The Gigabit PoE+ injector automatically detects the power requirements of your connected PoE PD, and delivers the appropriate level of power without damaging your device.
The POEINJ1GW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Ethernet interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10,100,1000 Mbit/s
- Power over Ethernet (PoE): Yes
- Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
- Duplex system: Full
- Cable types supported: Cat5
- Product colour: Black
- Plug and Play: Yes
- Maximum operating distance: 100 m
- LED indicators: Power
- Ethernet LAN (RJ-45) ports: 2
- DC-in jack: Yes
- Power over Ethernet (PoE) voltage: 48 V
- Output power: 30 W
- Input voltage: 100 - 240 V
- Input current: 0.75 A
- Output current: 0.64 A
- Power consumption (max): 36 W
- Compliance certificates: CE, RoHS
- Operating temperature (T-T): 0 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage temperature (T-T): -20 - 85 °C
- Width: 63 mm
- Depth: 70 mm
Specifications
Power
| Power over Ethernet (PoE) voltage | 48 V |
|---|---|
| Output power | 30 W |
| Input voltage | 100 - 240 V |
| Input current | 0.75 A |
| Output current | 0.64 A |
| Power consumption (max) | 36 W |
Network
| Ethernet interface type | Gigabit Ethernet |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full |
| Cable types supported | Cat5 |
Features
| Product colour | Black |
|---|---|
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| LED indicators | Power |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 85044095 |
|---|---|
| Master (outer) case width | 400 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case height | 260 mm |
| Products per master (outer) case | 12 pc(s) |
Packaging data
| Package width | 230 mm |
|---|---|
| Package depth | 190 mm |
| Package height | 76 mm |
| Package weight | 1 kg |
Packaging content
| AC adapter included | Yes |
|---|---|
| Power cord included | Yes |
| Quick installation guide | Yes |
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 2 |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Width | 63 mm |
|---|---|
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 50 g |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 85 °C |
