Add an RS232 serial port with COM retention to your laptop or desktop computer through USB

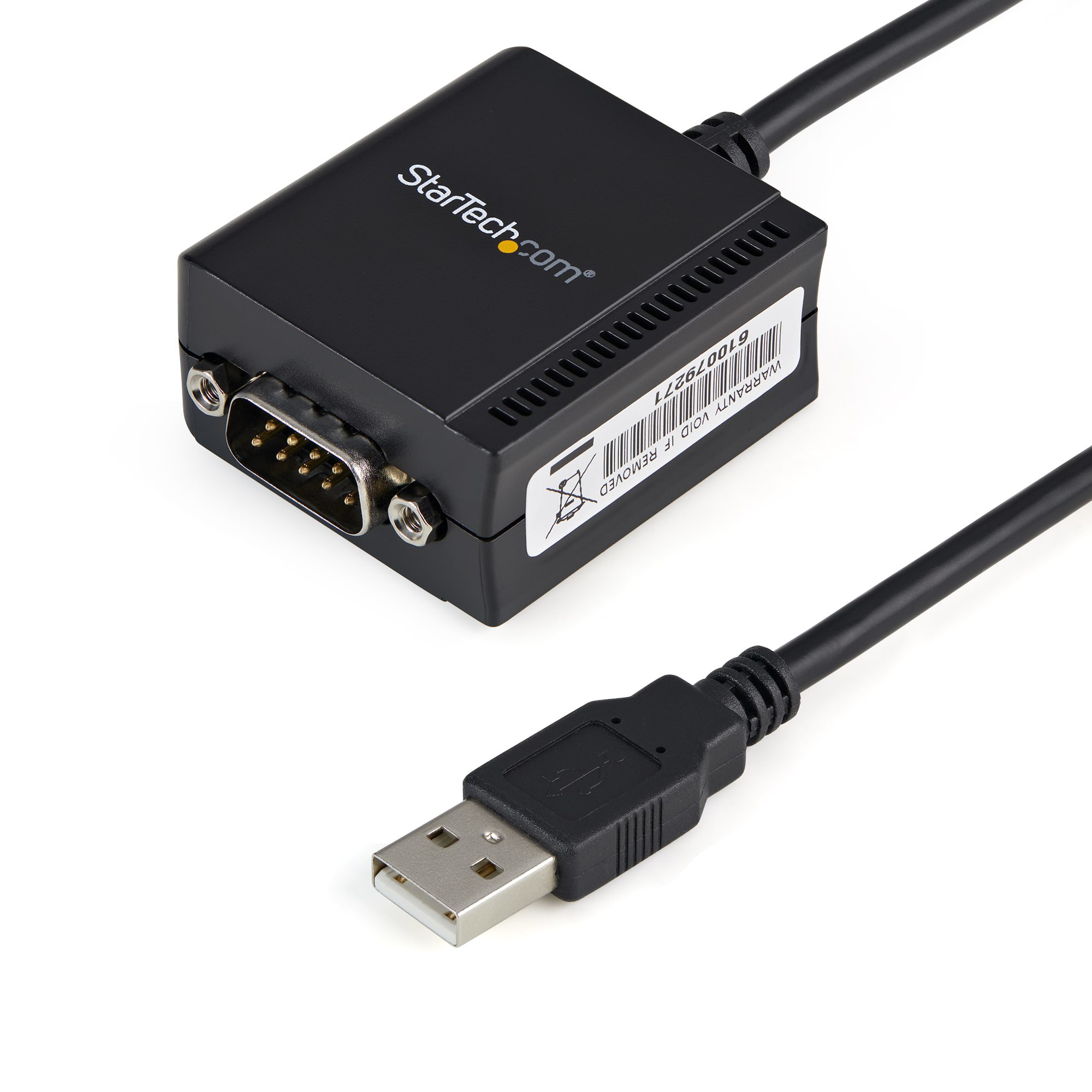

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
Connector 1: DB-9
Connector 2: USB 2.0 A
Connector 1 gender: Male
Connector 2 gender: Male
Cable length: 0.2 m
Product colour: Black
Chipset: FTDI - FT232RL
Data bits: 7, 8
Stop bits: 1, 2
Baud rate: 115.2 Kbit/s
Parity bit: Even, Mark, No, Odd, Space
FIFO (First In, First Out): 256 B
Compatible operating systems: Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C
Relative humidity: 5 - 95%
Compliance certificates: RoHS
Certification: CE, FCC
Width: 41.5 mm
Depth: 45 mm
Height: 22 mm
Weight: 90 g
Manual: Yes
Drivers included: Yes
Specifications
Performance
Product colour
Black
Chipset
FTDI - FT232RL
Data bits
7, 8
Stop bits
1, 2
Baud rate
115.2 Kbit/s
Parity bit
Even, Mark, No, Odd, Space
FIFO (First In, First Out)
256 B
Compatible operating systems
Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
macOS 10.6 to 10.15, 11.0, 12.0, 13.0
Linux Kernel 3.0.x
