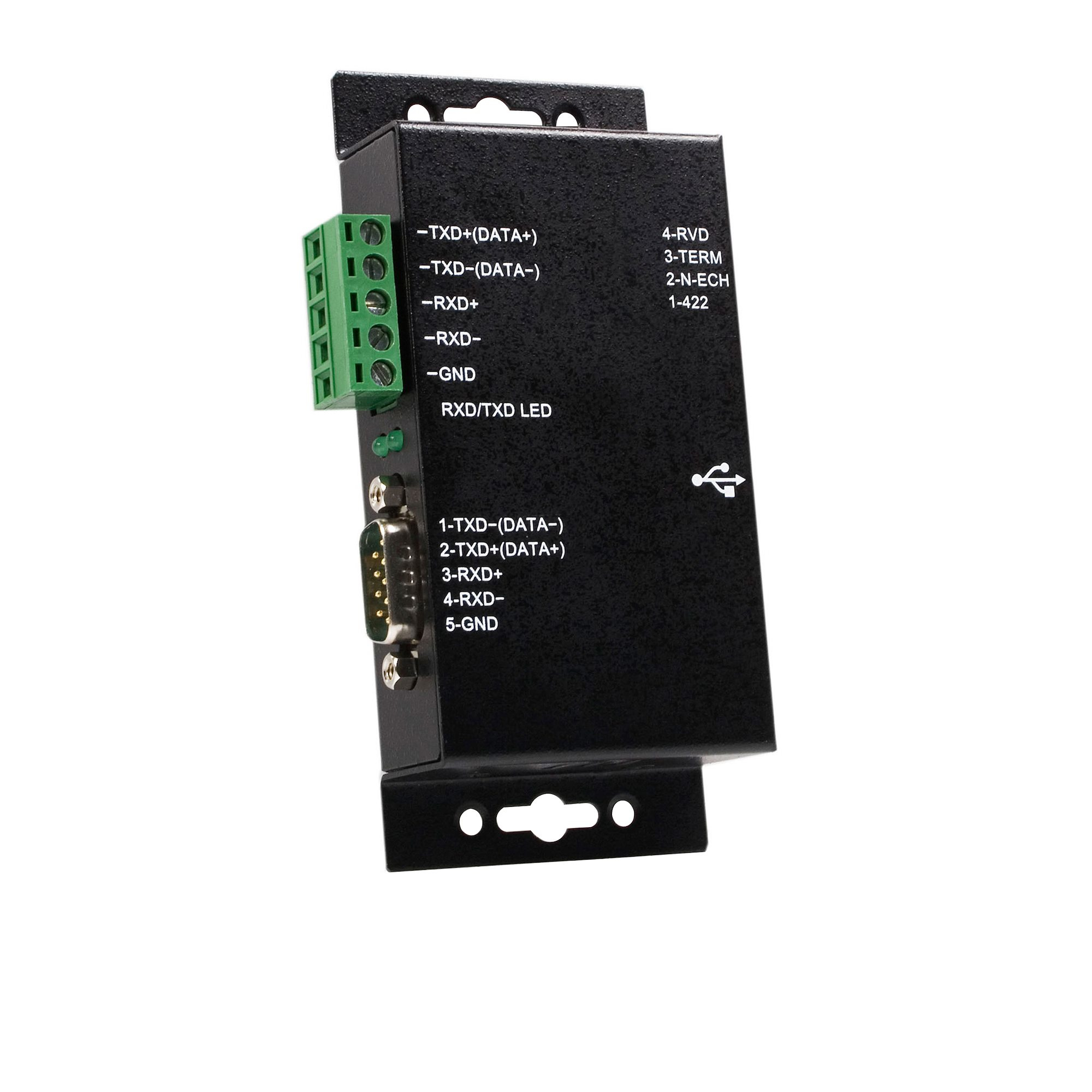

StarTech.com 1 Port USB to Serial RS422/485 Adapter
1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation
- Brand: StarTech.com
- Category: Network Cards
- SKU: 1599753
- MPN: ICUSB422IS
StarTech.com
StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial…
- SKU
- CNZ-IM-043671
- MPN
- ICUSB422IS
- Rating
- No reviews yet
−19%
Overview
Add an R422/485 serial port to your laptop or desktop computer through USB
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connector 1: USB B
- Connector 2: RS-422/485
- Connector 1 gender: Male
- Connector 2 gender: Female
- Cable length: 1.8 m
- Product colour: Black
- Data transfer rate: 0.00088 Gbit/s
- Compatible operating systems: Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+
- Input voltage: 5 V
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -20 - 85 °C
- Relative humidity: 5 - 95%
- Width: 64 mm
- Depth: 118 mm
- Height: 23 mm
- Weight: 180 g
- Quantity per pack: 1 pc(s)
- Cables included: USB
- Package width: 45 mm
- Package depth: 230 mm
- Package height: 160 mm
- Package weight: 390 g
- Products per master (outer) case: 50 pc(s)
- Master (outer) case width: 502 mm
Specifications
Power
| Input voltage | 5 V |
|---|
Performance
| Product colour | Black |
|---|---|
| Data transfer rate | 0.00088 Gbit/s |
| Compatible operating systems | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x+ |
Logistics data
| Products per master (outer) case | 50 pc(s) |
|---|---|
| Master (outer) case width | 502 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 511 mm |
Packaging data
| Package width | 45 mm |
|---|---|
| Package depth | 230 mm |
| Package height | 160 mm |
| Package weight | 390 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| Cables included | USB |
Ports & interfaces
| Connector 1 | USB B |
|---|---|
| Connector 2 | RS-422/485 |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Cable length | 1.8 m |
Weight & dimensions
| Width | 64 mm |
|---|---|
| Depth | 118 mm |
| Height | 23 mm |
| Weight | 180 g |
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Relative humidity | 5 - 95% |
Questions
$315.09inc GST
