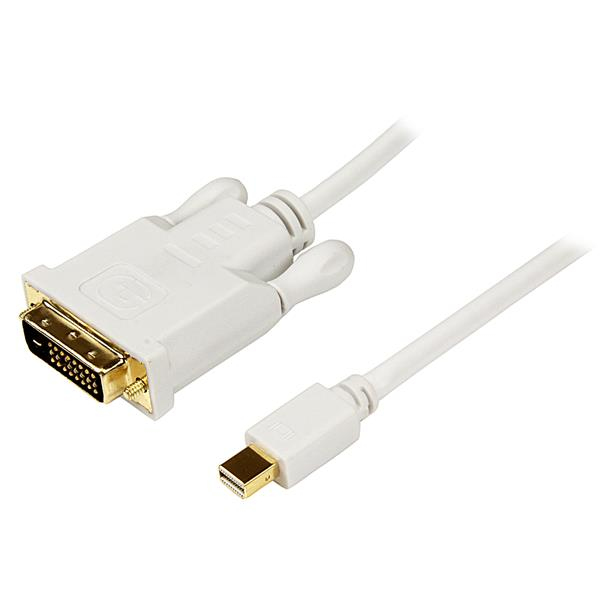

StarTech.com 10ft Mini DisplayPort MDP to DVI Adapter
10 ft Mini DisplayPort to DVI Adapter Converter Cable - 10 foot Mini DP to DVI Video Adapter Converter - MDP to DVI Cable for Mac or PC 1920x1200 - White
- Brand: StarTech.com
- Category: A/V Cables & Adapters
- SKU: 2467440
- MPN: MDP2DVIMM10W
StarTech.com
StarTech.com 10 ft Mini DisplayPort to DVI Adapter Converter Cable –…
- SKU
- CNZ-IM-021787
- MPN
- MDP2DVIMM10W
- Rating
- No reviews yet
Overview
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC over a longer 10 foot distance – White
The MDP2DVIMM10W Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10W is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable
The MDP2DVIMM10W Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10W is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 3.05 m
- Connector 1: mini DisplayPort
- Connector 2: DVI-D
- Connector 1 gender: Male
- Connector 2 gender: Male
- Maximum resolution: 1920 x 1200 pixels
- Supported video modes: 1080p
- Product colour: White
- Chipset: NXP - 3361
- Plug and Play: Yes
- Converter type: Passive video converter
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 40 - 85%
- Compliance certificates: RoHS
- Certification: CE, FCC, REACH
- Weight: 154 g
- Width: 37 mm
- Depth: 3000 mm
- Height: 15 mm
- Package width: 200 mm
- Package depth: 220 mm
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 3.05 m |
| Connector 1 | mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | White |
| Chipset | NXP - 3361 |
| Plug and Play | Yes |
| Converter type | Passive video converter |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC, REACH |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 164 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 154 g |
|---|---|
| Width | 37 mm |
| Depth | 3000 mm |
| Height | 15 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
