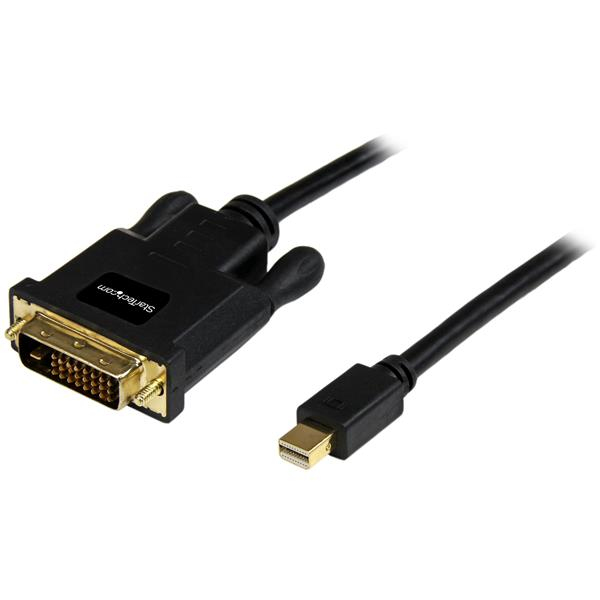

StarTech.com 10ft Mini DisplayPort to DVI
10 ft Mini DisplayPort to DVI Adapter Converter Cable - 10 foot Mini DP to DVI Video Adapter Converter - MDP to DVI Cable for Mac or PC 1920x1200 - Black
- Brand: StarTech.com
- Category: Computer Cables & Adapters
- SKU: 2465238
- MPN: MDP2DVIMM10B
StarTech.com
StarTech.com 10ft (3m) Mini DisplayPort to DVI Cable - Mini DP to…
- SKU
- CNZ-IM-021710
- MPN
- MDP2DVIMM10B
- Rating
- No reviews yet
Overview
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a longer 10 foot distance – Black
The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
The MDP2DVIMM10B Mini DisplayPort® to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 10 feet (3 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM10B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 3 m
- Connector 1: mini DisplayPort
- Connector 2: DVI-D
- Connector 1 gender: Male
- Connector 2 gender: Male
- DisplayPort version: 1.2
- Dual Link DVI: No
- Maximum resolution: 1920 x 1200 pixels
- Supported video modes: 1080p
- Product colour: Black
- Chipset: NXP - 3361
- Plug and Play: Yes
- Converter type: Passive
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): 0 - 70 °C
- Operating relative humidity (H-H): 40 - 85%
- Compliance certificates: RoHS, CE
- Weight: 140 g
- Width: 38 mm
- Depth: 3000 mm
- Height: 15 mm
- Package width: 160 mm
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 3 m |
| Connector 1 | mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Dual Link DVI | No |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | Black |
| Chipset | NXP - 3361 |
| Plug and Play | Yes |
| Converter type | Passive |
Certificates
| Compliance certificates | RoHS, CE |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 100 pc(s) |
Packaging data
| Package width | 160 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 162 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 140 g |
|---|---|
| Width | 38 mm |
| Depth | 3000 mm |
| Height | 15 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
