STARTECH.COM 10M (32FT) ACTIVE DISPLAYPORT CABLE W/LATCHES, DP 4K X 2K 2 YR
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: DISPL10MA
- MPN: DISPL10MA
STARTECH
StarTech.com 32ft (10m) Active DisplayPort Cable - 4K Ultra HD…
- SKU
- CNZ-DD-014003
- MPN
- DISPL10MA
- Rating
- No reviews yet
Overview

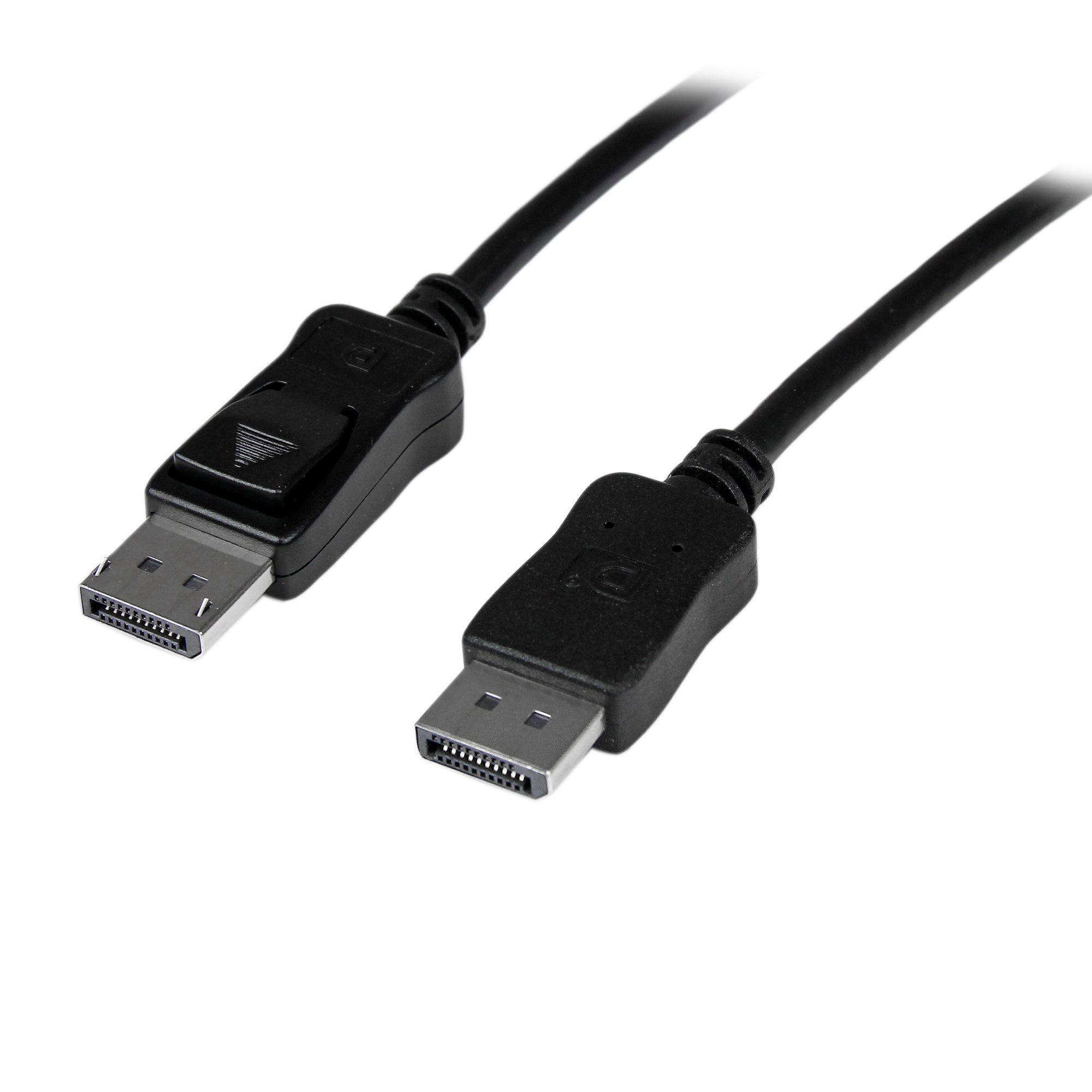

Connect DisplayPort®-equipped devices up to 10m away with no signal loss
The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
The DISPL10MA 10m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 30 feet (10m) between your DisplayPort-enabled devices - almost double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 10m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to WQXGA (2560×1600) and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 10-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel
- DisplayPort version: 1.2
- Maximum resolution: 2560 x 1600 pixels
- HDCP: Yes
- DisplayPort Content Protection (DPCP): Yes
- Cable length: 10 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Latching connectors: Yes
- Product colour: Black
- Cable rating: CMG (CM)
- Magnetically shielded: Yes
- Jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 32
- Bandwidth: 10800 MB/s
- Multi-Stream Transport (MST): Yes
- Number of conductors: 19
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Compliance certificates: CE, RoHS
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 2560 x 1600 pixels |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Cable length | 10 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Magnetically shielded | Yes |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 10800 MB/s |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 334 mm |
| Master (outer) case length | 502 mm |
| Master (outer) case height | 239 mm |
| Products per master (outer) case | 20 pc(s) |
Packaging data
| Package width | 255 mm |
|---|---|
| Package depth | 330 mm |
| Package height | 40 mm |
| Package weight | 466 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 452 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
