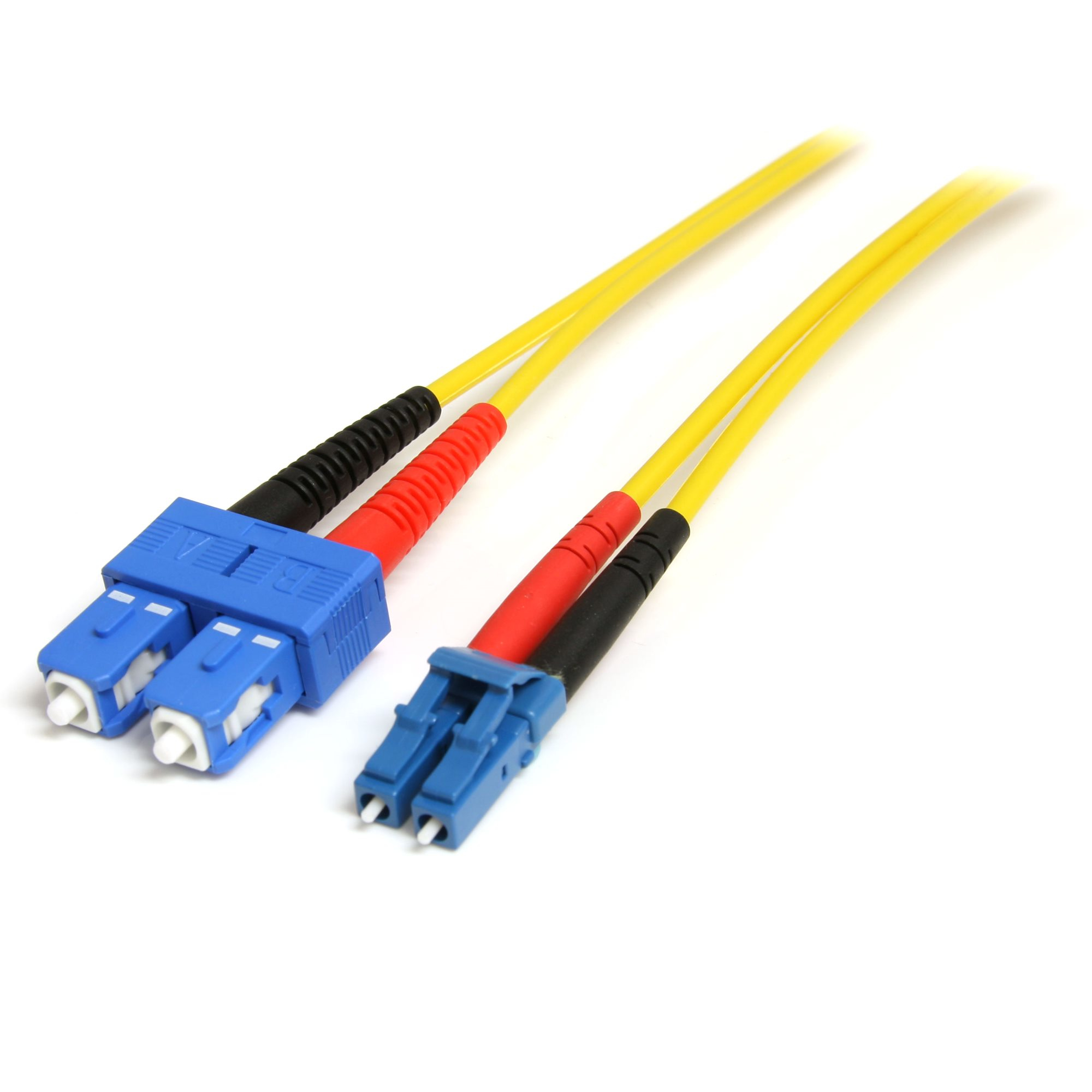

StarTech.com 10m SM Duplex Fiber Patch Cable LC to SC
10m Single Mode Duplex Fiber Patch Cable - LC to SC OS1 Single Mode 9/125 Duplex LSZH Fiber Patch Cord - Yellow 10 meter
- Brand: StarTech.com
- Category: Network Cables
- SKU: 2650621
- MPN: SMFIBLCSC10
StarTech.com
StarTech.com 10m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH…
- SKU
- CNZ-IM-021849
- MPN
- SMFIBLCSC10
- Rating
- No reviews yet
Overview
Connect fiber network devices for high-speed transfers with LSZH rated cable
The SMFIBLCSC10 10m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
The SMFIBLCSC10 10m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
Key features
- Cable length: 10 m
- Fibre optic type: OS1
- Connector 1: LC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Yellow
- Full duplex: Yes
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Data transfer rate: 100 Gbit/s
- Jacket material: Low smoke zero halogen (LSZH)
- Compliance certificates: RoHS, CE
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
- Weight: 134 g
- Package width: 200 mm
- Package depth: 220 mm
- Package height: 28 mm
- Package weight: 143 g
- Quantity per pack: 1 pc(s)
- Master (outer) case width: 410 mm
- Harmonized System (HS) code: 85447000
Specifications
Features
| Cable length | 10 m |
|---|---|
| Fibre optic type | OS1 |
| Connector 1 | LC |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
Certificates
| Compliance certificates | RoHS, CE |
|---|
Logistics data
| Master (outer) case width | 410 mm |
|---|---|
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 450 mm |
| Products per master (outer) case | 80 pc(s) |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 28 mm |
| Package weight | 143 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 134 g |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
