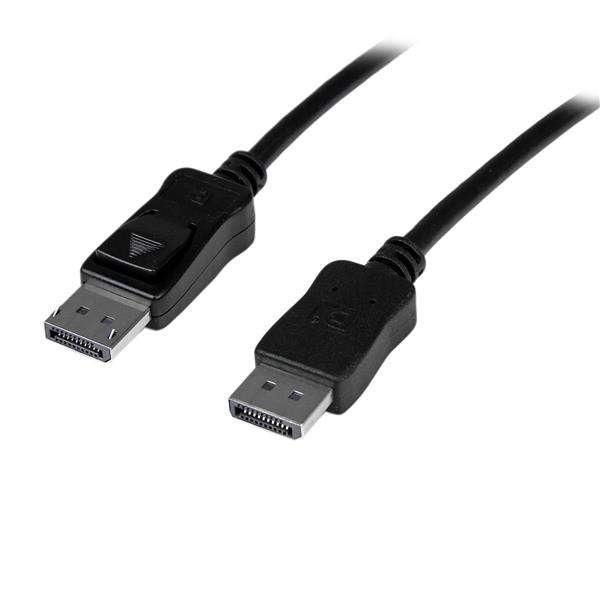

StarTech.com 15m Active DisplayPort Cable - M/M
15m Active DisplayPort Cable - DisplayPort to DisplayPort - Active DP Cable - Male to Male - 15 meter Long Displayport Cable - 2560x1600
- Brand: StarTech.com
- Category: A/V Cables & Adapters
- SKU: 2467439
- MPN: DISPL15MA
StarTech.com
StarTech.com 50ft (15m) Active DisplayPort Cable - 4K Ultra HD…
- SKU
- CNZ-IM-021807
- MPN
- DISPL15MA
- Rating
- No reviews yet
Overview
Connect DisplayPort®-equipped devices up to 15m away with no signal loss
The DISPL15MA 15m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 50 feet (15m) between your DisplayPort-enabled devices - more than double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 15m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to 4K x 2K 30Hz and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 15-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
The DISPL15MA 15m Active DisplayPort® Cable features a built-in active signal booster for a connection distance of up to 50 feet (15m) between your DisplayPort-enabled devices - more than double the DisplayPort connection distance limitation of 16ft, with no signal loss.
This durable yet lightweight active DP cable features a thinner 32 AWG wire construction that allows for a more flexible installation with minimal clutter. Plus, the cable features built-in amplifier circuitry which actively boosts the DisplayPort signal with no external power needed.
The 15m cable offers a bandwidth of 10.8 Gbps with support for maximum resolutions up to 4K x 2K 30Hz and optional audio support. The cable is both HDCP and DPCP capable, which ensures that digitally protected content is displayed properly.
This 15-meter Active DisplayPort cable is backed by StarTech.com's 2-year Warranty.
Please Note: This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the "source" and "display" labels on the DisplayPort connectors, in order to ensure that the display device (monitor, projector etc.) and the DisplayPort source are connected properly.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel
- Maximum resolution: 3840 x 2160 pixels
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Maximum refresh rate: 60 Hz
- HDCP: Yes
- DisplayPort Content Protection (DPCP): Yes
- Cable length: 15 m
- Connector 1: DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Latching connectors: Yes
- Product colour: Black
- Cable rating: CMG (CM)
- Cable shielding: Aluminum mylar foil
- Jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 32
- Bandwidth: 10800 MB/s
- Plug and Play: Yes
- Multi-Stream Transport (MST): Yes
- Number of conductors: 19
- Operating temperature (T-T): 0 - 45 °C
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Cable length | 15 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 10800 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 332 mm |
| Master (outer) case length | 499 mm |
| Master (outer) case height | 230 mm |
| Products per master (outer) case | 16 pc(s) |
Packaging data
| Package width | 255 mm |
|---|---|
| Package depth | 330 mm |
| Package height | 46 mm |
| Package weight | 658 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 641 g |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
