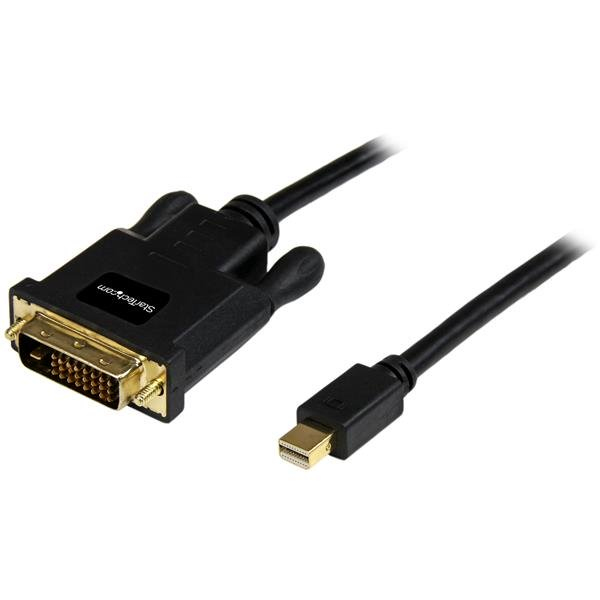

STARTECH.COM 1.8M MINI DISPLAYPORT TO DVI ADAPTER CABLE - MINI DP TO DVI-D 3 YR
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: MDP2DVIMM6B
- MPN: MDP2DVIMM6B
STARTECH
StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to…
- SKU
- CNZ-DD-031110
- MPN
- MDP2DVIMM6B
- Rating
- No reviews yet
Overview
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC® over a 6 foot distance – Black
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 1.8 m
- Connector 1: mini DisplayPort
- Connector 2: DVI-D
- Connector 1 gender: Male
- Connector 2 gender: Male
- DisplayPort version: 1.2
- Dual Link DVI: No
- Maximum resolution: 1920 x 1200 pixels
- Supported video modes: 1080p
- Product colour: Black
- Chipset: NXP - 3361
- Plug and Play: Yes
- Converter type: Passive
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 40 - 85%
- Compliance certificates: CE, RoHS
- Weight: 101.3 g
- Width: 40 mm
- Depth: 1800 mm
- Height: 15 mm
- Package width: 160 mm
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 1.8 m |
| Connector 1 | mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Dual Link DVI | No |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | Black |
| Chipset | NXP - 3361 |
| Plug and Play | Yes |
| Converter type | Passive |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 150 pc(s) |
Packaging data
| Package width | 160 mm |
|---|---|
| Package depth | 240 mm |
| Package height | 20 mm |
| Package weight | 125 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 101.3 g |
|---|---|
| Width | 40 mm |
| Depth | 1800 mm |
| Height | 15 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
