StarTech.com 1m Mini DisplayPort to DisplayPort Cable
1M (3 FT) WHITE MINI DISPLAYPORT TO DISPLAYPORT CABLE - MINI DP TO DP - 1X MINI DISPLAY PORT (M) 1X DISPLAY PORT (M) - 3 FEET
- Brand: StarTech.com
- Category: Video Cables
- SKU: 2023890
- MPN: MDP2DPMM1MW
StarTech.com
StarTech.com 1m (3ft) Mini DisplayPort to DisplayPort 1.2 Cable - 4K…
- SKU
- CNZ-IM-043120
- MPN
- MDP2DPMM1MW
- Rating
- No reviews yet
Overview
Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

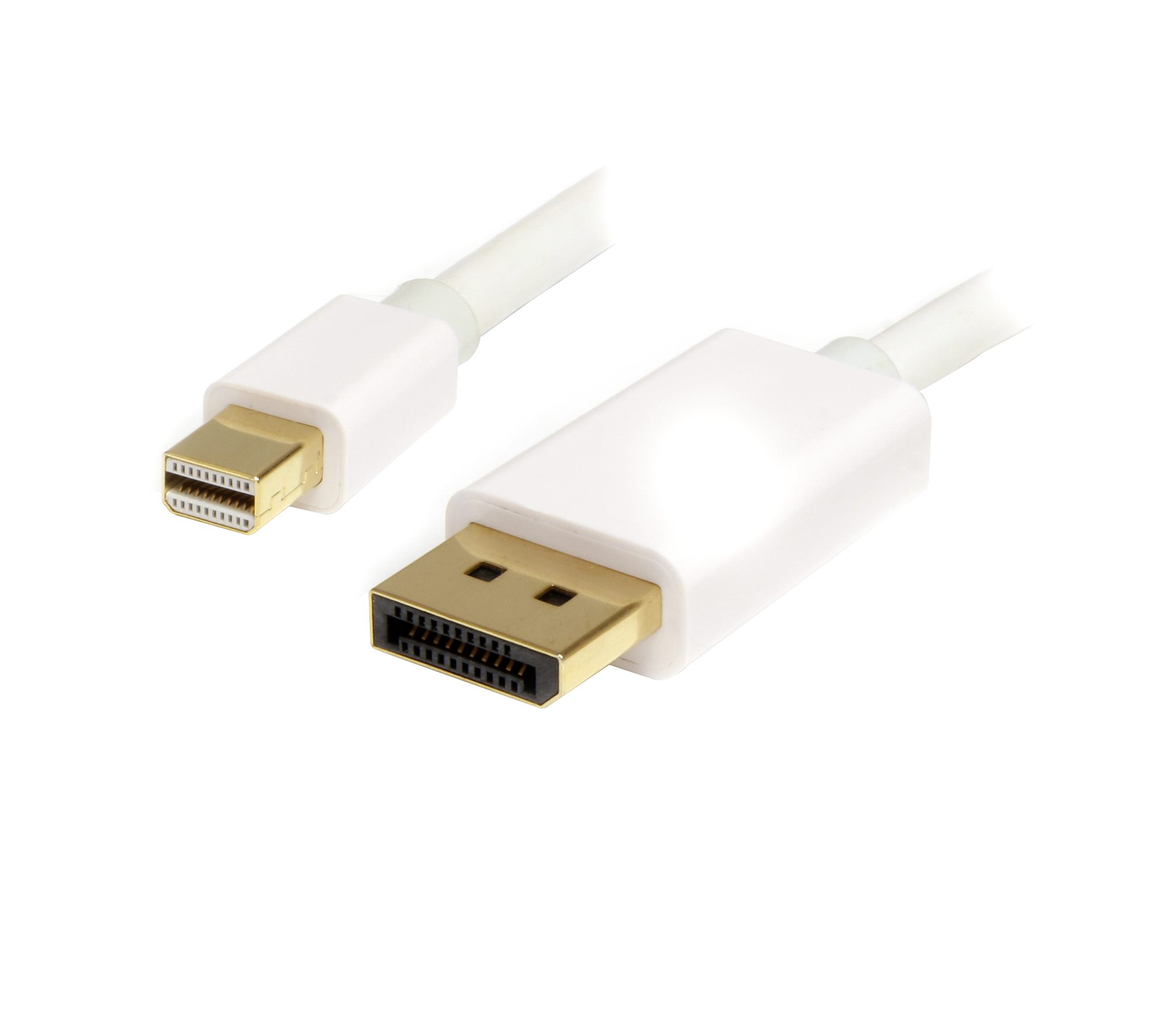

The MDP2DPMM1MW 1m White Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM1MW is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
The MDP2DPMM1MW 1m White Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM1MW is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Gold
- DisplayPort version: 1.2
- Maximum resolution: 3840 x 2400 pixels
- Supported graphics resolutions: 3840 x 2400, 2560 x 1600 (WQXGA)
- Maximum refresh rate: 120 Hz
- Cable length: 1 m
- Connector 1: DisplayPort
- Connector 2: mini DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: White
- Cable rating: CMG (CM)
- Cable shielding: Aluminum mylar foil
- Jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 32
- Bandwidth: 21600 MB/s
- Plug and Play: Yes
- Multi-Stream Transport (MST): Yes
- Number of conductors: 19
- Compliance certificates: RoHS, CE
- Weight: 40 g
- Package width: 192 mm
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum refresh rate | 120 Hz |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | White |
| Cable rating | CMG (CM) |
| Cable shielding | Aluminum mylar foil |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 21600 MB/s |
| Plug and Play | Yes |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
Certificates
| Compliance certificates | RoHS, CE |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 372 mm |
| Master (outer) case length | 411 mm |
| Master (outer) case height | 273 mm |
| Products per master (outer) case | 150 pc(s) |
Packaging data
| Package width | 192 mm |
|---|---|
| Package depth | 143 mm |
| Package height | 20 mm |
| Package weight | 50 g |
Weight & dimensions
| Weight | 40 g |
|---|
