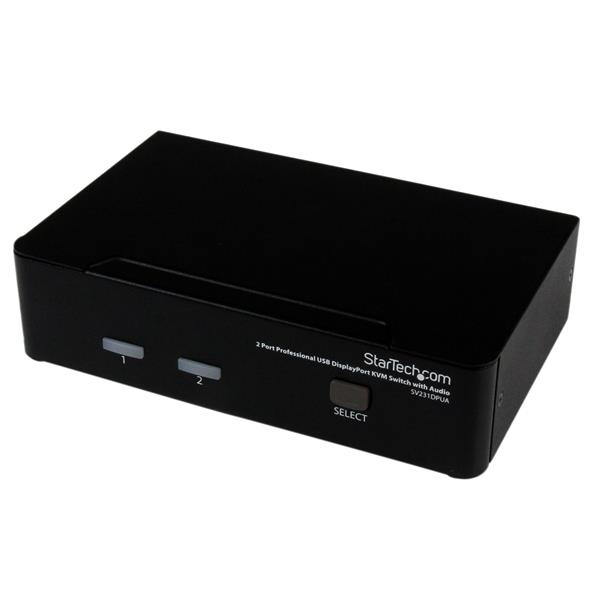

STARTECH.COM 2 PORT PROFESSIONAL USB DISPLAYPORT KVM SWITCH WITH AUDIO, 3 YR
Servers & Storage > Servers
- Brand: STARTECH
- Category: Servers
- SKU: SV231DPUA
- MPN: SV231DPUA
STARTECH
StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio
- SKU
- CNZ-DD-042403
- MPN
- SV231DPUA
- Rating
- No reviews yet
−24%
Overview
Control two computers from a single console, with high-resolution DisplayPort video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple MacBook connectivity
- Support for both analog and digital audio sources provides the versatility to use either connection depending on preference/availability
- USB peripheral sharing eliminates the expense of duplicate devices (printers, scanners, etc.)
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 2
- Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- Console USB ports quantity: 4
- USB hub: Yes
- USB connector type: USB Type-A
- Audio connections: Yes
- Headphone outputs: 3
- Number of microphone inputs: 3
- DC-in jack: Yes
- Ethernet LAN: No
- HD type: 4K Ultra HD
- Maximum resolution: 3840 x 2400 pixels
- DDC2B support: Yes
- Hot-Plug support: Yes
- Plug and Play: Yes
- Daisy chain: No
- Audio channels: 7.1
- Rack mounting: No
- Product colour: Black
- Housing material: Steel
Specifications
Power
| Input voltage | 110 - 240 V |
|---|---|
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (typical) | 24 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Certification | CE, UL, FCC, REACH |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
Network
| Ethernet LAN | No |
|---|
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2400 pixels |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Audio channels | 7.1 |
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|
Other features
| Audio support | No |
|---|---|
| IP control | No |
Packaging data
| Package width | 100 mm |
|---|---|
| Package depth | 250 mm |
| Package height | 181 mm |
| Package weight | 1.3 kg |
Sustainability
| Compliance certificates | RoHS |
|---|
Packaging content
| Manual | Yes |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 220 mm |
|---|---|
| Depth | 130 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
