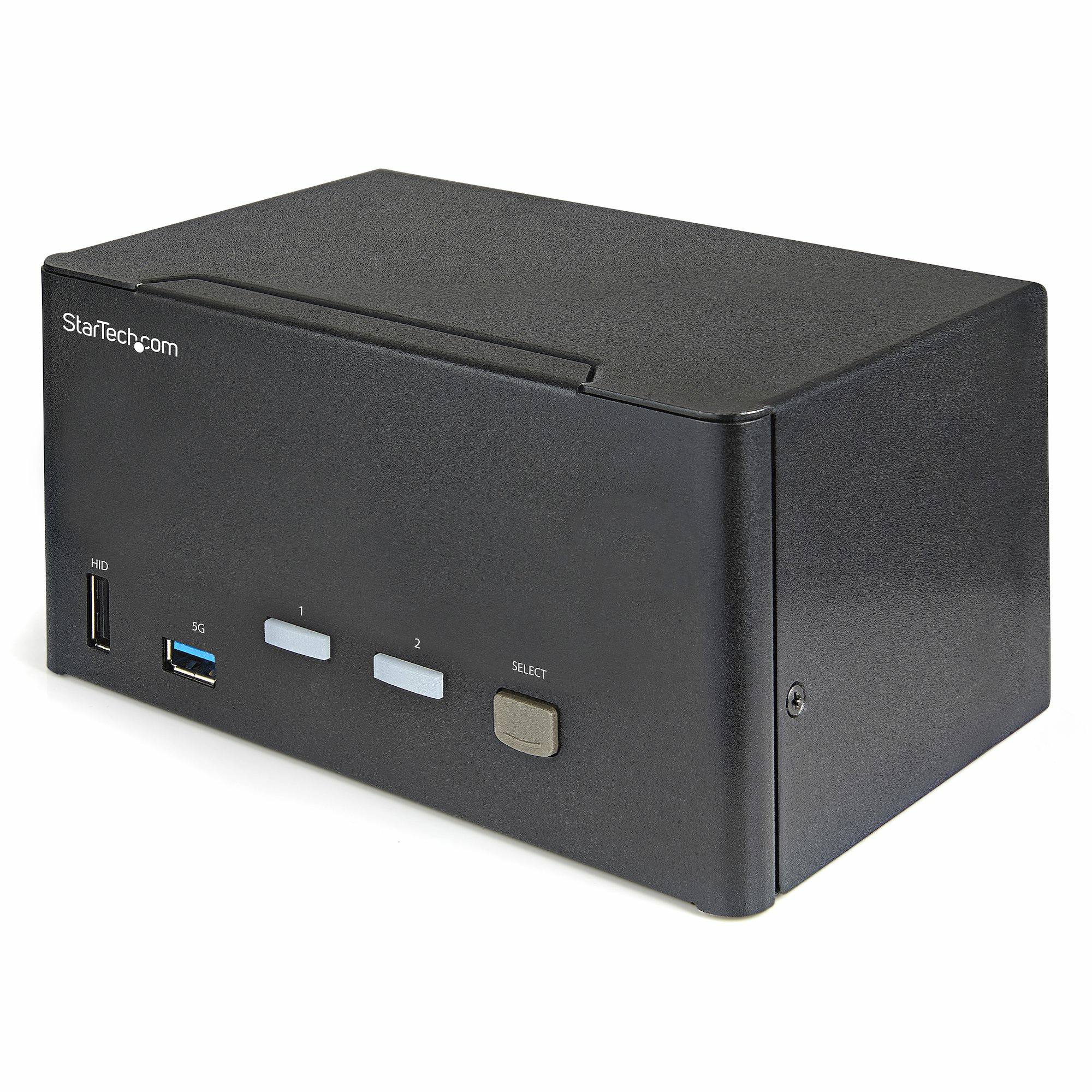

STARTECH.COM 2 PORT TRIPLE MONITOR DISPLAYPORT KVM SWITCH 4K 60HZ HDR - TAA 2 YR
Networking > KVM
- Brand: STARTECH
- Category: Peripherals
- SKU: SV231TDPU34K
- MPN: SV231TDPU34K
STARTECH
StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch - 4K 60Hz…
- SKU
- CNZ-DD-042406
- MPN
- SV231TDPU34K
- Rating
- No reviews yet
−23%
Overview
KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate
The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Number of computers controlled: 2
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- DisplayPorts quantity: 9
- DisplayPort version: 1.2
- Console ports: 3.5mm headphone, DisplayPort, USB A
- Console USB ports quantity: 4
- USB hub: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
- Audio connections: Yes
- Headphone outputs: 3
- DC-in jack: Yes
- HD type: 4K Ultra HD
- Maximum resolution: 3840 x 2160 pixels
- Video bandwidth: 60 Hz
- Scan interval: 3,8,15,30 s
- HDCP: Yes
- Daisy chain: No
- Audio channels: 5.1
- Number of displays supported: 3
- Product colour: Black
- Housing material: Steel
- LED indicators: Yes
Specifications
Power
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
Design
| Product colour | Black |
|---|---|
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 156000 h |
| Certification | CE, RoHS, FCC |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Daisy chain | No |
| Audio channels | 5.1 |
| Number of displays supported | 3 |
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|---|
| Master (outer) case width | 397 mm |
| Master (outer) case length | 317 mm |
| Master (outer) case height | 280 mm |
| Products per master (outer) case | 6 pc(s) |
Other features
| IP control | No |
|---|
Packaging data
| Package width | 238 mm |
|---|---|
| Package depth | 189 mm |
| Package height | 91 mm |
Packaging content
| Quick installation guide | Yes |
|---|---|
| Rubber feet | Yes |
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 9 |
| DisplayPort version | 1.2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 160 mm |
|---|---|
| Depth | 100 mm |
| Height | 98 mm |
| Weight | 850 g |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
