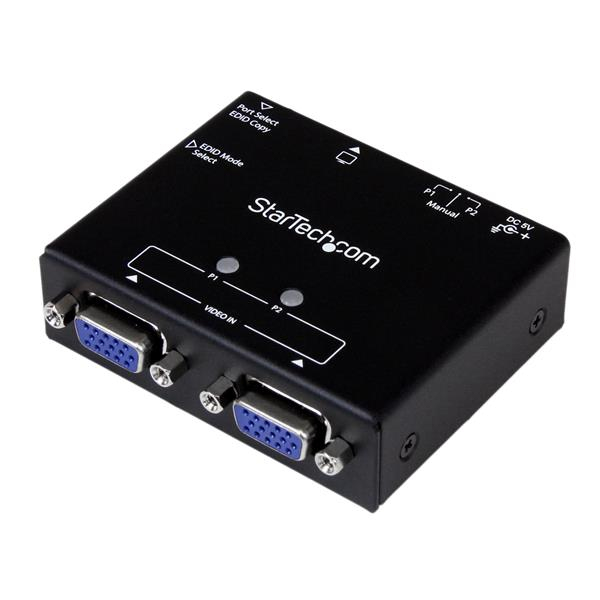

StarTech.com 2-Port VGA Auto Switch Box with Priority Switching and…

SKU: CNZ-IM-021750
MPN: ST122VGA
Rating: No reviews yet

StarTech.com 2-Port VGA Auto Switch Box w/ Switching — StarTech.com

Overview

Share a VGA monitor/projector between 2 VGA sources, with automatic/priority switching and EDID Emulation

The ST122VGA 2-Port VGA Auto Switcher lets you share a display between two computers and automatically switch to the active source device using configurable priority switching. When the port you have selected as the primary input is turned off, the device automatically switches to the secondary input.

For maximum control and versatility, the ST122VGA also offers manual switch control with an easy-to-use button that allows you to toggle between video sources.

For a convenient setup the switcher can be powered using the included power adapter or the USB power cable, and features built-in EDID emulation ensuring maximum compatibility with your display or projector and support for resolutions up to 1920x1200/1080p.

The ST122VGA includes mounting hardware for a tidy and professional installation, and is backed by a 2-year StarTech.com warranty, and free lifetime technical support.

The StarTech.com Advantage

- Hassle-free operation, with automatic switching
- Tidy and professional installation, with included mounting hardware

Key features

Video port type: VGA
VGA (D-Sub) ports quantity: 2
Video in: VGA
Video out: 2x VGA
DC-in jack: Yes
Material: Aluminium
Product colour: Black
Extended display identification data (EDID): Yes
Supported graphics resolutions: 1366 x 768, 1600 x 900, 1920 x 1440, 2048 x 1152, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes: 1080p
LED indicators: Yes
Maximum resolution: 2048 x 1152 pixels
External power adapter: Yes
AC input voltage: 100 - 240 V
AC adapter input current: 0.4 A
AC adapter output voltage: 5 V
AC adapter output current: 2 A
Power consumption (typical): 10 W
Certification: CE, FCC, TAA, REACH
Width: 59 mm
Depth: 74 mm
Height: 21 mm
Weight: 170 g
Length: 74 mm

At a glance

AC input voltage	100 - 240 V
AC adapter input current	0.4 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (typical)	10 W
Material	Aluminium
Product colour	Black
Extended display identification data (EDID)	Yes

All 37 specifications

Specifications

Power

AC input voltage	100 - 240 V
AC adapter input current	0.4 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (typical)	10 W

Features

Material	Aluminium
Product colour	Black
Extended display identification data (EDID)	Yes
Supported graphics resolutions	1366 x 768, 1600 x 900, 1920 x 1440, 2048 x 1152, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	1080p
LED indicators	Yes
Maximum resolution	2048 x 1152 pixels
External power adapter	Yes

Certificates

Certification	CE, FCC, TAA, REACH

Logistics data

Harmonized System (HS) code	85176990

Packaging data

Package width	170 mm
Package depth	145 mm
Package height	66 mm
Package weight	469 g

Packaging content

Quantity per pack	1 pc(s)
Manual	Yes
Cables included	USB
Plug adapter type	NA, EU, UK, ANZ

Technical details

Compliance certificates	RoHS

Ports & interfaces

Video port type	VGA
VGA (D-Sub) ports quantity	2
Video in	VGA
Video out	2x VGA
DC-in jack	Yes

Weight & dimensions

Width	59 mm
Depth	74 mm
Height	21 mm
Weight	170 g
Length	74 mm

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

StarTech.com 2-Port VGA Auto Switch Box w/ Switching
