STARTECH.COM 3 PORT PCI EXPRESS USB 3.0 CARD + GIGABIT ETHERNET 2 YR

Peripherals & Accessories > Chargers & Power Adapters

  • Brand: STARTECH
  • Category: Peripherals
  • SKU: PEXUSB3S3GE
  • MPN: PEXUSB3S3GE
STARTECH

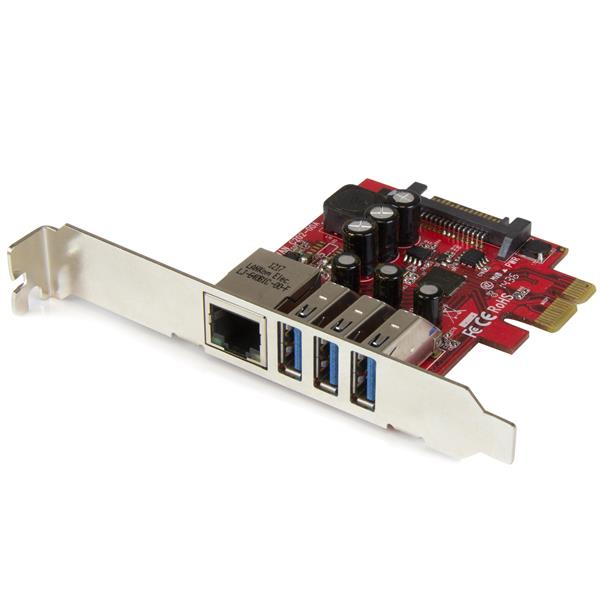

StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet

SKU
CNZ-DD-040408
MPN
PEXUSB3S3GE

Overview

This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution.

By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.

Combo-card convenience and cost-savings
If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC.

This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.

Flexible install options and legacy device support
You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases.

The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.

Gigabit connectivity and network management
Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi® is unavailable or unreliable.

Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.

Effective USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Key features

  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Ethernet
  • Ethernet LAN (RJ-45) ports: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 3
  • USB version: 3.2 Gen 1 (3.1 Gen 1)
  • PCI version: 2.0
  • PCI Card form factor: Full-height (low-profile)
  • Maximum data transfer rate: 5000 Mbit/s
  • Networking standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Ethernet LAN: Yes
  • Ethernet LAN data rates: 10,100,1000 Mbit/s
  • Cabling technology: 10/100/1000BaseT(X)
  • Wake-on-LAN ready: Yes
  • Auto MDIX IEEE: Yes
  • Full duplex: Yes
  • Jumbo frames support: Yes
  • Auto-negotiation: Yes
  • Jumbo frames: 9000
  • VLAN tagging: Yes
  • Product colour: Metallic, Red
  • Internal: Yes
  • Chipset: Renesas / NEC - µPD720201, Realtek - RTL8153
  • LED indicators: Activity, Link

Specifications

Design

Product colourMetallic, Red
InternalYes
ChipsetRenesas / NEC - µPD720201, Realtek - RTL8153
LED indicatorsActivity, Link
Mean time between failures (MTBF)1920042 h
CertificationCE, FCC

Network

Maximum data transfer rate5000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Full duplexYes
Jumbo frames supportYes
Auto-negotiationYes
Jumbo frames9000
VLAN taggingYes

Logistics data

Harmonized System (HS) code85176990

Other features

Flow control supportYes
USB data transfer rates5000 Mbit/s
UASP supportYes

Packaging data

Drivers includedYes
Quantity per pack1 pc(s)
Package width144 mm
Package depth176 mm
Package height33 mm
Package weight150 g

Packaging content

Mounting brackets includedYes
ManualYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity3
USB version3.2 Gen 1 (3.1 Gen 1)
PCI version2.0
PCI Card form factorFull-height (low-profile)

System requirements

Windows operating systems supportedWindows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012

Weight & dimensions

Width18 mm
Depth77 mm
Height120 mm
Weight60 g

Operational conditions

Operating temperature (T-T)5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)20 - 80%

Questions

$123.04inc GST
