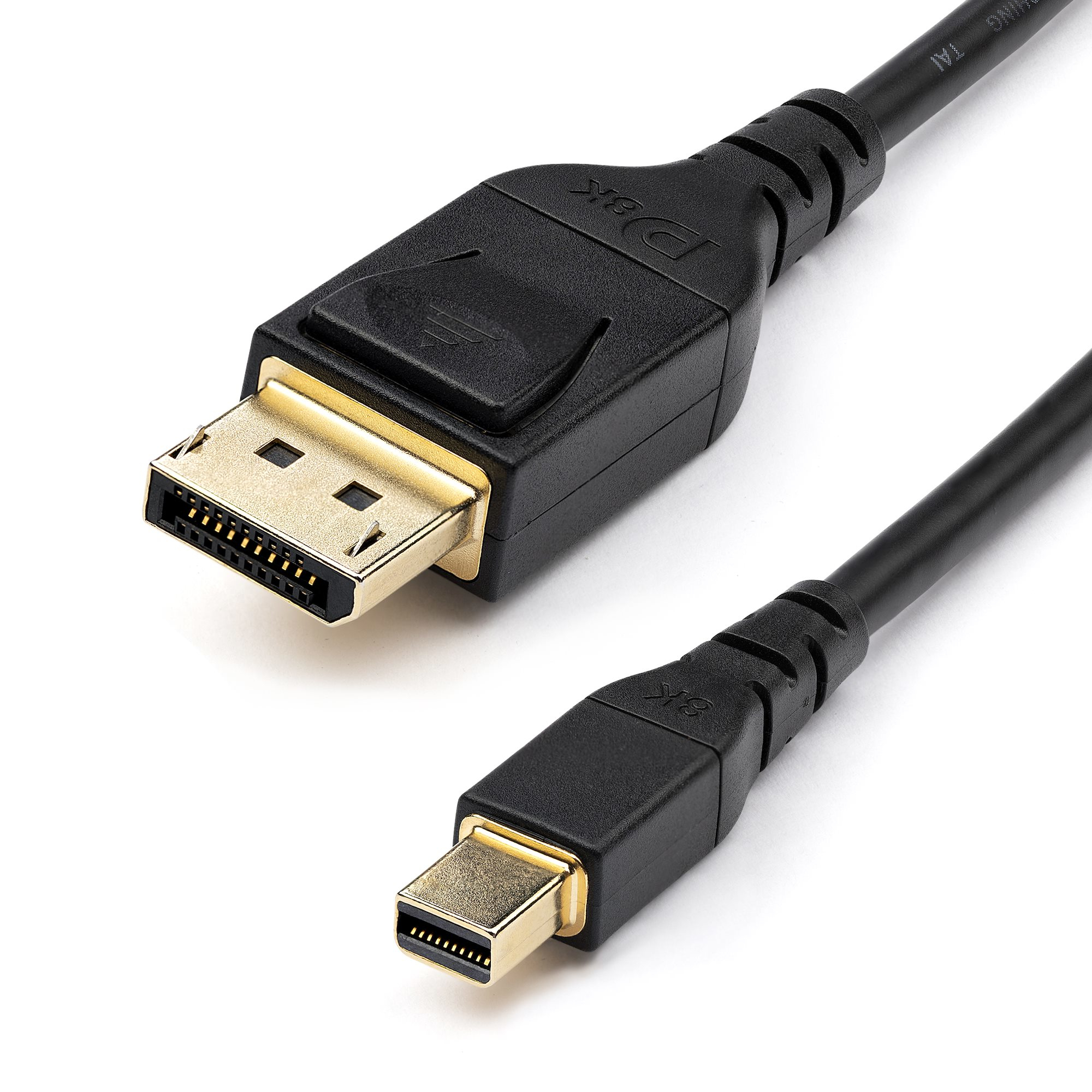

StarTech.com 3ft 8K Mini DP to DisplayPort 1.4 Cable

3ft (1m) VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable - 8K 60Hz HBR3 HDR - Super UHD mDP to DP 1.4 Cord - Slim (34 AWG) Ultra HD 4K 120Hz - Monitor/Video Cable (DP14MDPMM1MB)

  • Brand: StarTech.com
  • Category: Video Cables
  • SKU: 5243679
  • MPN: DP14MDPMM1MB
StarTech.com

StarTech.com 3ft (1m) VESA Certified Mini DisplayPort to DisplayPort…

SKU
CNZ-IM-042991
MPN
DP14MDPMM1MB

Overview

"mDP to DP Cable | DP 1.4 | 8K@60Hz | VESA® Certified | Lifetime Warranty

This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.

Astonishing Picture Quality

This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:

Multi-Stream Transport (MST) for daisy chaining multiple monitors.

Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.

HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.

Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.

Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.

Ultimate Compatibility

This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:

Radeon VII, SSG, WX x100, Pro and FirePro series.

Nvidia Quadro P series.

Built to Last

This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.

Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection.

The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- mDP to DisplayPort 1.4 CABLE: 3.3ft (1m) VESA Certified with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) w/ DSC, 4K 120Hz (3840x2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified Monitors
- RELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnection
- DURABLE: PVC jacket of this slim (outer diameter: 4.5mm) video cable (34 AWG) absorbs stress of frequent bends with strain relief protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnish"

Key features

  • Connector 1 form factor: Straight
  • Connector 2 form factor: Straight
  • Connector contacts plating: Gold
  • DisplayPort version: 1.4
  • Maximum resolution: 7680 x 4320 pixels
  • Maximum refresh rate: 120 Hz
  • HDCP: Yes
  • Cable length: 1 m
  • Connector 1: Mini DisplayPort
  • Connector 2: DisplayPort
  • Connector 1 gender: Male
  • Connector 2 gender: Male
  • Product colour: Black
  • Cable shielding: Aluminum mylar foil
  • Jacket material: Polyvinyl chloride (PVC)
  • AWG wire size: 34
  • High Dynamic Range (HDR) supported: Yes
  • HBR3 support: Yes
  • Multi-Stream Transport (MST): Yes
  • Number of conductors: 19
  • Operating temperature (T-T): 0 - 50 °C
  • Storage temperature (T-T): 0 - 50 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Compliance certificates: CE, RoHS

Specifications

Features

Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version1.4
Maximum resolution7680 x 4320 pixels
Maximum refresh rate120 Hz
HDCPYes
Cable length1 m
Connector 1Mini DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack
Cable shieldingAluminum mylar foil
Jacket materialPolyvinyl chloride (PVC)
AWG wire size34
High Dynamic Range (HDR) supportedYes
HBR3 supportYes
Multi-Stream Transport (MST)Yes
Number of conductors19

Certificates

Compliance certificatesCE, RoHS

Logistics data

Harmonized System (HS) code84733080
Master (outer) case width400 mm
Master (outer) case length330 mm
Master (outer) case height270 mm
Products per master (outer) case120 pc(s)

Packaging data

Package width220 mm
Package depth200 mm
Package height20 mm
Package weight75 g

Packaging content

Quantity per pack1 pc(s)

Weight & dimensions

Cable diameter4.5 mm
Weight47 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 85%
