STARTECH.COM 3FT DB9 TO 3.5MM SERIAL CABLE, RS232 DB9 MALE TO AUDIO JACK LTW
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: 9M351M-RS232-CABLE
- MPN: 9M351M-RS232-CABLE
STARTECH
StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview

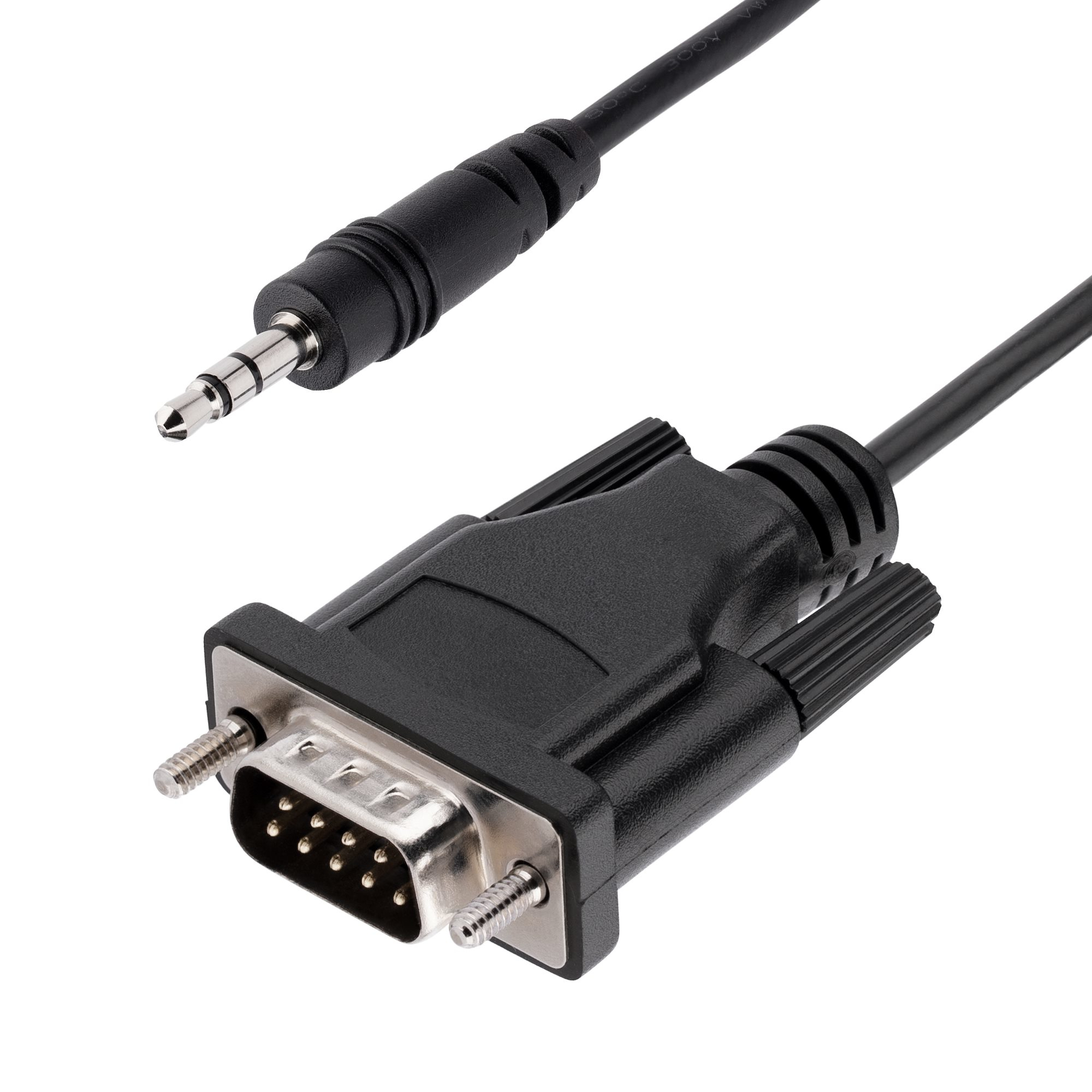

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.
High Quality Construction
The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.
Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.
DB9 Serial to 3.5mm Pinout
DB9 Pin 3 to 3.5mm Tip
DB9 Pin 2 to 3.5mm Ring
DB9 Pin 5 to 3.5mm Sleeve
This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key features
- Connector 1: DB-9
- Connector 2: 3.5mm
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 1 m
- Product colour: Black
- Cable jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 28
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
- Relative humidity: 30 - 75%
- Compliance certificates: RoHS
- Sustainability compliance: Yes
- Package width: 128 mm
- Package depth: 220 mm
- Package height: 10 mm
- Package weight: 23 g
- Cable diameter: 3.5 mm
- Products per master (outer) case: 200 pc(s)
- Master (outer) case width: 388 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 310 mm
Specifications
Performance
| Product colour | Black |
|---|---|
| Cable jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
Certificates
| Compliance certificates | RoHS |
|---|
Logistics data
| Products per master (outer) case | 200 pc(s) |
|---|---|
| Master (outer) case width | 388 mm |
| Master (outer) case length | 340 mm |
| Master (outer) case height | 310 mm |
Packaging data
| Package width | 128 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 10 mm |
| Package weight | 23 g |
Sustainability
| Sustainability compliance | Yes |
|---|
Technical details
| Cable diameter | 3.5 mm |
|---|
Ports & interfaces
| Connector 1 | DB-9 |
|---|---|
| Connector 2 | 3.5mm |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 1 m |
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Relative humidity | 30 - 75% |
