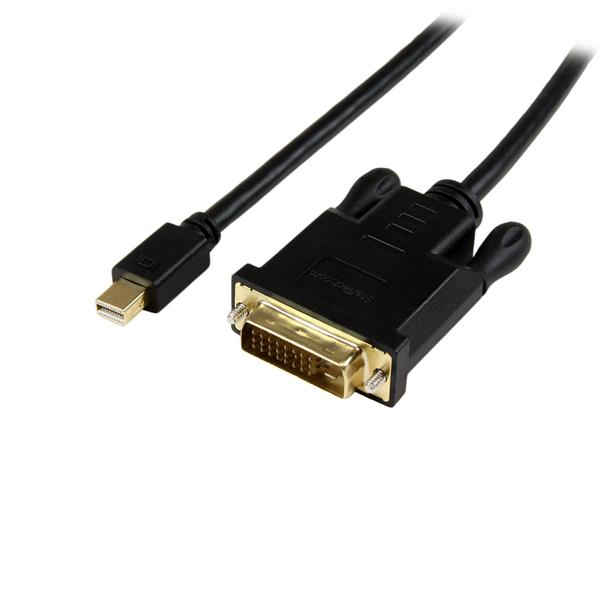

StarTech.com 3ft mDP to DVI Cable
3ft Mini DisplayPort to DVI Active Adapter Converter Cable 3 foot Active mDP to DVI M/M Cable for Mac or PC - 0.9m Active Mini DisplayPort to DVI Adapter Cable 2560x1600 Black
- Brand: StarTech.com
- Category: Computer Cables & Adapters
- SKU: 2557439
- MPN: MDP2DVIMM3BS
StarTech.com
StarTech.com 3ft (0.9m) Mini DisplayPort to DVI Cable - Active Mini…
- SKU
- CNZ-IM-021718
- MPN
- MDP2DVIMM3BS
- Rating
- No reviews yet
Overview
Eliminate excess cable clutter with a short 3ft Mini DisplayPort to DVI active adapter
The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Cable length: 0.9 m
- Connector 1: Mini DisplayPort
- Connector 2: DVI-D
- Connector 1 gender: Male
- Connector 2 gender: Male
- DisplayPort version: 1.2
- Dual Link DVI: No
- Maximum resolution: 1920 x 1200 pixels
- Supported graphics resolutions: 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes: 1080p
- Maximum refresh rate: 30 Hz
- Product colour: Black
- Chipset: Parade - PS171
- Plug and Play: Yes
- Converter type: Active
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 40 - 85%
- Compliance certificates: RoHS, CE
- Weight: 82 g
- Width: 40 mm
- Depth: 920 mm
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 0.9 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 1.2 |
| Dual Link DVI | No |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Maximum refresh rate | 30 Hz |
| Product colour | Black |
| Chipset | Parade - PS171 |
| Plug and Play | Yes |
| Converter type | Active |
Certificates
| Compliance certificates | RoHS, CE |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 420 mm |
| Master (outer) case length | 415 mm |
| Master (outer) case height | 435 mm |
| Products per master (outer) case | 180 pc(s) |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 15 mm |
| Package weight | 82.2 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 82 g |
|---|---|
| Width | 40 mm |
| Depth | 920 mm |
| Height | 15 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 60 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
