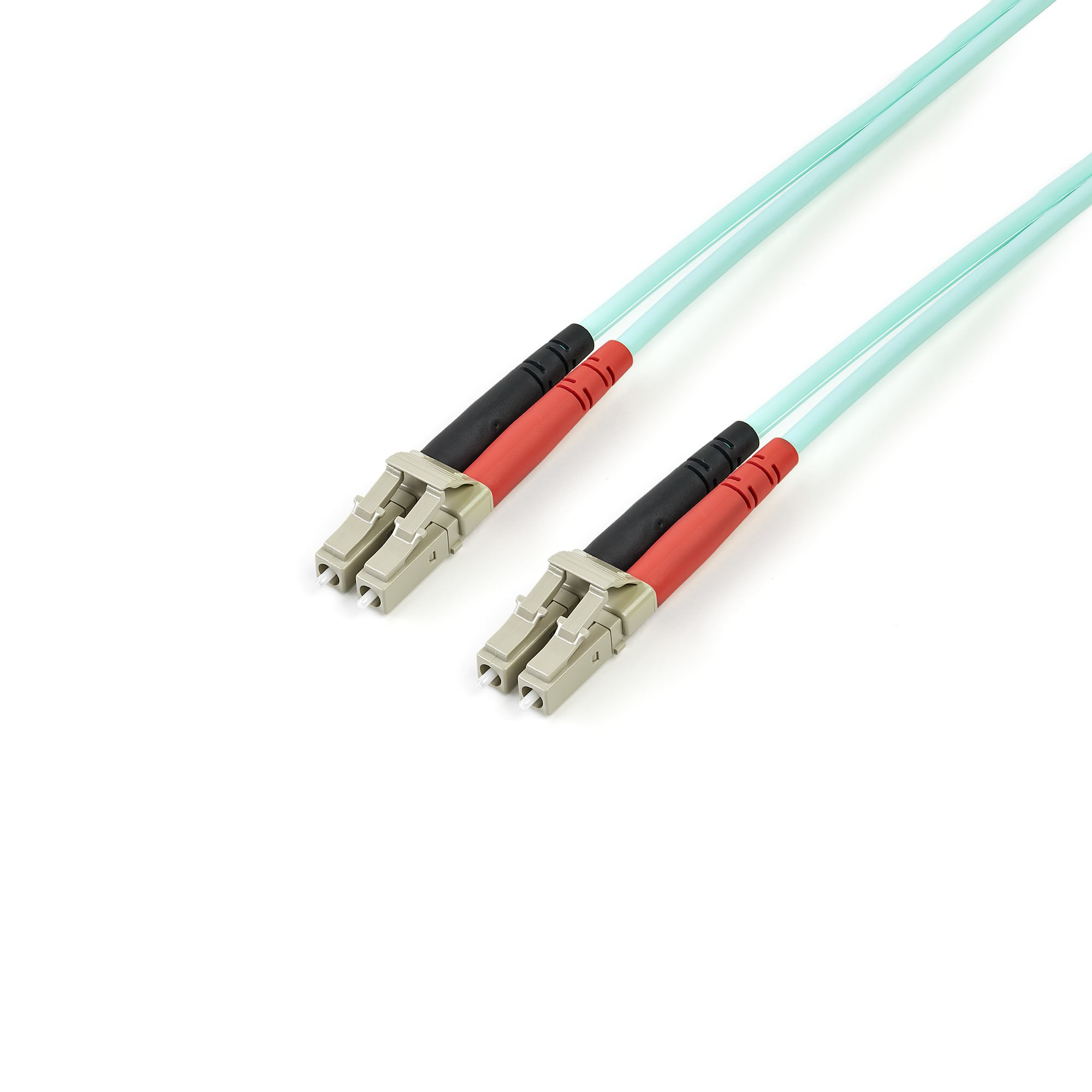

STARTECH.COM 3M LC/UPC TO LC/UPC OM3 MULTIMODE FIBER OPTIC CABLE, LTW
Cables & Connectivity > Network Cables
- Brand: STARTECH
- Category: Networking
- SKU: A50FBLCLC3
- MPN: A50FBLCLC3
STARTECH
StarTech.com 3m (10ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic…
- SKU
- CNZ-DD-010044
- MPN
- A50FBLCLC3
- Rating
- No reviews yet
Overview
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
The A50FBLCLC3 3m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
The A50FBLCLC3 3m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
Key features
- Cable length: 3 m
- Fibre optic type: OM3
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Turquoise
- Full duplex: Yes
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Wavelengths supported: 850 nm
- Data transfer rate: 100 Gbit/s
- Jacket material: Low smoke zero halogen (LSZH)
- Doesn't contain: Halogen
- Compliance certificates: REACH, RoHS
- Certification: CE
- Operating temperature (T-T): -20 - 60 °C
- Storage temperature (T-T): -20 - 60 °C
- Weight: 24 g
- Package width: 120 mm
- Package depth: 95 mm
- Package height: 32 mm
- Package weight: 52 g
Specifications
Features
| Cable length | 3 m |
|---|---|
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Turquoise |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
Certificates
| Compliance certificates | REACH, RoHS |
|---|---|
| Certification | CE |
Logistics data
| Master (outer) case width | 403 mm |
|---|---|
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 403 mm |
| Products per master (outer) case | 200 pc(s) |
Packaging data
| Package width | 120 mm |
|---|---|
| Package depth | 95 mm |
| Package height | 32 mm |
| Package weight | 52 g |
Sustainability
| Doesn't contain | Halogen |
|---|
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Weight | 24 g |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 60 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
Questions
$58.64inc GST
