STARTECH.COM 3M MINI DP TO DISPLAYPORT 1.4 CABLE 8K 60HZ HBR3 4K, LTW

Cables & Connectivity > Cables & Connectivity

  • Brand: STARTECH
  • Category: Peripherals
  • SKU: DP14MDPMM10F
  • MPN: DP14MDPMM10F
STARTECH

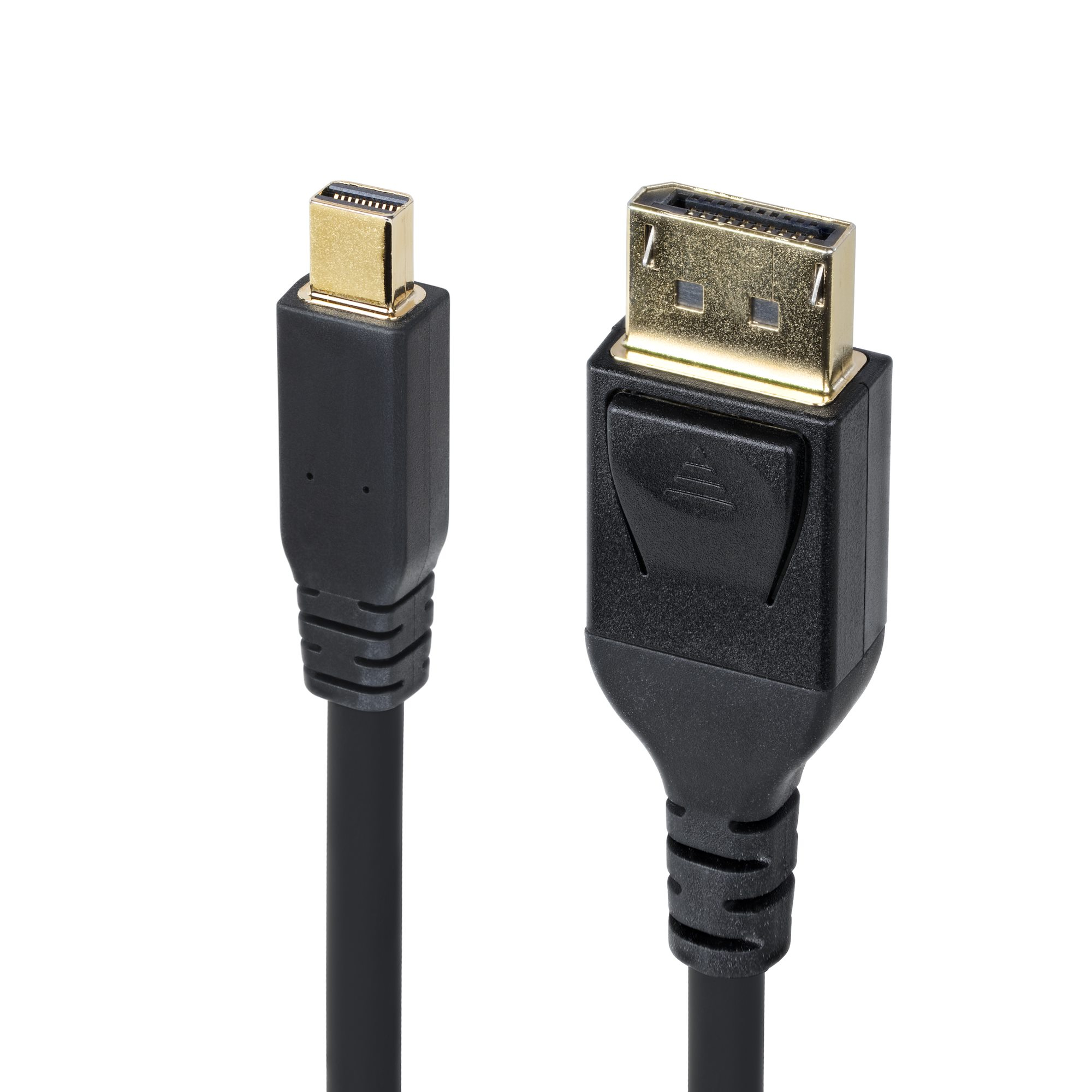

StarTech.com 10ft (3m) Mini DisplayPort to DisplayPort 1.4 Cable -…

SKU
CNZ-DD-014082
MPN
DP14MDPMM10F

Overview

Create high-resolution 8K connections with HBR3 support between your Mini DisplayPort and DisplayPort devices

This 10ft Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.

Crystal-Clear Picture Quality

This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:

• Multi-Stream Transport (MST) for daisy chaining multiple monitors.
• Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
• HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.
• Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.
• Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.

Ultimate Compatibility

This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:

• Radeon™ VII, SSG, WX x100, Pro and FirePro™ series.
• Nvidia Quadro P series.

Built to Last

This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.

Key features

  • Connector 1 form factor: Straight
  • Connector 2 form factor: Straight
  • Connector contacts plating: Gold
  • DisplayPort version: 1.4
  • Maximum resolution: 7680 x 4320 pixels
  • Supported graphics resolutions: 3840 x 2160, 7680 x 4320
  • HDCP: Yes
  • HDCP version: 2.2
  • Display Stream Compression (DSC): Yes
  • Display Stream Compression (DSC) version: 1.2
  • Cable length: 3 m
  • Connector 1: DisplayPort
  • Connector 2: Mini DisplayPort
  • Connector 1 gender: Male
  • Connector 2 gender: Male
  • Product colour: Black
  • Cable shielding: Aluminum mylar foil
  • Jacket material: Polyvinyl chloride (PVC)
  • AWG wire size: 34
  • High Dynamic Range (HDR) supported: Yes
  • Bandwidth: 32400 MB/s
  • HBR3 support: Yes
  • Multi-Stream Transport (MST): Yes
  • Number of conductors: 19

Specifications

Features

Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version1.4
Maximum resolution7680 x 4320 pixels
Supported graphics resolutions3840 x 2160, 7680 x 4320
HDCPYes
HDCP version2.2
Display Stream Compression (DSC)Yes
Display Stream Compression (DSC) version1.2
Cable length3 m
Connector 1DisplayPort
Connector 2Mini DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack
Cable shieldingAluminum mylar foil
Jacket materialPolyvinyl chloride (PVC)
AWG wire size34
High Dynamic Range (HDR) supportedYes
Bandwidth32400 MB/s
HBR3 supportYes
Multi-Stream Transport (MST)Yes
Number of conductors19
Colour sampling4:4:4

Certificates

Compliance certificatesCE, RoHS

Logistics data

Master (outer) case width400 mm
Master (outer) case length330 mm
Master (outer) case height270 mm
Products per master (outer) case50 pc(s)

Packaging data

Package width220 mm
Package depth200 mm
Package height20 mm
Package weight144 g

Weight & dimensions

Cable diameter4.5 mm
Weight144 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)0 - 85%

Questions

$63.24inc GST
