StarTech.com 4 Bay Hot Swap Mobile Rack Backplane
4 DRIVE BAY ALUMINUM TRAYLESS HOT SWAP MOBILE RACK BACKPLANE WITH FAN LOCK FOR 3.5IN SAS II / SATA III - 6 GBPS HARD DRIVE - 3 BAY 5.25IN MOUNTED MOBILE RACK BACKPLANE
- Brand: StarTech.com
- Category: Servers & Storage
- SKU: 2784044
- MPN: HSB4SATSASBA
StarTech.com
StarTech.com 4 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane…
- SKU
- CNZ-IM-044170
- MPN
- HSB4SATSASBA
- Rating
- No reviews yet
−20%
Overview
Connect and hot swap four 3.5in SATA III or SAS II hard drives to your computer system in three 5.25” bays, with support for transfer speeds up to 6 Gbps

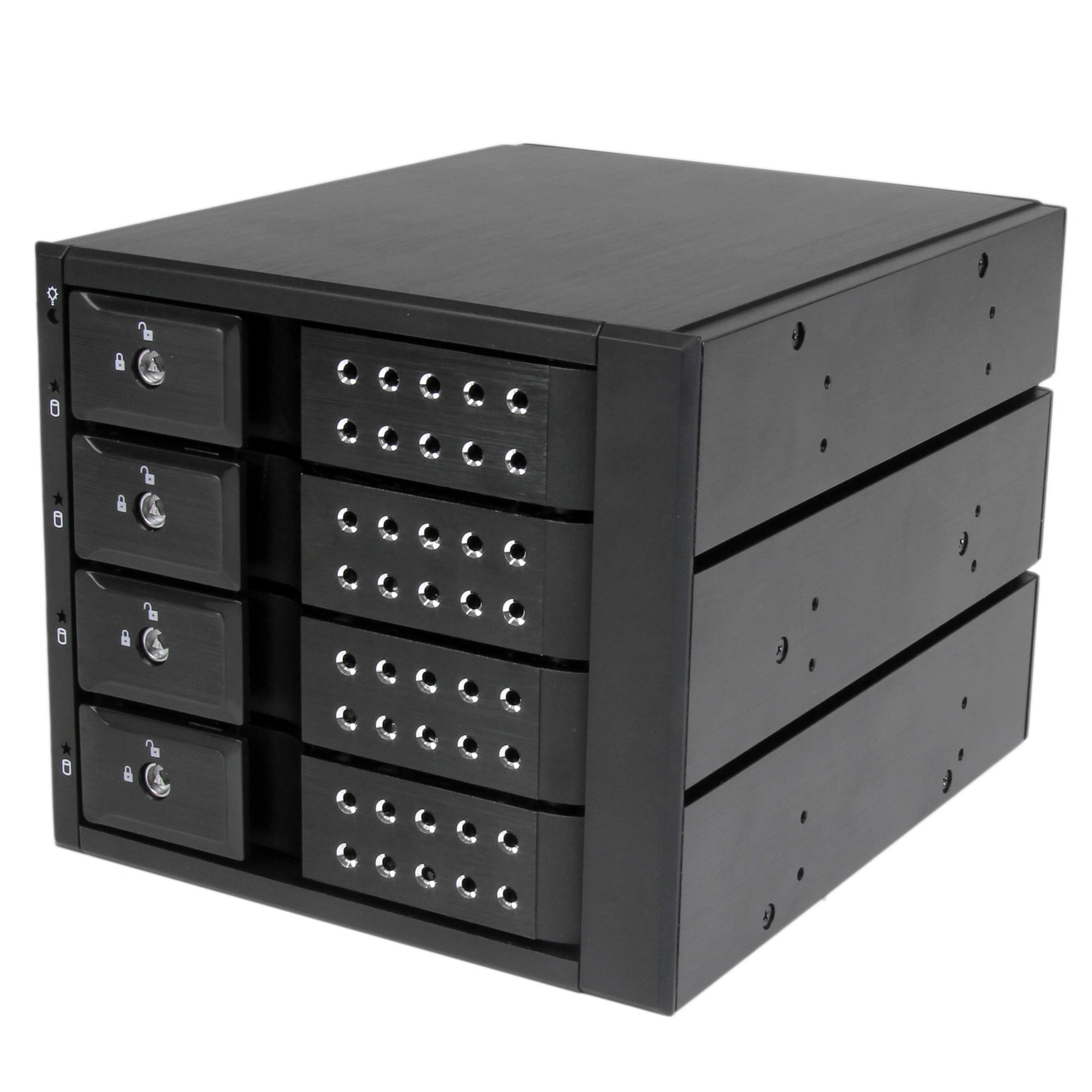

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5” SATA or SAS hard drives (HDD).
For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications.
For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure.
The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Product colour: Black
- Material: Aluminium
- Hot-swap: Yes
- Number of fans: 1 fan(s)
- Fan diameter: 7 cm
- Data transfer rate: 6 Gbit/s
- LED indicators: Activity, Power
- Key lock: Yes
- Certification: CE, FCC
- External SATA ports quantity: 4
- Width: 145 mm
- Depth: 197 mm
- Height: 124 mm
- Weight: 1.3 kg
- Package width: 254 mm
- Package depth: 164 mm
- Package height: 180 mm
- Package weight: 1.59 kg
- Cables included: SATA
- Screws included: Yes
- Manual: Yes
- Storage temperature (T-T): -20 - 65 °C
- Operating temperature (T-T): 0 - 55 °C
- Operating relative humidity (H-H): 5 - 85%
Specifications
Features
| Product colour | Black |
|---|---|
| Material | Aluminium |
| Hot-swap | Yes |
| Number of fans | 1 fan(s) |
| Fan diameter | 7 cm |
| Data transfer rate | 6 Gbit/s |
| LED indicators | Activity, Power |
| Key lock | Yes |
| Certification | CE, FCC |
Logistics data
| Products per master (outer) case | 6 pc(s) |
|---|---|
| Master (outer) case width | 385 mm |
| Master (outer) case length | 516 mm |
| Master (outer) case height | 281 mm |
| Harmonized System (HS) code | 84733080 |
Packaging data
| Package width | 254 mm |
|---|---|
| Package depth | 164 mm |
| Package height | 180 mm |
| Package weight | 1.59 kg |
Packaging content
| Cables included | SATA |
|---|---|
| Screws included | Yes |
| Manual | Yes |
Technical details
| Compliance certificates | RoHS |
|---|
Ports & interfaces
| External SATA ports quantity | 4 |
|---|
Weight & dimensions
| Width | 145 mm |
|---|---|
| Depth | 197 mm |
| Height | 124 mm |
| Weight | 1.3 kg |
Operational conditions
| Storage temperature (T-T) | -20 - 65 °C |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 85% |
