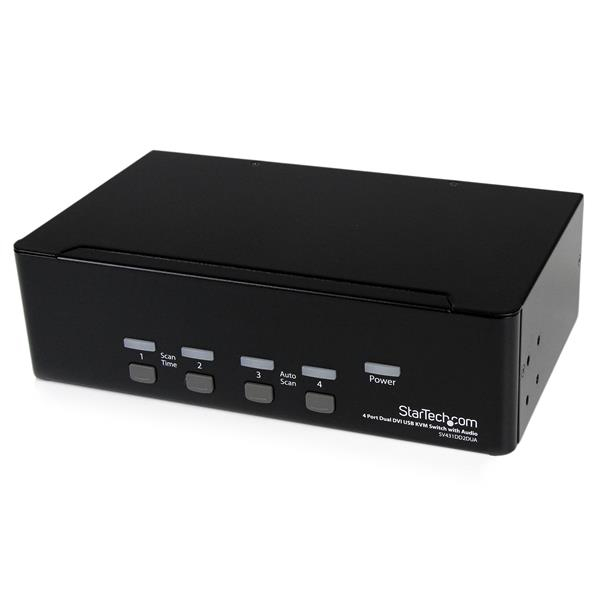

StarTech.com 4 Port Dual DVI USB KVM Switch

4 PORT DUAL DVI USB KVM SWITCH WITH AUDIO USB 2.0 HUB

  • Brand: StarTech.com
  • Category: Switches
  • SKU: 1605885
  • MPN: SV431DD2DUA
StarTech.com

StarTech.com 4 Port Dual DVI USB KVM Switch with Audio & USB 2.0 Hub

SKU
CNZ-IM-022038
MPN
SV431DD2DUA

Overview

Share a keyboard, mouse and dual DVI displays/monitors between 4 multimedia computers
The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
- Take full advantage of Dual head video cards by switching up to four machines across two high resolution DVI monitors
- Absolutely no software or drivers required providing a completely OS independent KVM solution

Key features

  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-I
  • Console ports: 3.5mm headphone, 3.5mm mic, DVI-I, USB A
  • USB 2.0 ports quantity: 4
  • USB connector type: USB Type-A
  • Audio connections: Yes
  • Number of microphone inputs: 1
  • DC-in jack: Yes
  • Ethernet LAN: No
  • Maximum resolution: 2048 x 1536 pixels
  • Maximum digital resolution: 1920 x 1200 pixels
  • Maximum analog resolution: 2048 x 1536 pixels
  • Daisy chain: No
  • Number of users: 1 user(s)
  • Product colour: Black
  • Housing material: Steel
  • LED indicators: Power
  • Certification: CE, FCC, UL
  • Input voltage: 100-240 V
  • Input current: 0.8 A
  • Output voltage: 12 V
  • Output current: 1.5 A

Specifications

Power

Input voltage100-240 V
Input current0.8 A
Output voltage12 V
Output current1.5 A
Compatible power plug typesAU, EU, UK, US

Design

Product colourBlack
Housing materialSteel
LED indicatorsPower
CertificationCE, FCC, UL

Network

Ethernet LANNo

Performance

Maximum resolution2048 x 1536 pixels
Maximum digital resolution1920 x 1200 pixels
Maximum analog resolution2048 x 1536 pixels
Daisy chainNo
Number of users1 user(s)

Logistics data

Harmonized System (HS) code85176200

Other features

IP controlNo

Packaging data

Package width295 mm
Package depth245 mm
Package height86 mm
Package weight1.88 kg

Sustainability

Compliance certificatesRoHS

Packaging content

ManualYes
AC adapter includedYes
Rubber feetYes

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Console ports3.5mm headphone, 3.5mm mic, DVI-I, USB A
USB 2.0 ports quantity4
USB connector typeUSB Type-A
Audio connectionsYes
Number of microphone inputs1
DC-in jackYes

Weight & dimensions

Width220 mm
Depth130 mm
Height60 mm
Weight1.25 kg

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 90%

Questions
