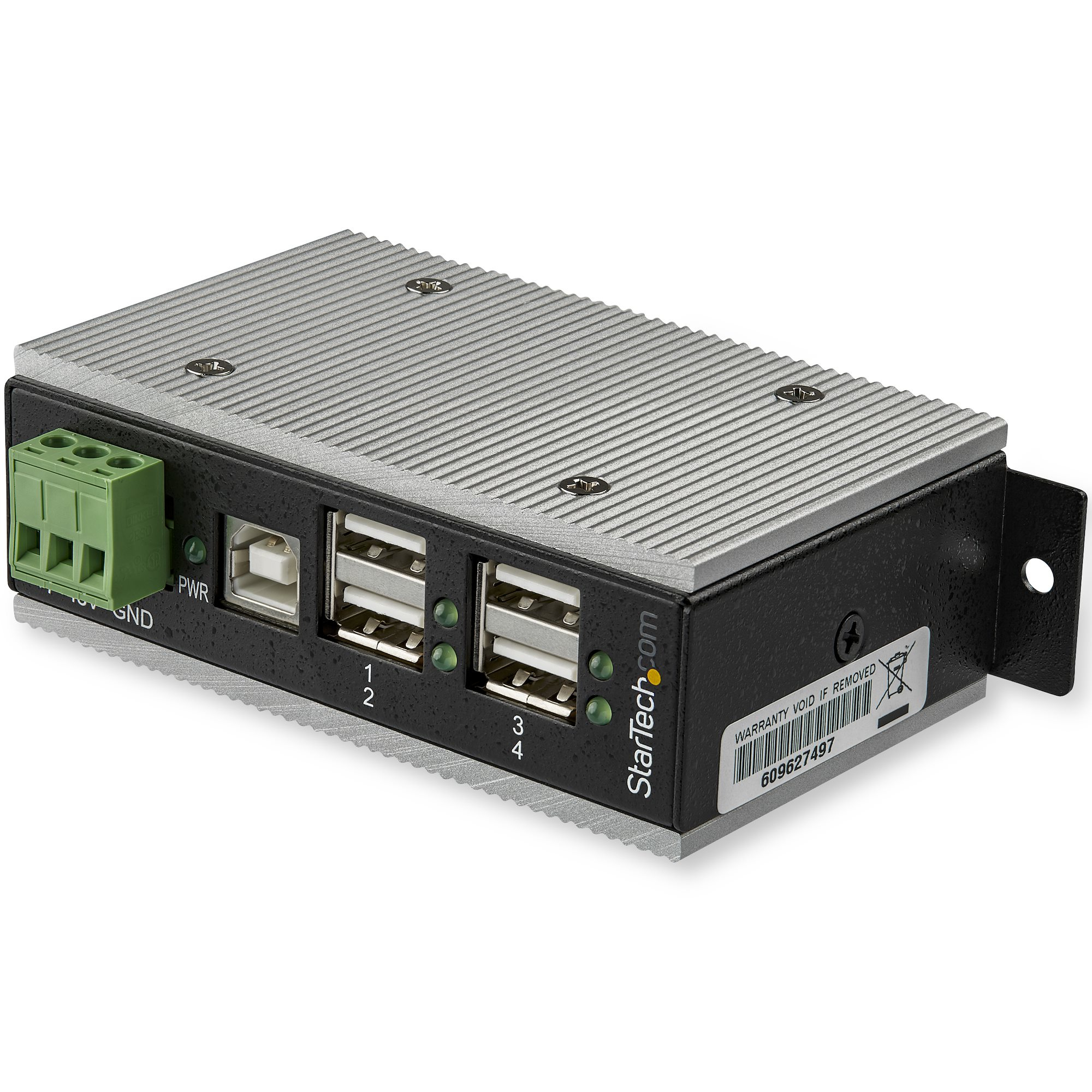

STARTECH.COM 4-PORT INDUSTRIAL USB HUB - USB 2.0 - 15KV ESD PROTECTION, 2 YR

Peripherals & Accessories > Chargers & Power Adapters

  • Brand: STARTECH
  • Category: Peripherals
  • SKU: HB20A4AME
  • MPN: HB20A4AME
STARTECH

StarTech.com 4-Port USB 2.0 Hub - Metal Industrial USB-A Hub with…

SKU
CNZ-DD-029217
MPN
HB20A4AME

Overview

Extended Temperature| 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail | 480 Mbps

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

Locate the Hub Where You Need It Most

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.

The HB20A4AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Host interface: USB 2.0 Type-B
  • Hub interfaces: USB 2.0
  • USB 2.0 ports quantity: 4
  • Ports quantity: 4
  • Card reader integrated: No
  • Terminal block port: Yes
  • DC-in jack: No
  • Data transfer rate: 480 Mbit/s
  • Product colour: Black
  • Housing material: Metal
  • Surge protection: Yes
  • LED indicators: Power
  • Plug and Play: Yes
  • Certification: CE, FCC, TAA, RoHS, REACH
  • Power consumption (typical): 14 W
  • Input voltage: 7 - 48 V
  • Input current: 2 A
  • Width: 55 mm
  • Depth: 95 mm
  • Height: 32 mm
  • Weight: 292 g
  • Package width: 170 mm
  • Package depth: 240 mm
  • Package height: 55 mm

Specifications

Power

Power consumption (typical)14 W
Input voltage7 - 48 V
Input current2 A

Features

Data transfer rate480 Mbit/s
Product colourBlack
Housing materialMetal
Surge protectionYes
LED indicatorsPower
Plug and PlayYes
CertificationCE, FCC, TAA, RoHS, REACH

Logistics data

Master (outer) case width440 mm
Master (outer) case length520 mm
Master (outer) case height335 mm
Products per master (outer) case25 pc(s)
Harmonized System (HS) code84719000

Other features

ChipsetGenesys Logic - GL852GT

Packaging data

Package width170 mm
Package depth240 mm
Package height55 mm
Package weight504 g

Packaging content

Cables includedUSB
ManualYes
DIN rail kit includedYes

Ports & interfaces

Host interfaceUSB 2.0 Type-B
Hub interfacesUSB 2.0
USB 2.0 ports quantity4
Ports quantity4
Card reader integratedNo
Terminal block portYes
DC-in jackNo

Weight & dimensions

Width55 mm
Depth95 mm
Height32 mm
Weight292 g

Operational conditions

Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
