Add 4 USB 3.2 Gen 1 hub ports, plus 3 dedicated USB charging ports (7 total) through a single USB 3.2 Gen 1 host connection

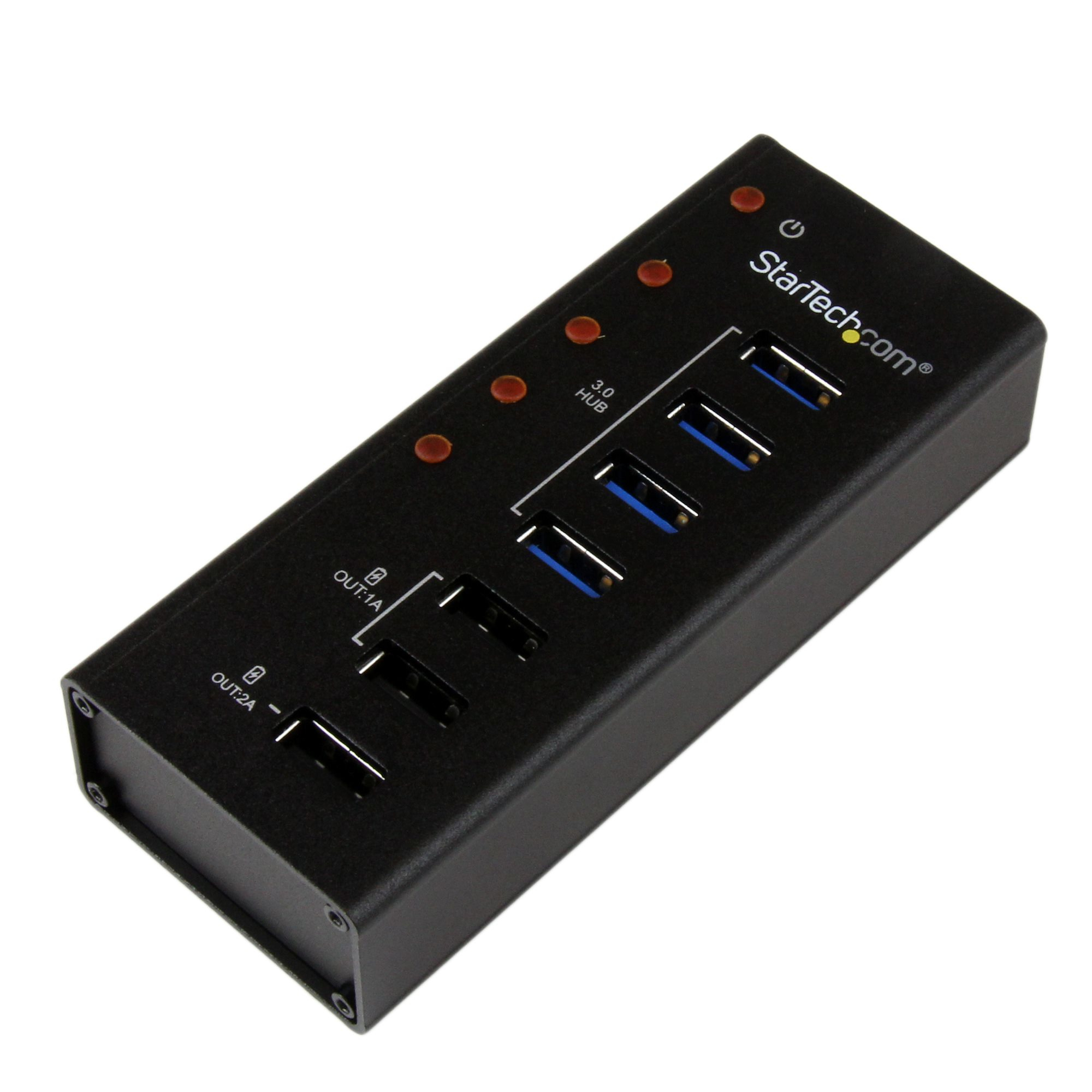

The ST4300U3C3 USB 3.2 Gen 1 Hub enables simultaneous data hub and USB charging functionality by adding three dedicated USB charge ports, as well as four USB 3.2 Gen 1 data ports, for a total of seven ports, all through a single USB 3.2 Gen 1 host connection.
The USB hub ports are compliant with the SuperSpeed USB 3.2 Gen 1 specification, offering data transfer rates up to 5 Gbps, and are backward compatible with USB 2.0 and 1.x specifications.
This externally powered USB hub also integrates 3 dedicated USB charging ports, providing 2 x 1A and 1 x 2A ports, enabling both data hub and USB charging station functionality. Support for USB Battery Charging Specification 1.2 lets you charge most mobile devices, including the Apple® iPhone®, iPad®, Microsoft® Surface™, Samsung Galaxy Tab™ and more.
Designed for easy access to the ports when connecting or disconnecting devices, the hub features an upright port orientation, in a compact and durable metal enclosure. For added flexibility, the hub includes a bracket for wall-mounted installations.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces: USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ports quantity: 7
DC-in jack: Yes
Data transfer rate: 5000 Mbit/s
Product colour: Black
Housing material: Aluminium
LED indicators: Yes
Power supply type: DC
Input voltage: 100 - 240 V
Input current: 1.3 A
Output voltage: 12 V
Output current: 3 A
Power plug type: Type M
Windows operating systems supported: Yes
Mac operating systems supported: Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported: Yes
Width: 45 mm
Depth: 110 mm
Height: 24 mm
Weight: 131 g
Package width: 166 mm
Specifications
Power
Power supply type
DC
Input voltage
100 - 240 V
Input current
1.3 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
Features
Data transfer rate
5000 Mbit/s
Product colour
Black
Housing material
Aluminium
LED indicators
Yes
Logistics data
Master (outer) case width
363 mm
Master (outer) case length
455 mm
Master (outer) case height
359 mm
Products per master (outer) case
30 pc(s)
Harmonized System (HS) code
84719000
Other features
Chipset
VLI - VL812
Packaging data
Package width
166 mm
Package depth
104 mm
Package height
90 mm
Package weight
606 g
Sustainability
Sustainability compliance
Yes
Packaging content
AC adapter included
Yes
Included power plug types
AU, EU, NA, UK
Cables included
USB
Wall mounting kit
Yes
Manual
Yes
Technical details
Compliance certificates
CE, RoHS
Ports & interfaces
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces
USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ports quantity
7
DC-in jack
Yes
System requirements
Windows operating systems supported
Yes
Mac operating systems supported
Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
