StarTech.com 4-Port Serial PCIe Card, Quad-Port PCI Express to…

SKU: CNZ-IM-043690
MPN: PS74ADF-SERIAL-CARD
Rating: No reviews yet

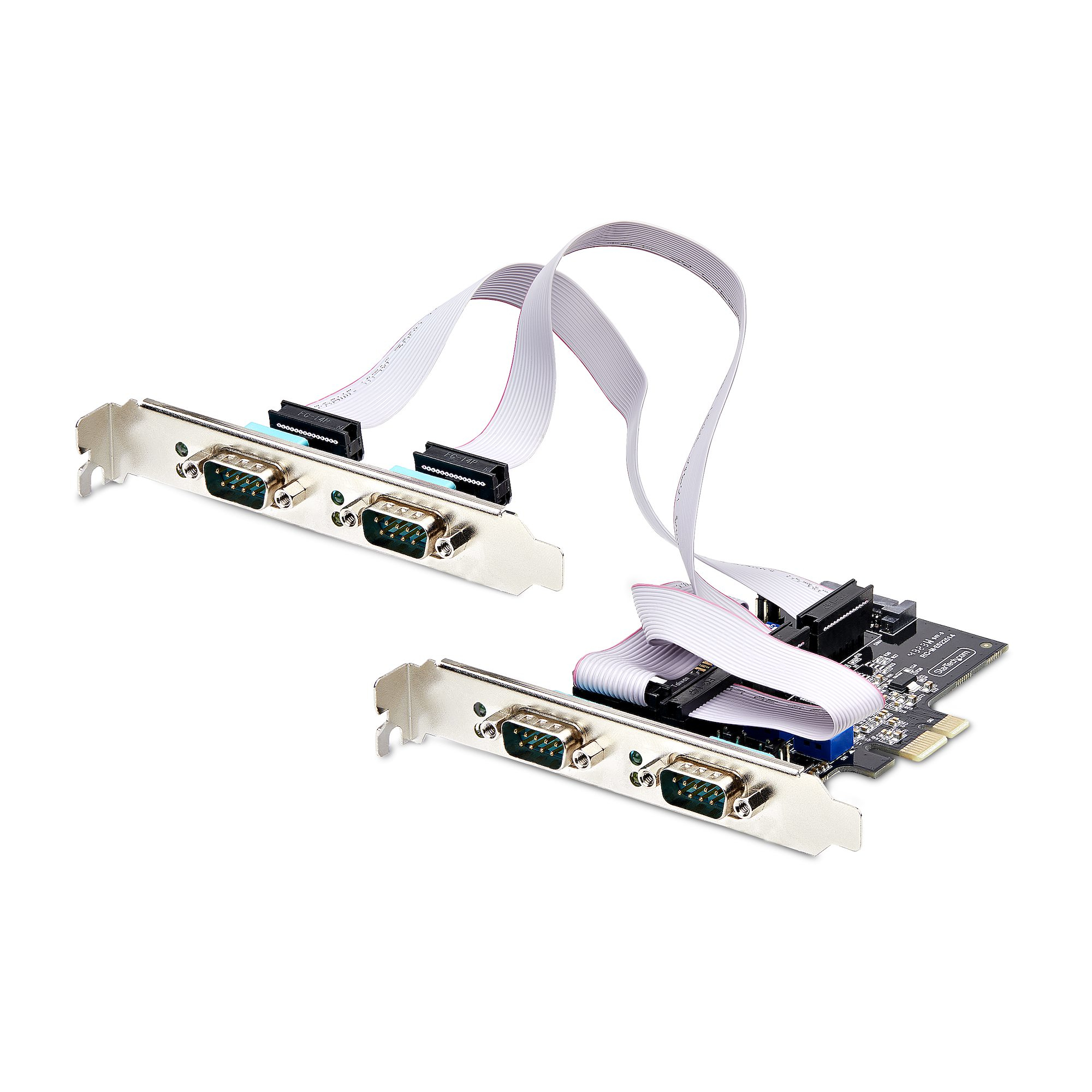

StarTech.com 4-PORT SERIAL PCIE CARD RS232/422/485 — StarTech.com

Overview

Add four RS-232, RS-422, or RS-485-capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 4-Port Serial PCI Express Card. The four DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.

Per-Port Serial Configuration

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.

Configurable External SATA Power

The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.

Legacy Connectivity

This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 4-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes)

The StarTech.com Advantage

Key features

Host interface: PCIe
Output interface: Serial
Serial ports quantity: 4
Serial interface type: RS-232/422/485
Internal: Yes
Product colour: Black
LED indicators: Activity
Chipset: ASIX - AX99100
Baud rate: 921.6 Kbit/s
FIFO (First In, First Out): 256 B
Data bits: 5, 6, 8, 9
Stop bits: 1, 1.5, 2
Flow control support: Yes
Parity bit: Even, Mark, No, Odd, Space
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -20 - 80 °C
Operating relative humidity (H-H): 20 - 80%
Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2016, Windows Server 2019, Windows Server 2022
Sustainability compliance: Yes
Compliance certificates: RoHS, Trade Agreements Act (TAA)
Width: 109 mm
Depth: 121 mm

Specifications

Design

Internal	Yes
Product colour	Black
LED indicators	Activity

Features

Chipset	ASIX - AX99100
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 8, 9
Stop bits	1, 1.5, 2
Flow control support	Yes
Parity bit	Even, Mark, No, Odd, Space

Logistics data

Products per master (outer) case	50 pc(s)
Master (outer) case width	685 mm
Master (outer) case length	345 mm
Master (outer) case height	306 mm

Other features

Cable length	0.3 m
Electrostatic Discharge (ESD) protection	15 kV

Packaging data

Cables included	Ribbon cable
Mounting brackets included	Yes
User guide	Yes
Package width	144 mm
Package depth	207 mm
Package height	38 mm
Package weight	273.2 g

Technical details

Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)

Ports & interfaces

Host interface	PCIe
Output interface	Serial
Serial ports quantity	4
Serial interface type	RS-232/422/485

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022

Weight & dimensions

Width	109 mm
Depth	121 mm
Height	16 mm
Weight	60 g

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%

Questions
