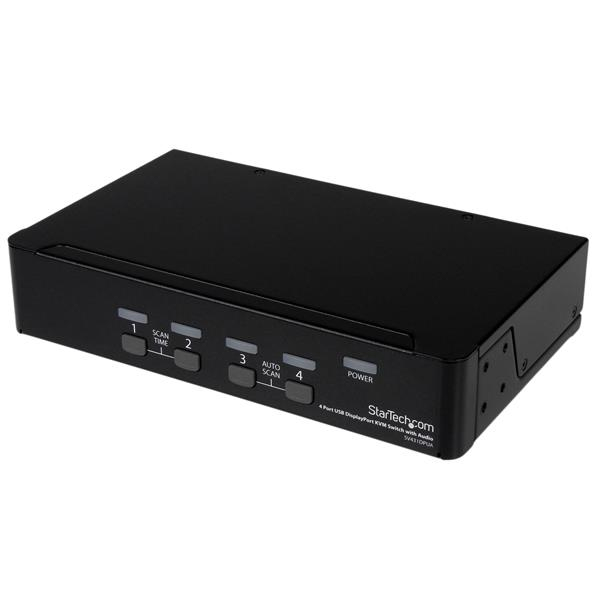

StarTech.com 4 Port USB DisplayPort KVM Switch
4 Port USB DisplayPort KVM Switch with Audio
- Brand: StarTech.com
- Category: Switches
- SKU: 1610404
- MPN: SV431DPUA
StarTech.com
StarTech.com 4 Port USB DisplayPort KVM Switch with Audio
- SKU
- CNZ-IM-043699
- MPN
- SV431DPUA
- Rating
- No reviews yet
−19%
Overview
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The StarTech.com Advantage
- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
Key features
- Number of computers controlled: 4
- Keyboard port type: USB
- Mouse port type: USB
- Video port type: DisplayPort
- Console ports: DisplayPort, 3.5mm headphone, 3.5mm mic, USB A
- Console USB ports quantity: 4
- USB hub: Yes
- Audio connections: Yes
- Headphone outputs: 5
- Number of microphone inputs: 5
- DC-in jack: Yes
- Maximum resolution: 3840 x 2400 pixels
- Maximum digital resolution: 2560 x 1600 pixels
- DDC2B support: Yes
- Hot-Plug support: Yes
- Plug and Play: Yes
- Daisy chain: No
- Number of users: 1 user(s)
- Audio channels: 7.1
- Product colour: Black
- Housing material: Steel
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
Specifications
Power
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| External power adapter | Yes |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
Design
| Product colour | Black |
|---|---|
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 136000 h |
| Certification | CE, FCC, UL, TAA, REACH |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
Performance
| Maximum resolution | 3840 x 2400 pixels |
|---|---|
| Maximum digital resolution | 2560 x 1600 pixels |
| DDC2B support | Yes |
| Hot-Plug support | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Number of users | 1 user(s) |
| Audio channels | 7.1 |
Logistics data
| Harmonized System (HS) code | 85176200 |
|---|
Other features
| Audio support | Yes |
|---|---|
| IP control | No |
Packaging data
| Package width | 214 mm |
|---|---|
| Package depth | 411 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg |
Sustainability
| Compliance certificates | RoHS |
|---|
Packaging content
| Manual | Yes |
|---|---|
| AC adapter included | Yes |
| Rubber feet | Yes |
Ports & interfaces
| Number of computers controlled | 4 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | DisplayPort, 3.5mm headphone, 3.5mm mic, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
Weight & dimensions
| Width | 221 mm |
|---|---|
| Depth | 130.6 mm |
| Height | 44 mm |
| Weight | 1 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
