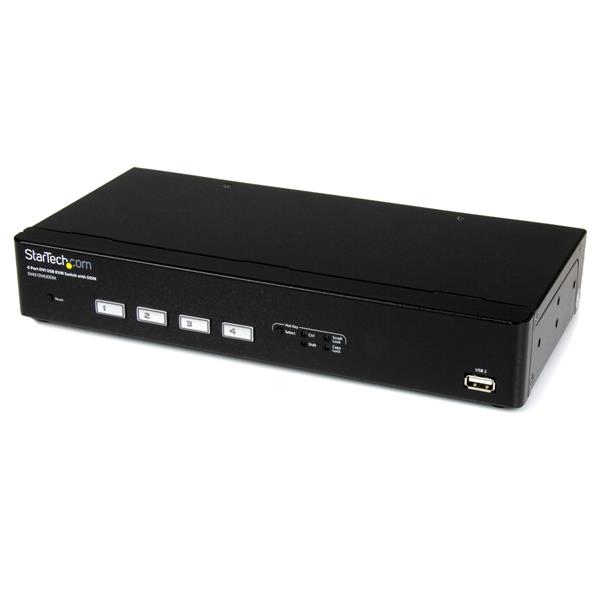

StarTech.com 4 Port USB DVI KVM Switch with DDM

4 Port USB DVI KVM Switch with DDM Fast Switching Technology and Cables - Four Port DVI USB KVM Switch - DDM KVM Switch

  • Brand: StarTech.com
  • Category: Switches
  • SKU: 2771222
  • MPN: SV431DVIUDDM
StarTech.com

StarTech.com 4 Port USB DVI KVM Switch with DDM Fast Switching…

SKU
CNZ-IM-022039
MPN
SV431DVIUDDM

Overview

Control 4 DVI, USB-equipped PCs with a single peripheral set, with USB Dynamic Device Mapping to avoid switching lag-time

The SV431DVIUDDM 4-Port USB DVI KVM Switch lets you control 4 DVI, USB-equipped PCs using a single peripheral set at high-definition DVI resolutions up to 1920x1200.

The included KVM cables provide a ready-out-of-the-box solution, while USB Dynamic Device Mapping (DDM) and Display Data Channel (DDC) features work to significantly reduce switching lag-time and improve overall compatibility with your connected display and input devices, saving you time and money.

For the next level in KVM performance, this DVI KVM switch integrates dual-core dedicated processing per channel and innovative, USB DDM technology that enables you to quickly switch between connected computers with next-to-zero delay. DDM maintains a constant communication channel between your USB peripherals and connected systems, avoiding the time necessary for your systems to re-recognize the devices when switching.

In addition to faster switching, the KVM offers All-time Display Data Channel (Full DDC) technology to maintain proper display detection among connected systems, a simple one-touch button for hot-key selection and an integrated 2-port USB hub allowing you to share additional peripherals.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Switch between devices with minimal lag through fast-switching DDM technology
- Instant setup and operation with included KVM cables
- Near universal compatibility with all USB input devices through USB DDM Ports

Key features

  • Number of computers controlled: 4
  • Keyboard port type: USB
  • Mouse port type: USB
  • Video port type: DVI-I
  • Console ports: DVI-I, USB A
  • Console USB ports quantity: 2
  • USB hub: Yes
  • USB 2.0 ports quantity: 2
  • USB 2.0 Type-A hub ports quantity: 2
  • Audio connections: No
  • DC-in jack: Yes
  • Ethernet LAN: Yes
  • Maximum resolution: 1920 x 1200 pixels
  • Maximum digital resolution: 1920 x 1200 pixels
  • Daisy chain: No
  • Number of users: 1 user(s)
  • Rack mounting: No
  • Product colour: Black
  • Housing material: Steel
  • LED indicators: Yes
  • Hot keys: Yes
  • Certification: CE, FCC, TAA, UL, REACH
  • Built-in display: No
  • Input voltage: 100 - 240 V

Specifications

Power

Input voltage100 - 240 V
Input current0.4 A
Output voltage5 V
Output current2 A
Power consumption (typical)10 W
External power adapterYes
Power plug typeType M
Compatible power plug typesEU, UK, US

Design

Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Hot keysYes
CertificationCE, FCC, TAA, UL, REACH

Display

Built-in displayNo

Network

Ethernet LANYes

Performance

Maximum resolution1920 x 1200 pixels
Maximum digital resolution1920 x 1200 pixels
Daisy chainNo
Number of users1 user(s)

Logistics data

Harmonized System (HS) code85176200

Other features

Audio supportYes
IP controlNo

Packaging data

Package width350 mm
Package depth255 mm
Package height131 mm
Package weight3.4 kg

Sustainability

Compliance certificatesRoHS

Packaging content

Cables includedKVM
ManualYes
AC adapter includedYes

Ports & interfaces

Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDVI-I
Console portsDVI-I, USB A
Console USB ports quantity2
USB hubYes
USB 2.0 ports quantity2
USB 2.0 Type-A hub ports quantity2
Audio connectionsNo
DC-in jackYes

Weight & dimensions

Width138 mm
Depth66 mm
Height22 mm
Weight1.1 kg

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 80%
