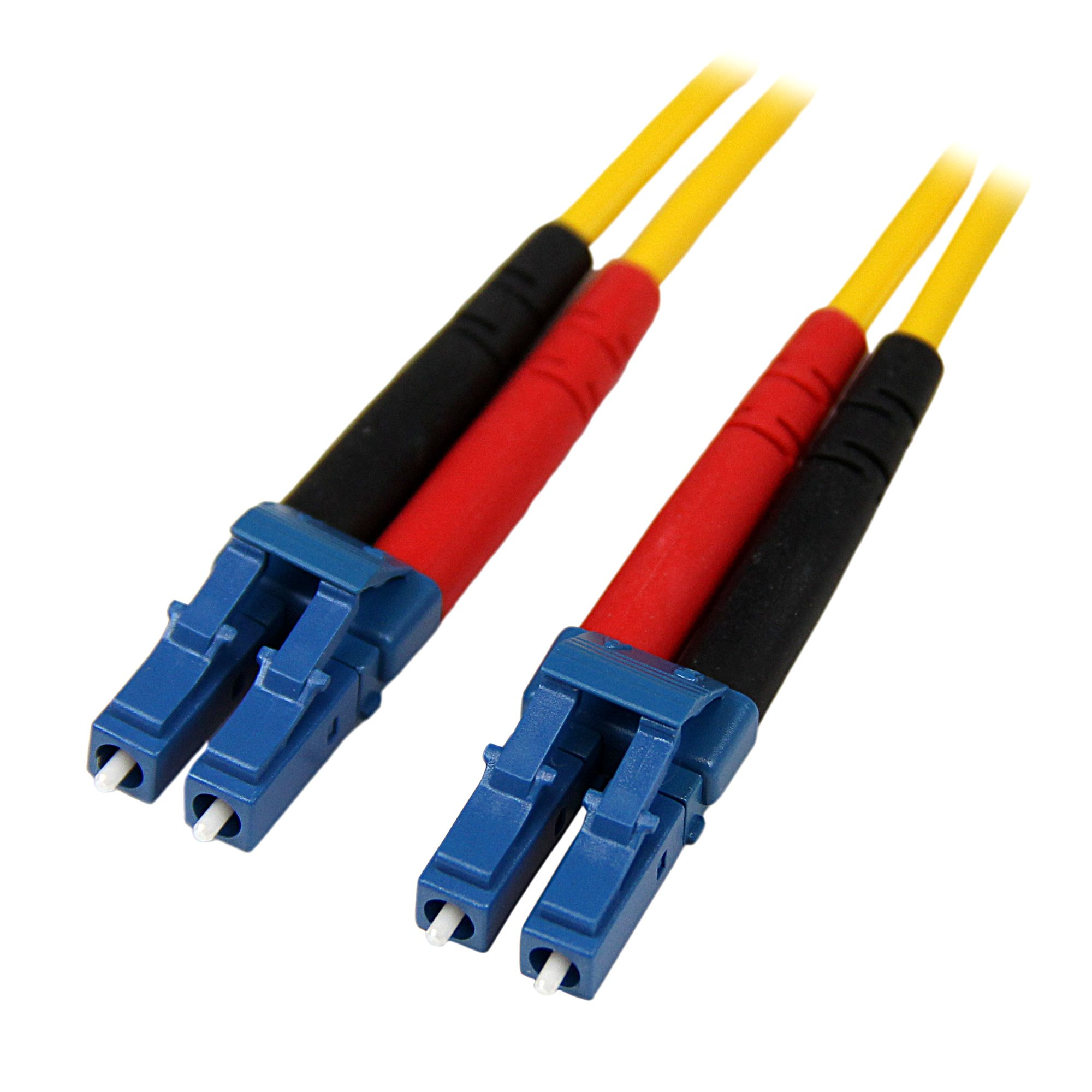

StarTech.com 4m SM Duplex Fiber Patch Cable LC to LC
4M SINGLE MODE DUPLEX FIBER PATCH CABLE - LC TO LC OS1 SINGLE MODE 9/125 DUPLEX LSZH FIBER PATCH CORD - YELLOW 4 METER
- Brand: StarTech.com
- Category: Network Cables
- SKU: 2518411
- MPN: SMFIBLCLC4
StarTech.com
StarTech.com 4m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH…
- SKU
- CNZ-IM-043346
- MPN
- SMFIBLCLC4
- Rating
- No reviews yet
Overview
Connect fiber network devices for high-speed transfers with LSZH rated cable
The SMFIBLCLC4 4m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
The SMFIBLCLC4 4m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
Key features
- Cable length: 4 m
- Fibre optic type: OS1
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Yellow
- Full duplex: Yes
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Data transfer rate: 100 Gbit/s
- Jacket material: Low smoke zero halogen (LSZH)
- Compliance certificates: RoHS, CE
- Weight: 56 g
- Package width: 200 mm
- Package depth: 220 mm
- Package height: 14 mm
- Package weight: 66 g
- Master (outer) case width: 415 mm
- Harmonized System (HS) code: 85447000
- Master (outer) case length: 407 mm
- Master (outer) case height: 403 mm
- Products per master (outer) case: 176 pc(s)
Specifications
Features
| Cable length | 4 m |
|---|---|
| Fibre optic type | OS1 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Yellow |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Data transfer rate | 100 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
Certificates
| Compliance certificates | RoHS, CE |
|---|
Logistics data
| Master (outer) case width | 415 mm |
|---|---|
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 407 mm |
| Master (outer) case height | 403 mm |
| Products per master (outer) case | 176 pc(s) |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 14 mm |
| Package weight | 66 g |
Weight & dimensions
| Weight | 56 g |
|---|
Questions
$59.79inc GST
