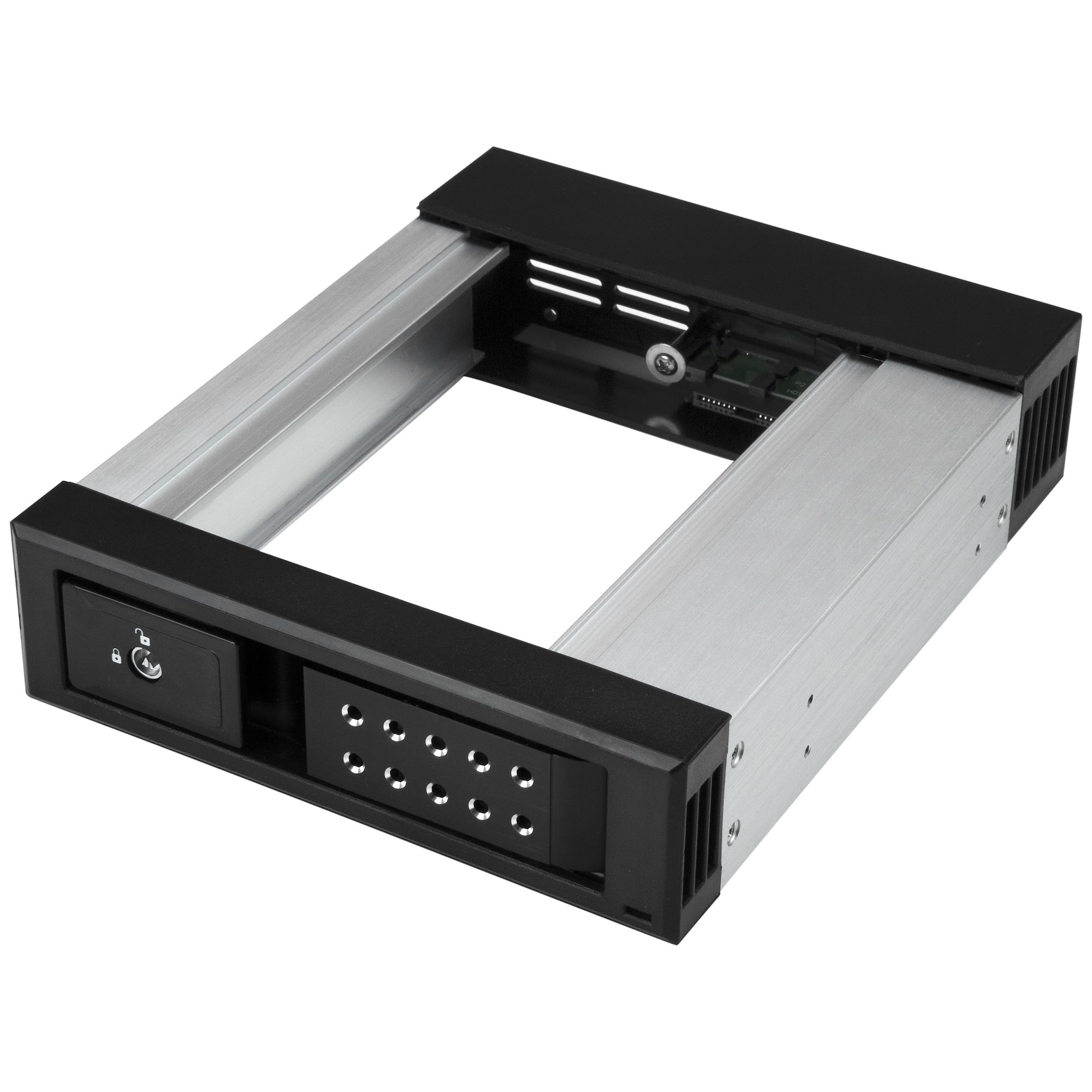

StarTech.com 5.25 to 3.5 Hard Drive Hot Swap Bay

5.25 to 3.5 Hard Drive Hot Swap Bay - Trayless - For 3.5in SATA/SAS Drives - Front Mount - Hard Drive Bay - SAS Backplane - SATA Backplane - Hot Swap Mobile Rack - HDD Rack

  • Brand: StarTech.com
  • Category: Servers & Storage
  • SKU: 3714103
  • MPN: HSB1SATSASBA
StarTech.com

StarTech.com 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS…

SKU
CNZ-IM-044178
MPN
HSB1SATSASBA

Overview

Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers

This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.

Hot-swap drives easily

This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection

The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.

Fast data transfers

To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Key features

  • Size (imperial): 13.3 cm (5.25")
  • Type: Carrier panel
  • Product colour: Black
  • Number of HDDs supported: 1
  • Maximum HDD capacity: 10 TB
  • HDD size: 3.5"
  • HDD interface: Serial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
  • Material: Aluminium
  • Supported storage drive heights: 26.1 mm
  • Hot-swap: Yes
  • Number of fans: 0 fan(s)
  • Data transfer rate: 6 Gbit/s
  • LED indicators: Activity, Power
  • Key lock: Yes
  • Width: 146 mm
  • Depth: 179 mm
  • Height: 39 mm
  • Weight: 336 g
  • Package width: 150 mm
  • Package depth: 197 mm
  • Package height: 45 mm
  • Package weight: 412 g
  • Quick start guide: Yes
  • Cables included: SATA

Specifications

Features

Size (imperial)13.3 cm (5.25")
TypeCarrier panel
Product colourBlack
Number of HDDs supported1
Maximum HDD capacity10 TB
HDD size3.5"
HDD interfaceSerial ATA, Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS)
MaterialAluminium
Supported storage drive heights26.1 mm
Hot-swapYes
Number of fans0 fan(s)
Data transfer rate6 Gbit/s
LED indicatorsActivity, Power
Key lockYes

Logistics data

Products per master (outer) case20 pc(s)
Master (outer) case width330 mm
Master (outer) case length420 mm
Master (outer) case height275 mm
Harmonized System (HS) code84733080

Packaging data

Package width150 mm
Package depth197 mm
Package height45 mm
Package weight412 g

Sustainability

Sustainability complianceYes

Packaging content

Quick start guideYes
Cables includedSATA
Screws includedYes
Number of lock keys included2 pc(s)
Number of screws4

Technical details

Compliance certificatesCE, RoHS

Weight & dimensions

Width146 mm
Depth179 mm
Height39 mm
Weight336 g

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 95%

Questions

$98.89inc GST
