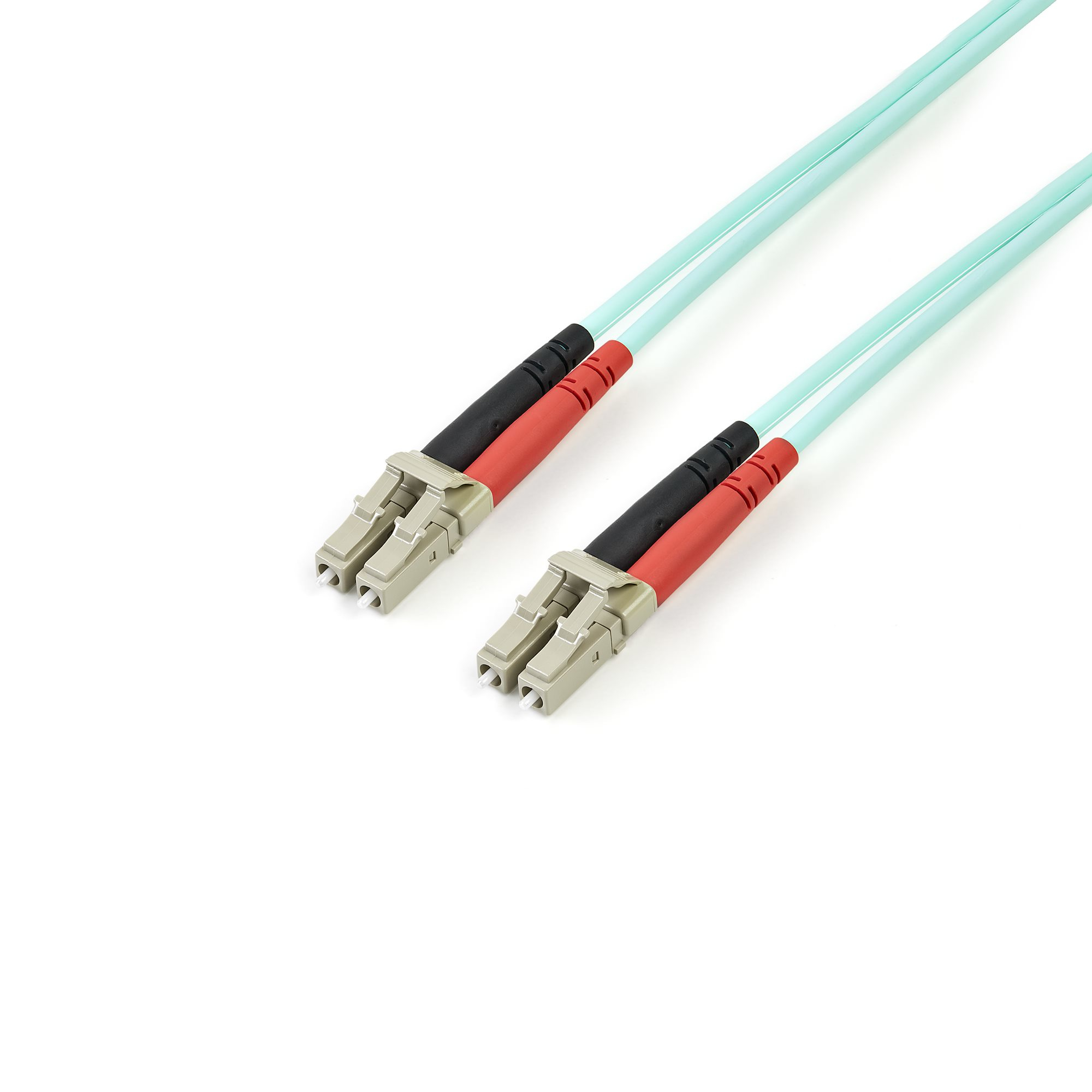

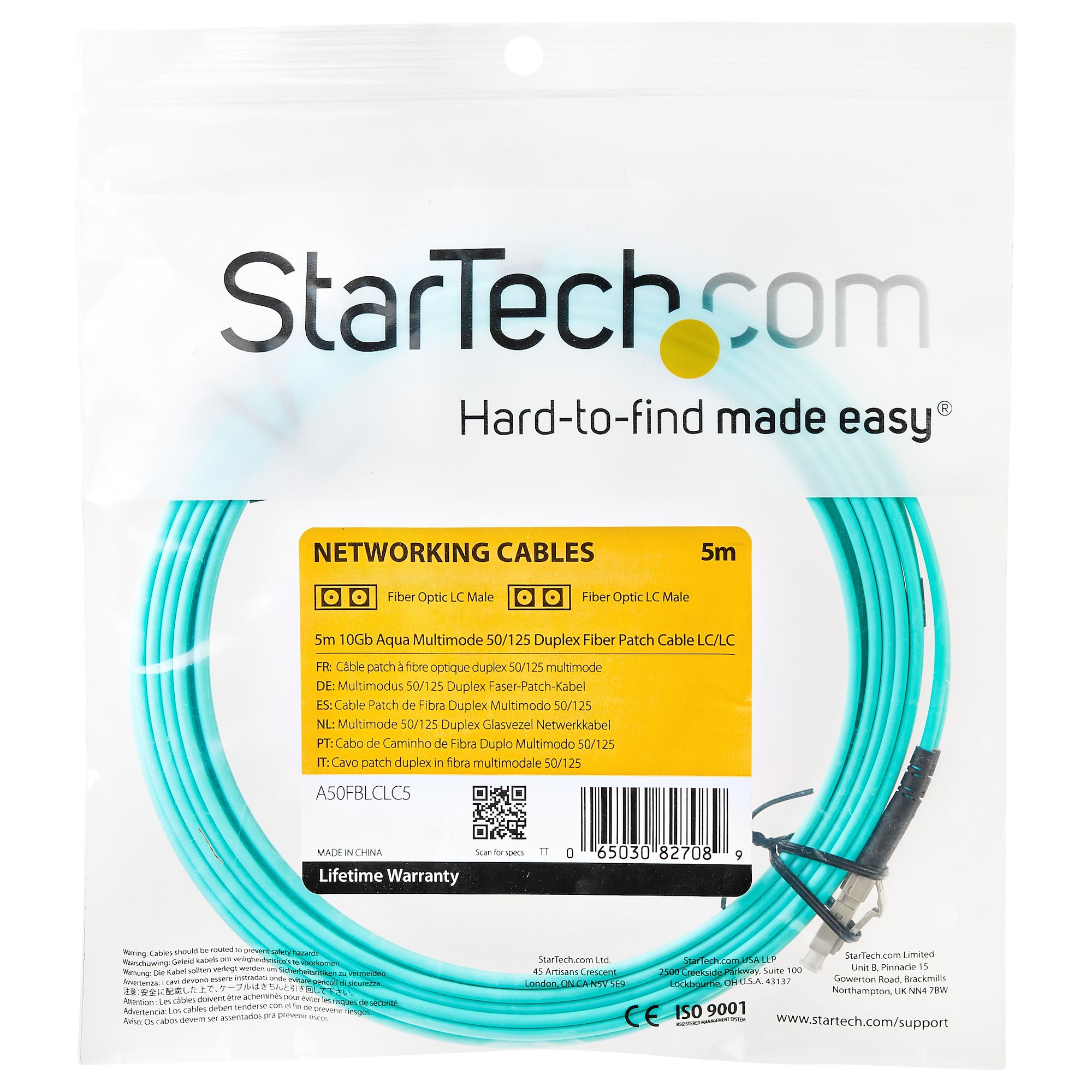

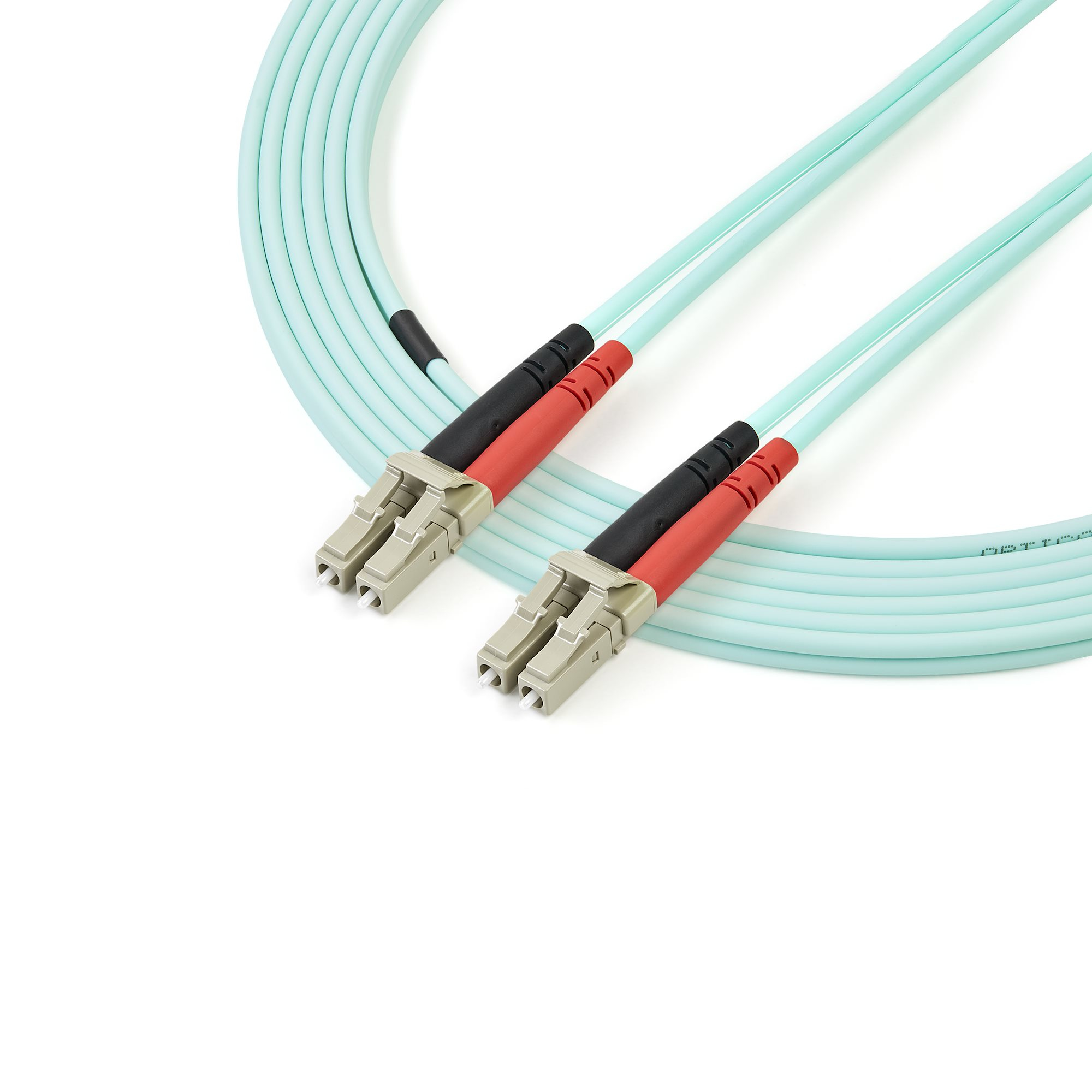

StarTech.com 5m 10 Gb Aqua MM Fiber Patch Cable LC/LC
10Gb Aqua Fiber Patch cable LC multi-mode (M) LC multi-mode (M) 5 m fiber optic 50 / 125 micron aqua
- Brand: StarTech.com
- Category: Network Cables
- SKU: 2748321
- MPN: A50FBLCLC5
StarTech.com
StarTech.com 5m (16.4ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic…
- SKU
- CNZ-IM-043365
- MPN
- A50FBLCLC5
- Rating
- No reviews yet
Overview
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
The A50FBLCLC5 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
The A50FBLCLC5 5m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
The StarTech.com Advantage
Key features
- Cable length: 5 m
- Fibre optic type: OM3
- Connector 1: LC
- Connector 2: LC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Product colour: Turquoise
- Full duplex: Yes
- Core diameter: 50 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Multi-mode
- Wavelengths supported: 850 nm
- Data transfer rate: 10 Gbit/s
- Jacket material: Low smoke zero halogen (LSZH)
- Doesn't contain: Halogen
- Compliance certificates: RoHS
- Cable diameter: 3 mm
- Weight: 67 g
- Package width: 200 mm
- Package depth: 220 mm
- Package height: 24 mm
- Package weight: 76 g
- Master (outer) case width: 400 mm
- Harmonized System (HS) code: 85447000
Specifications
Features
| Cable length | 5 m |
|---|---|
| Fibre optic type | OM3 |
| Connector 1 | LC |
| Connector 2 | LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Turquoise |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 850 nm |
| Data transfer rate | 10 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
Certificates
| Compliance certificates | RoHS |
|---|
Logistics data
| Master (outer) case width | 400 mm |
|---|---|
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 400 mm |
| Products per master (outer) case | 160 pc(s) |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 24 mm |
| Package weight | 76 g |
Sustainability
| Doesn't contain | Halogen |
|---|
Weight & dimensions
| Cable diameter | 3 mm |
|---|---|
| Weight | 67 g |
