STARTECH.COM 6' DISPLAYPORT TO MINI DISPLAYPORT CABLE DP MALE TO MDP FEMALE LTW
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: DP2MDPMF6IN
- MPN: DP2MDPMF6IN
STARTECH
StarTech.com 6in (15cm) DisplayPort to Mini DisplayPort Cable - 4K x…
- SKU
- CNZ-DD-014117
- MPN
- DP2MDPMF6IN
- Rating
- No reviews yet
Overview
Connect your Mini DisplayPort® monitor to a standard DisplayPort source.

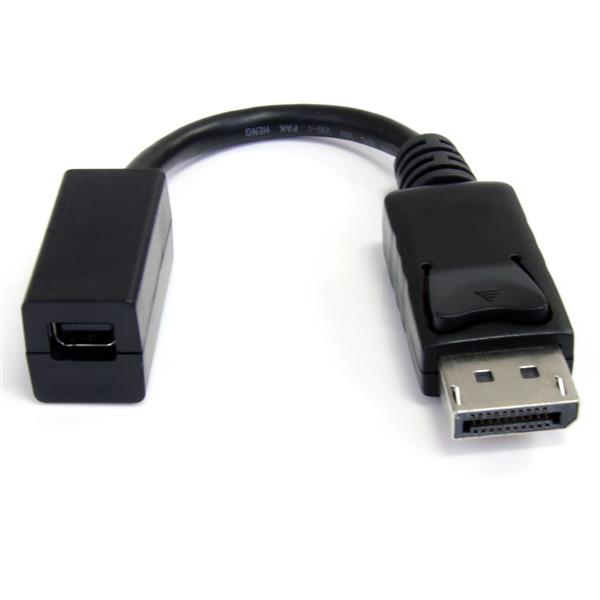

The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
The StarTech.com Advantage
The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Connector contacts plating: Nickel
- DisplayPort version: 1.2
- Maximum resolution: 3840 x 2400 pixels
- Supported graphics resolutions: 2560 x 1600 (WQXGA), 3840 x 2400
- Maximum refresh rate: 60 Hz
- Cable length: 0.152 m
- Connector 1: Mini DisplayPort
- Connector 2: DisplayPort
- Connector 1 gender: Male
- Connector 2 gender: Female
- Latching connectors: Yes
- Product colour: Black
- Cable rating: CMG (CM)
- Jacket material: Polyvinyl chloride (PVC)
- AWG wire size: 32
- Bandwidth: 21600 MB/s
- Multi-Stream Transport (MST): Yes
- Number of conductors: 19
- Operating temperature (T-T): 0 - 35 °C
- Storage temperature (T-T): -10 - 80 °C
- Operating relative humidity (H-H): 5 - 80%
- Compliance certificates: CE, RoHS
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Nickel |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2400 pixels |
| Supported graphics resolutions | 2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum refresh rate | 60 Hz |
| Cable length | 0.152 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Latching connectors | Yes |
| Product colour | Black |
| Cable rating | CMG (CM) |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 32 |
| Bandwidth | 21600 MB/s |
| Multi-Stream Transport (MST) | Yes |
| Number of conductors | 19 |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 320 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 240 pc(s) |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package weight | 22 g |
Weight & dimensions
| Cable diameter | 4.7 mm |
|---|---|
| Weight | 14 g |
Operational conditions
| Operating temperature (T-T) | 0 - 35 °C |
|---|---|
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 80% |
Questions
$41.39inc GST
