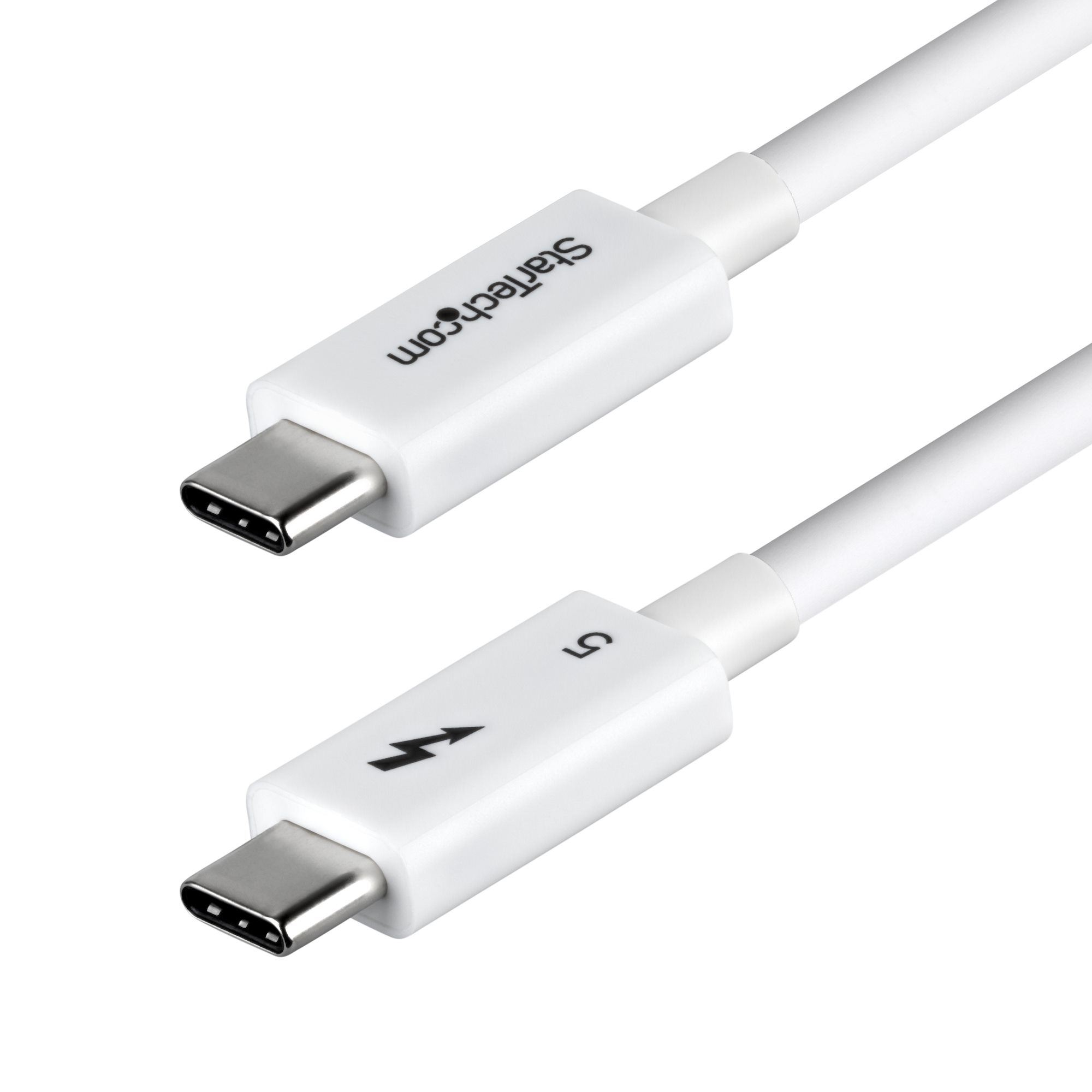

StarTech.com 80cm Certified Thunderbolt 5 Cable

80cm (2.6ft) Thunderbolt 5 Cable 80Gbps/Up to 120Gbps 240W PD 8K 60Hz Certified Thunderbolt Cable Compatible w/Thunderbolt 4/USB4/USB-C - White

  • Brand: StarTech.com
  • Category: Cables & Connectivity
  • SKU: 6760278
  • MPN: TBLT5MM80CM240WWH
StarTech.com

StarTech.com 2.6ft (80cm) Thunderbolt 5 Cable, 80Gbps/Up to 120Gbps,…

SKU
CNZ-IM-042795
MPN
TBLT5MM80CM240WWH

Overview

Facilitate ultra high-performance connectivity between Thunderbolt 5-enabled devices

Experience reliable, ultra-high performance between Thunderbolt 5-enabled devices, supporting up to twice the bandwidth of Thunderbolt 4, 8K 60Hz video, and 240W charging over a single connection. This Thunderbolt 5 cable is ideal for high-performance laptops such as 16in MacBook Pro with M4 Pro/Max.

Enhanced Bandwidth with Boost Mode

Transfer high-speed data and drive dual UHD displays with 80 Gbps bidirectional bandwidth. When higher bandwidth is required, Thunderbolt 5 Boost Mode reallocates the data lanes, enabling 120 Gbps (transmit) and 40 Gbps (receive). This asymmetric configuration is ideal for display-intensive tasks, such as driving multiple 8K monitors or handling high-resolution video workflows while still supporting robust data transfer capabilities.

Seamless Compatibility

Connect this Intel Thunderbolt-certified cable for guaranteed Thunderbolt 5 performance and backward compatibility. Certified cables ensure seamless operation across multiple resolutions, refresh rates, and resource-intensive applications.

Durable Design

The Thunderbolt 5 cable features a flexible TPE outer jacket that is tested to withstand 2,000 bending cycles and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable. The durable Nickel-plated connectors are rated to operate beyond 10,000 insertions.

Supported Thunderbolt 5 Features

This Certified Thunderbolt 5 Cable supports full Thunderbolt 5 performance:

• 80 Gbps bidirectional bandwidth, doubling the capacity of Thunderbolt 4
• 120 Gbps boost mode for display-intensive applications
• DisplayPort 2.1 Alt Mode: Up to 8K 60Hz/4K 240Hz video with DSC, HDR, and 10-bit color
• PCI Express 4.0 (64 Gbps) support for GPUs, NICs, and storage in PCIe chassis
• 240W Power Delivery EPR for charging for high-performance laptops
• Backward Compatibility with Thunderbolt 4/3, USB4 (40 Gbps), and USB 3.2 (10 Gbps)

This versatile Thunderbolt 5 cord is constructed with braided alloy shielding to minimize EMI for seamless and consistent data/video output and long-term reliable performance.

Key features

  • Connector 1: Male
  • Connector 2: Male
  • Cable length: 0.8 m
  • Data transfer rate (max): 120 Gbit/s
  • Product colour: White
  • Connector contacts plating: Nickel
  • Cable shape: Round
  • Thunderbolt version: 5
  • USB Power Delivery (USB PD): Yes
  • USB Power Delivery up to: 240 W
  • AWG wire size: 30/34
  • High Dynamic Range (HDR) supported: Yes
  • USB Type-C DisplayPort Alternate Mode: Yes
  • Maximum resolution: 7680 x 4320 pixels
  • Jacket material: Thermoplastic elastomer (TPE)
  • Operating temperature (T-T): 10 - 40 °C
  • Storage temperature (T-T): -10 - 50 °C
  • Operating relative humidity (H-H): 0 - 85%
  • Compliance certificates: CE, Federal Communications Commission (FCC), RoHS
  • Cable diameter: 4.6 mm
  • Quantity per pack: 1 pc(s)
  • Package width: 128 mm
  • Package depth: 220 mm
  • Package height: 20 mm

Specifications

Features

Connector 1Male
Connector 2Male
Cable length0.8 m
Data transfer rate (max)120 Gbit/s
Product colourWhite
Connector contacts platingNickel
Cable shapeRound
Thunderbolt version5
USB Power Delivery (USB PD)Yes
USB Power Delivery up to240 W
AWG wire size30/34
High Dynamic Range (HDR) supportedYes
USB Type-C DisplayPort Alternate ModeYes
Maximum resolution7680 x 4320 pixels
Jacket materialThermoplastic elastomer (TPE)

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS

Logistics data

Products per master (outer) case60 pc(s)
Master (outer) case length292 mm
Master (outer) case width435 mm
Master (outer) case height205 mm

Packaging data

Quantity per pack1 pc(s)
Package width128 mm
Package depth220 mm
Package height20 mm

Weight & dimensions

Cable diameter4.6 mm

Operational conditions

Operating temperature (T-T)10 - 40 °C
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 85%
