STARTECH.COM 91CM 4K 30HZ UHD HDMI FEMALE TO MALE ADAPTER PANEL MOUNT CABLE LTW
Peripherals & Accessories > Chargers & Power Adapters
- Brand: STARTECH
- Category: Peripherals
- SKU: HDMIPNLFM3
- MPN: HDMIPNLFM3
STARTECH
StarTech.com 3ft HDMI Female to Male Adapter, 4K High Speed Panel…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
Overview
Allows an HDMI® connection to be mounted on a secure and easily accessible panel.

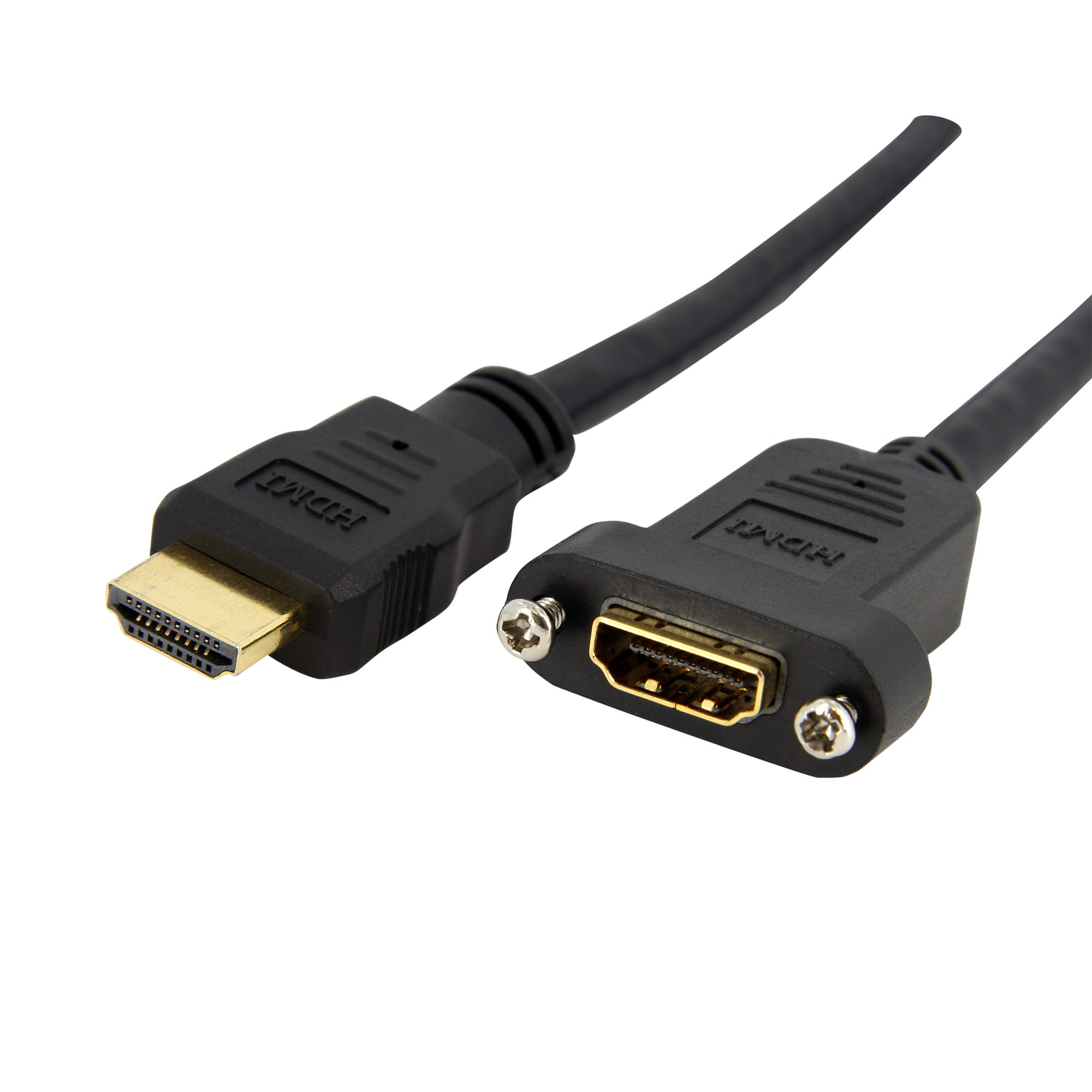

The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.
Backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
The HDMIPNLFM3 3ft High Speed HDMI® Cable for Panel Mount features an HDMI male connector on one end, and an HDMI panel mount (female) molded connector on the other, providing a well-secured, easy to access HDMI connection on any machine port or faceplate.
Backed by StarTech.com's Lifetime Warranty.
The StarTech.com Advantage
Key features
- Cable length: 0.9 m
- Connector 1: HDMI Type A (Standard)
- Connector 2: HDMI Type A (Standard)
- Connector 1 gender: Male
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Product colour: Black
- HDMI version: 1.4
- 3D: Yes
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
- Dolby technologies: Dolby Digital Plus, Dolby TrueHD
- Audio Return Channel (ARC): Yes
- HDCP: Yes
- HDCP version: 1.4
- Data transfer rate: 10.2 Gbit/s
- Maximum refresh rate: 120 Hz
- AWG wire size: 28
- Connector contacts plating: Gold
- Cable rating: CMG (CM)
- Cable jacket material: Polyvinyl chloride (PVC)
- Plug and Play: Yes
- Operating temperature (T-T): 5 - 70 °C
- Storage temperature (T-T): -10 - 80 °C
Specifications
Features
| Cable length | 0.9 m |
|---|---|
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Product colour | Black |
| HDMI version | 1.4 |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
| Dolby technologies | Dolby Digital Plus, Dolby TrueHD |
| Audio Return Channel (ARC) | Yes |
| HDCP | Yes |
| HDCP version | 1.4 |
| Data transfer rate | 10.2 Gbit/s |
| Maximum refresh rate | 120 Hz |
| AWG wire size | 28 |
| Connector contacts plating | Gold |
| Cable rating | CMG (CM) |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 380 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 140 pc(s) |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 1 mm |
| Package weight | 84 g |
| Quantity per pack | 1 pc(s) |
Weight & dimensions
| Cable diameter | 6.5 mm |
|---|---|
| Weight | 79 g |
Operational conditions
| Operating temperature (T-T) | 5 - 70 °C |
|---|---|
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
Questions
$42.54inc GST
