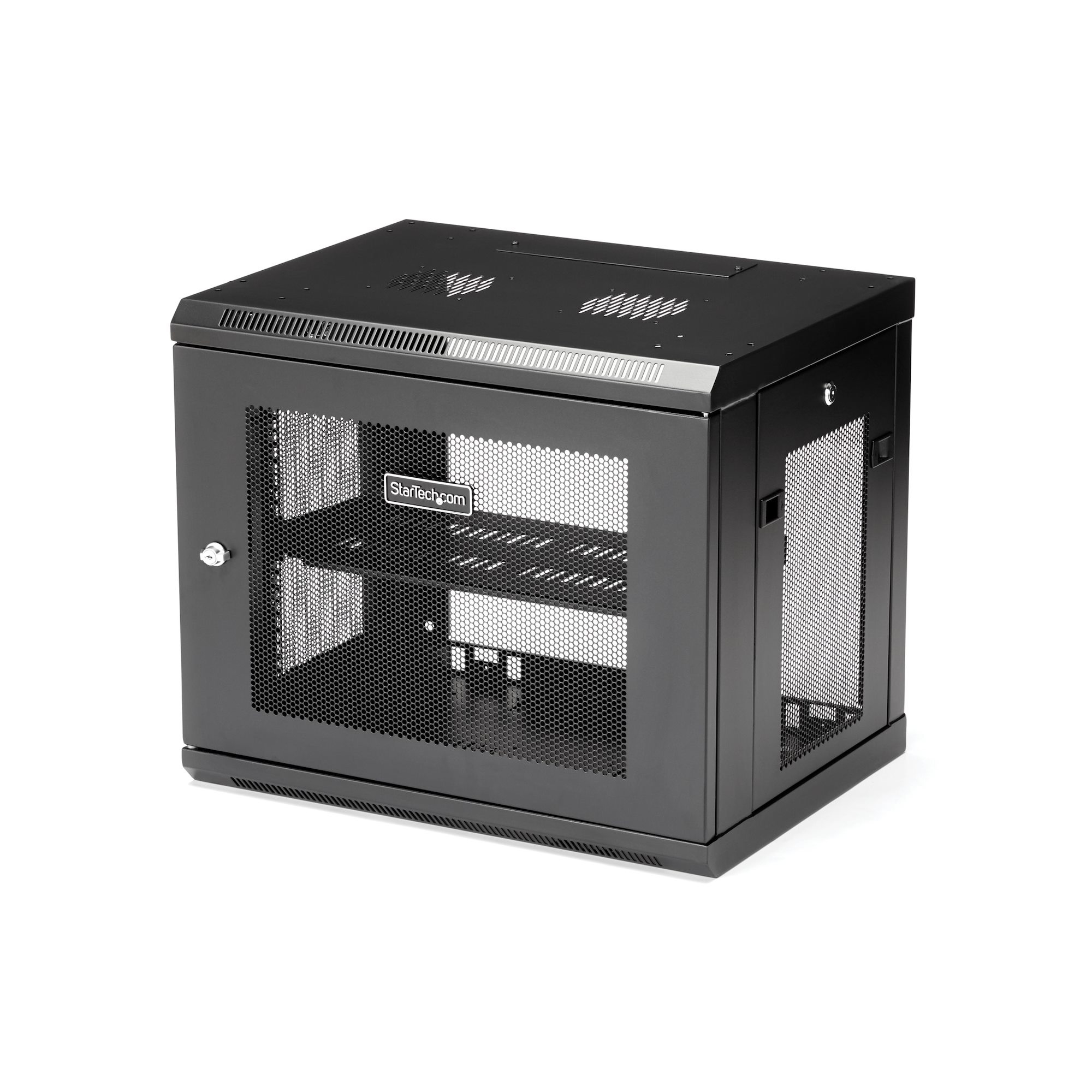

StarTech.com 9U Wall-Mount Rack - 17 in. Deep

9U Wall Mount Server Rack Cabinet - Wall Mount Network Cabinet - 17 in. Deep - Use this wall mount network cabinet to mount your server or networking equipment to the wall

  • Brand: StarTech.com
  • Category: Racks & Cabinets
  • SKU: 3698450
  • MPN: RK9WALM
StarTech.com

StarTech.com 2-Post 9U Wall Mount Network Cabinet with 1U Shelf, 19"…

SKU
CNZ-IM-043856
MPN
RK9WALM

Overview

Use this wall mount network cabinet to mount your equipment to the wall

This 9U server rack cabinet lets you mount your EIA-310 compliant equipment to the wall. The enclosure features an adjustable mounting depth from 6 to 15 in. and offers a maximum load capacity of 200 lb. (90 kg).

Save space in your office or server room

Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools or placing equipment that's not rack-mountable.

Easily install your servers and network equipment

The wall-mount network rack makes it easy to install your equipment, with 2-post mounting rails that can be positioned to create more room at the front or the back of the enclosure depending on your requirements.

The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure. The wall-mount server rack also includes all of the cage nuts and mounting screws you'll need to fill the rack with equipment, saving you the time, hassle and cost of sourcing mounting hardware.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

Key features

  • Rack capacity: 9U
  • Type: Wall mounted rack
  • Maximum weight capacity: 90 kg
  • Product colour: Black
  • Material: Steel
  • Frame type: Closed
  • Product design: 2-post
  • Back door construction: Steel
  • Front door construction: Steel
  • Removable front door: Yes
  • Key lock: Yes
  • Front door key lock: Yes
  • Adjustable mounting rails: Yes
  • Cable management: Yes
  • Mounting hole shape: Square
  • Assembly required: No
  • Certification: CE, REACH
  • Width: 600 mm
  • Depth: 450 mm
  • Height: 511 mm
  • Inner width: 59.4 cm
  • Inner depth: 43.3 cm
  • Weight: 17.7 kg
  • Mounting depth (max): 37 cm

Specifications

Features

Rack capacity9U
TypeWall mounted rack
Maximum weight capacity90 kg
Product colourBlack
MaterialSteel
Frame typeClosed
Product design2-post
Back door constructionSteel
Front door constructionSteel
Removable front doorYes
Key lockYes
Front door key lockYes
Adjustable mounting railsYes
Cable managementYes
Mounting hole shapeSquare
Assembly requiredNo
CertificationCE, REACH

Logistics data

Harmonized System (HS) code85381000
Master (outer) case width670 mm
Master (outer) case length530 mm
Master (outer) case height580 mm
Products per master (outer) case1 pc(s)

Other features

Compliance industry standardsEIA/ECA-310-E

Packaging data

Nuts includedYes
Number of nuts36
Screws includedYes
Number of screws36
Wall mounting kitYes
ManualYes
Package width670 mm
Package depth530 mm
Package height580 mm
Package weight20.8 kg

Technical details

Compliance certificatesRoHS

Weight & dimensions

Width600 mm
Depth450 mm
Height511 mm
Inner width59.4 cm
Inner depth43.3 cm
Weight17.7 kg
Mounting depth (max)37 cm
