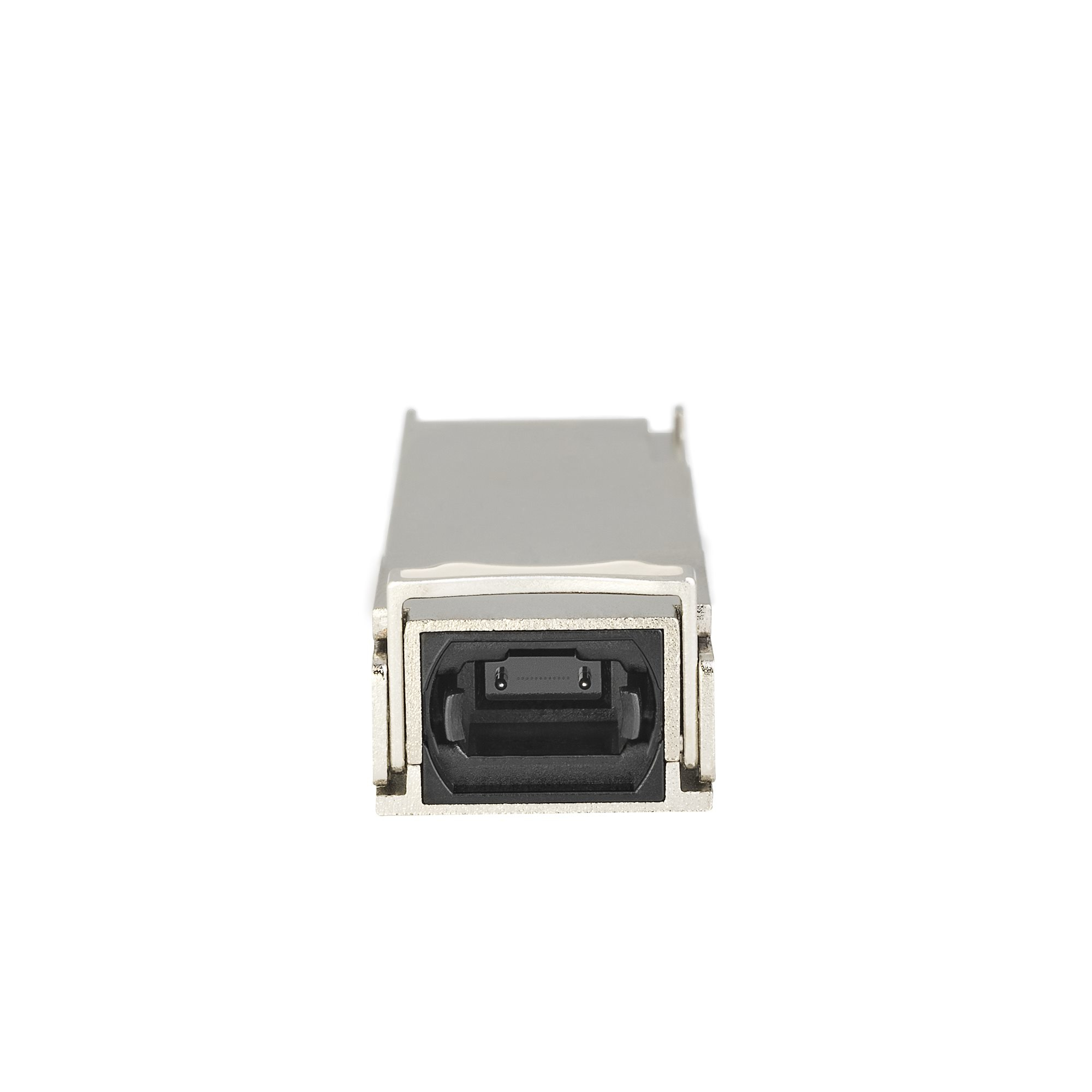

StarTech.com Cisco QSFP-40G-SR4 40GBase-SR4 QSFP+ MM
Cisco QSFP-40G-SR4 Compatible QSFP+ - 40 Gigabit Fiber 40GBase-SR4 QSFP+ Transceiver Module - MM with MPO fiber connector - 150 m (492 ft) - 850nm - 40G QSFP with DDM / DOM
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 3572680
- MPN: QSFP40GSR4ST
StarTech.com
StarTech.com Cisco QSFP-40G-SR4 Compatible QSFP+ Transceiver Module…
- Our SKU
- MPN
- Barcode
- Rating
- No reviews yet
−19%
Overview
40 Gbps | Multi Mode Fiber | MPO | 150 m (492 ft) | Lifetime Warranty
The QSFP40GSR4ST is a Cisco QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 1,649,326 hours
• Power Consumption: Less than 0.7 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
The QSFP40GSR4ST is a Cisco QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO Connector
• Maximum Transfer Distance: 150 m (492 ft)
• MTBF: 1,649,326 hours
• Power Consumption: Less than 0.7 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key features
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 40000 Mbit/s
- Interface type: QSFP+
- Multi-mode fiber (MMF) supported: Yes
- Fiber optic connector: MPO
- SFP transceiver standard: SR4
- Maximum transfer distance: 150 m
- Wavelength: 850 nm
- Networking standards: IEEE 802.3ba
- Duplex system: Full
- Digital Diagnostics Monitoring (DDM): Yes
- Product colour: Silver
- Housing material: Aluminium
- Hot-swap: Yes
- Mean time between failures (MTBF): 1649326 h
- Power consumption (typical): 0.7 W
- Compliance certificates: CE, RoHS
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
- Width: 18.4 mm
- Depth: 72 mm
- Height: 13 mm
- Weight: 32 g
Specifications
Power
| Power consumption (typical) | 0.7 W |
|---|
Features
| Product colour | Silver |
|---|---|
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 1649326 h |
Performance
| SFP transceiver type | Fiber optic |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Interface type | QSFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| Fiber optic connector | MPO |
| SFP transceiver standard | SR4 |
| Maximum transfer distance | 150 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3ba |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Master (outer) case width | 250 mm |
|---|---|
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
Packaging data
| Package width | 92 mm |
|---|---|
| Package depth | 117 mm |
| Package height | 34 mm |
| Package weight | 95 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Weight & dimensions
| Width | 18.4 mm |
|---|---|
| Depth | 72 mm |
| Height | 13 mm |
| Weight | 32 g |
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
