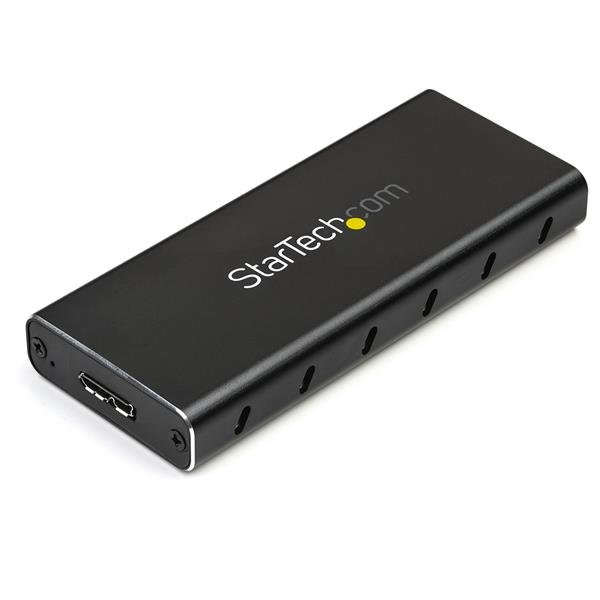

StarTech.com Cofre M.2 NGFF a USB 3.1 USB-C

Cofre Gabinete Adaptador M.2 NGFF a USB 3.1 con Carcasa Protectora - Conversor NGFF a USB-C

  • Brand: StarTech.com
  • Category: Servers & Storage
  • SKU: 3156490
  • MPN: SM21BMU31C3
StarTech.com

StarTech.com M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps)…

SKU
CNZ-IM-022106
MPN
SM21BMU31C3

Overview

Turn your M.2 SATA drive into an ultra-fast, ultra-portable storage solution for USB-C enabled devices

This compact M.2 SATA SSD enclosure lets you add highly portable data storage to any laptop or computer with a USB-C port - such as MacBook, Chromebook Pixel, Dell XPS laptops, and many others. It turns your SATA M.2 drive into a high-speed storage solution over a USB 3.1 Gen 2 connection, at up to 10Gbps throughput.

A truly portable solution

This slim, pocket-sized enclosure for M.2 NGFF SATA SSDs has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.

Ventilation holes help to dissipate heat and help ensure an optimum operating temperature.

Maximize the performance of your M.2 SATA SSD

Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10Gbps as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.

The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB-C ports.

Broad compatibility

The enclosure is compatible with all of the common M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).

The SM21BMU31C3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Leverage your SATA M.2 SSD to add fast external storage to your USB-C enabled host (USB-C cable included)
- Supports USB 3.1 Gen 2 (10Gbps)
- Compatible with Thunderbolt 3 USB-C port

Key features

  • Number of storage drives supported: 1
  • Storage drive size: M.2
  • Supported storage drive interfaces: M.2
  • Supported storage drive lengths: 80 mm
  • USB connectivity: Yes
  • USB version: 3.2 Gen 2 (3.1 Gen 2)
  • USB connector type: Micro-USB B
  • USB connector gender: Female
  • USB ports quantity: 1
  • Integrated USB cable: No
  • Product type: SSD enclosure
  • Product colour: Black, Silver
  • Material: Aluminium
  • LED indicators: Activity, Power
  • Certification: CE, FCC, TAA, REACH
  • Data transfer rate: 10 Gbit/s
  • Chipset: ASMedia - ASM1351
  • UASP support: Yes
  • Mean time between failures (MTBF): 1000000 h
  • Plug and Play: Yes
  • Power source type: USB
  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -10 - 65 °C
  • Operating relative humidity (H-H): 10 - 90%

Specifications

Power

Power source typeUSB

Design

Product typeSSD enclosure
Product colourBlack, Silver
MaterialAluminium
LED indicatorsActivity, Power
CertificationCE, FCC, TAA, REACH

Storage

Number of storage drives supported1
Storage drive sizeM.2
Supported storage drive interfacesM.2
Supported storage drive lengths80 mm

Performance

Data transfer rate10 Gbit/s
ChipsetASMedia - ASM1351
UASP supportYes
Mean time between failures (MTBF)1000000 h
Plug and PlayYes

Logistics data

Harmonized System (HS) code84733080

Packaging content

Cables includedUSB
Screws includedYes
Screwdriver includedYes
Quick installation guideYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

USB connectivityYes
USB version3.2 Gen 2 (3.1 Gen 2)
USB connector typeMicro-USB B
USB connector genderFemale
USB ports quantity1
Integrated USB cableNo

Weight & dimensions

Width42 mm
Depth99 mm
Height13 mm
Weight61 g
Package width161 mm
Package depth131 mm
Package height32 mm
Package weight139 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
