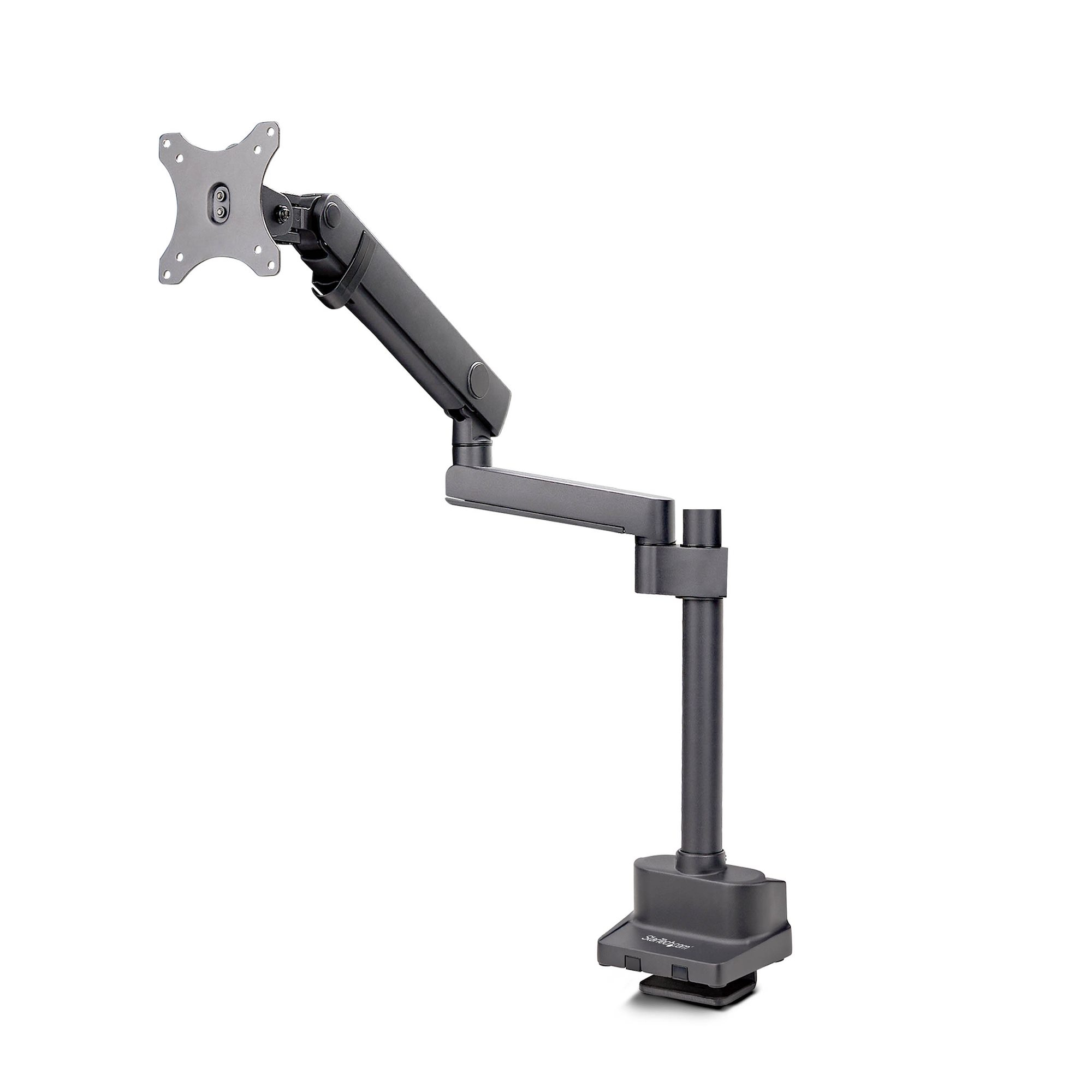

StarTech.com Desk Mount Monitor Arm 40in VESA Screen

Desk Mount Monitor Arm Up to 40-inch Screen/17.6lb (8kg) Mechanical Spring-Assisted Arm C-Clamp/Grommet Top-Down Installation Toolless Adjustment

  • Brand: StarTech.com
  • Category: Mounts & Brackets
  • SKU: 6743215
  • MPN: ARMPIVOT2
StarTech.com

StarTech.com Desk Mount Monitor Arm, Up to 40-inch Screen/17.6lb…

Our SKU
MPN
Barcode

Overview

Monitor desk mount with support for up to 40" monitor with height adjustable spring arm

This monitor desk mount creates an ergonomic workspace for productivity and supports up to a 40-inch monitor and a maximum weight of 17.6lb (8kg). The robust mechanical spring ensures long-term durability and allows for smooth arm adjustment to suit different ergonomic needs.

Top-Down Installation

The uniquely design desk clamp simplifies installation by enabling users to tighten the clamp from above using a hex key or a hand drill, eliminating the need to go under the desk. In addition, the desk clamp is designed with a C-clamp and grommet mount to accommodate desks up to 2 inches (50mm) thick, providing flexibility for different desk configurations.

Height Adjustment with One Smooth Motion

Mechanical spring-assisted arm enables a height adjustment range of up to 17.3in (44cm) to a maximum height of 24.4in (62cm) with effortless one-touch motion. The monitor arm can extend up to 23.3in (59.4cm) from the base of the desktop mount.

Range of Motion

Articulating arm enables 180° pan, and the quick-release VESA plate features tool-less adjustments of +/-90° horizontal swivel, +/-90° tilt, and 360° screen rotation for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Cable Management

Features a cable management channel along the underside of the swivel arm to keep cables out of sight. Additionally, multiple cable clips help reduce clutter and contribute to a tidy setup.

Key features

  • Maximum weight capacity: 8 kg
  • Minimum screen size: 43.2 cm (17")
  • Number of displays supported: 1
  • Maximum weight capacity (per display): 8 kg
  • Maximum screen size: 101.6 cm (40")
  • Minimum VESA mount: 75 x 75 mm
  • Maximum VESA mount: 100 x 100 mm
  • Desk thickness (min): 1 cm
  • Desk thickness (max): 5 cm
  • Height adjustment: Yes
  • Height adjustment range: 180 - 620 mm
  • Depth adjustment range: 419 - 594 mm
  • Tilt adjustment: Yes
  • Tilt angle range: -90 - 90°
  • Swivelling: Yes
  • Swivel angle range: -180 - 180°
  • Rotating: Yes
  • Angle of rotation: 360°
  • Cable management: Yes
  • Housing material: Plastic, Steel
  • Product colour: Black
  • Anti-theft function: No
  • Width: 115 mm
  • Depth: 703 mm

Specifications

Design

Housing materialPlastic, Steel
Product colourBlack
Anti-theft functionNo

Mounting

Maximum weight capacity8 kg
Minimum screen size43.2 cm (17")
Number of displays supported1
Maximum weight capacity (per display)8 kg
Maximum screen size101.6 cm (40")
Minimum VESA mount75 x 75 mm
Maximum VESA mount100 x 100 mm
Desk thickness (min)1 cm
Desk thickness (max)5 cm

Ergonomics

Height adjustmentYes
Height adjustment range180 - 620 mm
Depth adjustment range419 - 594 mm
Tilt adjustmentYes
Tilt angle range-90 - 90°
SwivellingYes
Swivel angle range-180 - 180°
RotatingYes
Angle of rotation360°
Cable managementYes

Logistics data

Master (outer) case width420 mm
Master (outer) case length370 mm
Master (outer) case height335 mm
Products per master (outer) case4 pc(s)

Packaging data

Package width435 mm
Package depth240 mm
Package height117 mm
Package weight3.7 kg

Packaging content

VESA mount includedYes
Number of cable clips1
Screws includedYes
Number of screws9
Number of washers included4
Grommet plate includedYes

Weight & dimensions

Width115 mm
Depth703 mm
Height607 mm
Weight3.6 kg

Questions

$246.09inc GST
