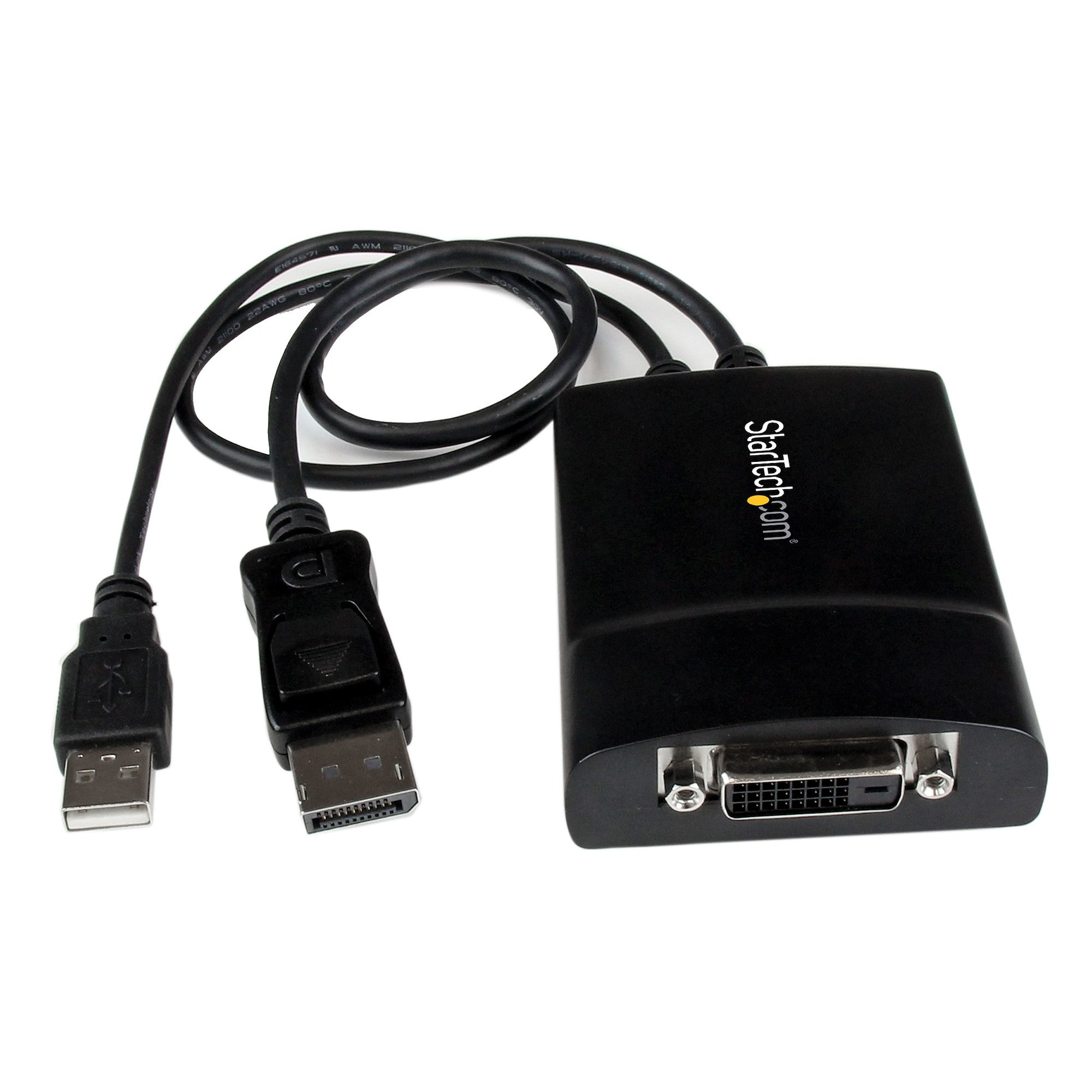

StarTech.com DP to DVI Dual Link Active Adapter
DisplayPort to DVI Dual Link Active Adapter Converter - DP to Dual Link DVI-D Active Adapter - 2560x1600 - 3D support
- Brand: StarTech.com
- Category: Video Cables
- SKU: 2332243
- MPN: DP2DVID2
StarTech.com
StarTech.com DisplayPort to DVI Dual Link Active Adapter -…
- SKU
- CNZ-IM-042902
- MPN
- DP2DVID2
- Rating
- No reviews yet
−11%
Overview
Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.
The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.
DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Back by StarTech.com 3-year warranty, with free lifetime technical support.
The StarTech.com Advantage
Key features
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- Power source: USB
- Cable length: 0.37 m
- Connector 1: DisplayPort
- Connector 2: DVI-D
- Connector 1 gender: Male
- Connector 2 gender: Female
- HDCP: Yes
- DisplayPort version: 1.2
- Dual Link DVI: Yes
- Maximum resolution: 2560 x 1600 pixels
- Supported graphics resolutions: 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
- Maximum refresh rate: 120 Hz
- HBR2 support: Yes
- Product colour: Black
- Converter type: Active video converter
- Operating temperature (T-T): 0 - 45 °C
- Storage temperature (T-T): -20 - 70 °C
- Compliance certificates: CE, RoHS
- Certification: RoHS
- Weight: 160 g
- Width: 64 mm
- Depth: 549 mm
Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Power source | USB |
| Cable length | 0.37 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDCP | Yes |
| DisplayPort version | 1.2 |
| Dual Link DVI | Yes |
| Maximum resolution | 2560 x 1600 pixels |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Maximum refresh rate | 120 Hz |
| HBR2 support | Yes |
| Product colour | Black |
| Converter type | Active video converter |
Certificates
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | RoHS |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 337 mm |
| Master (outer) case length | 497 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 28 pc(s) |
Packaging data
| Package width | 174 mm |
|---|---|
| Package depth | 143 mm |
| Package height | 35 mm |
| Package weight | 232 g |
Weight & dimensions
| Weight | 160 g |
|---|---|
| Width | 64 mm |
| Depth | 549 mm |
| Height | 22 mm |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
Questions
$133.39inc GST
