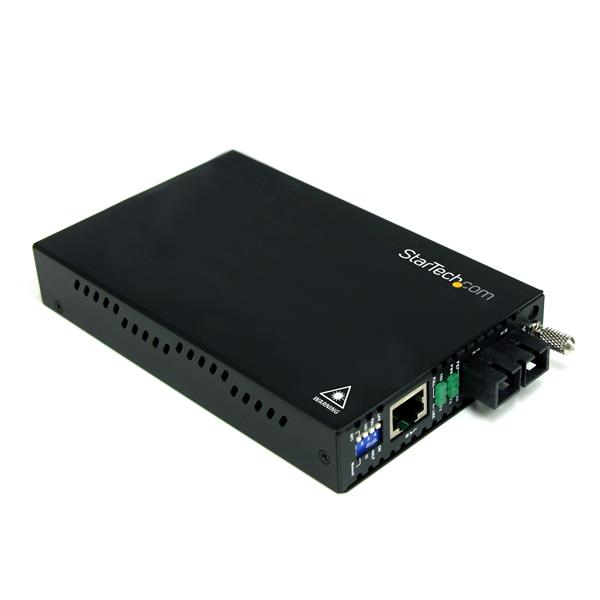

StarTech.com Ethernet to SC MM Fiber Media Converter
10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- Brand: StarTech.com
- Category: Network Accessories
- SKU: 2061160
- MPN: ET90110SC2
StarTech.com
StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- SKU
- CNZ-IM-021481
- MPN
- ET90110SC2
- Rating
- No reviews yet
Overview
Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode SC fiber
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote status monitoring help ensure maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
Key features
- Maximum data transfer rate: 200 Mbit/s
- Networking standards: IEEE 802.3, IEEE 802.3u
- Auto MDI/MDI-X: Yes
- Duplex system: Full, Half
- Maximum transfer distance: 2000 m
- Wavelength: 1310 nm
- Wavelength-division multiplexing (WDM): No
- Fiber mode structure: Multi-mode
- Internal: No
- Product colour: Black
- Housing material: Steel
- Connectivity technology: Wired
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 1
- Fiber optic connector: SC
- Input voltage: 100 - 240 V
- Output voltage: 12 V
- Output current: 1.6 A
- Power over Ethernet (PoE): No
- Power plug type: Type M
- Width: 87 mm
- Depth: 153 mm
- Height: 24 mm
- Weight: 600 g
Specifications
Power
| Input voltage | 100 - 240 V |
|---|---|
| Output voltage | 12 V |
| Output current | 1.6 A |
| Power over Ethernet (PoE) | No |
| Power plug type | Type M |
Network
| Maximum data transfer rate | 200 Mbit/s |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Duplex system | Full, Half |
Features
| Internal | No |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Performance
| Maximum transfer distance | 2000 m |
|---|---|
| Wavelength | 1310 nm |
| Wavelength-division multiplexing (WDM) | No |
| Fiber mode structure | Multi-mode |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Other features
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
|---|---|
| Full duplex | Yes |
Packaging data
| Package width | 190 mm |
|---|---|
| Package depth | 233 mm |
| Package height | 77 mm |
| Package weight | 779 g |
Packaging content
| AC adapter included | Yes |
|---|---|
| Manual | Yes |
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
Weight & dimensions
| Width | 87 mm |
|---|---|
| Depth | 153 mm |
| Height | 24 mm |
| Weight | 600 g |
