StarTech.com Ethernet to SC SM Fiber Media Converter

10/100 Mbps Single Mode Fiber Media Converter SC 30 km

  • Brand: StarTech.com
  • Category: Network Accessories
  • SKU: 2061161
  • MPN: ET90110SM302
StarTech.com

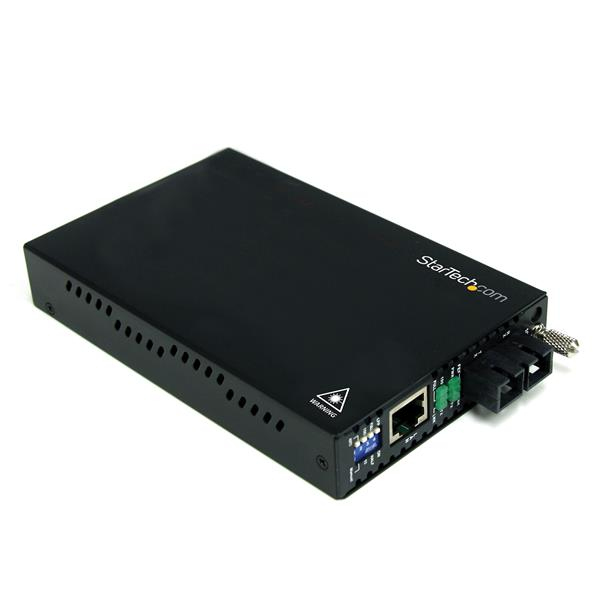

StarTech.com 10/100 Mbps Single Mode Fiber Media Converter SC 30 km

SKU
CNZ-IM-021485
MPN
ET90110SM302

Overview

Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber
The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Key features

  • Maximum data transfer rate: 200 Mbit/s
  • Converter input interface: 10Base-T
  • Converter output interface: 100Base-FX
  • Ethernet interface type: Fast Ethernet
  • Ethernet LAN data rates: 10,100 Mbit/s
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full, Half
  • Maximum transfer distance: 30000 m
  • Wavelength: 1310 nm
  • Fiber mode structure: Single-mode
  • Internal: No
  • Plug and Play: Yes
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: SC
  • DC-in jack: Yes
  • Output voltage: 12 V
  • Output current: 1 A
  • External power adapter: Yes
  • Weight: 600 g
  • Operating temperature (T-T): 0 - 60 °C
  • Storage temperature (T-T): -10 - 70 °C

Specifications

Power

Output voltage12 V
Output current1 A
External power adapterYes

Network

Maximum data transfer rate200 Mbit/s
Converter input interface10Base-T
Converter output interface100Base-FX
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half

Features

InternalNo
Plug and PlayYes
Product colourBlack

Performance

Maximum transfer distance30000 m
Wavelength1310 nm
Fiber mode structureSingle-mode

Certificates

Compliance certificatesRoHS
CertificationCE, FCC

Logistics data

Harmonized System (HS) code85176990

Other features

Dimensions (WxDxH)95 x 160 x 20 mm
Full duplexYes

Packaging data

Package width206 mm
Package depth137 mm
Package height89 mm
Package weight766 g

Packaging content

ManualYes

Ports & interfaces

Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
DC-in jackYes

Weight & dimensions

Weight600 g

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
