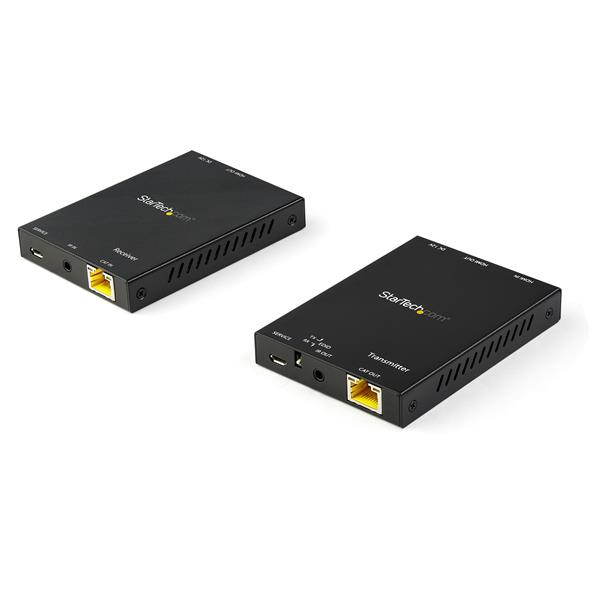

StarTech.com Extender - HDMI to CAT6 Converter

HDMI over CAT6 Extender Kit - 4K 60Hz - HDMI Balun Kit - Signal up to 50 m / 165 ft - HDR - 4:4:4 - 7.1 Audio Support

  • Brand: StarTech.com
  • Category: Switches
  • SKU: 4478080
  • MPN: ST121HD20V
StarTech.com

StarTech.com HDMI over CAT6 Extender Kit - 4K 60Hz

SKU
CNZ-IM-043749
MPN
ST121HD20V

Overview

HDMI Balun Kit | HDR | 4:4:4 | 7.1 Audio Support | 165 ft. (50 m)

This HDMI over CAT6 extender lets you transmit your 4K 60Hz signal up to 165 ft. (50 m) over a single CAT6 cable, with the added benefit of a local HDMI output. The extender supports High Dynamic Range (HDR), providing high contrast images with enhanced video.

Astonishing 4K Picture Quality

This HDMI Ethernet extender supports a 4K 60Hz (3840 x 2160) resolution, providing four times the picture quality of high-definition (1080p). The extender supports HDMI 2.0 capabilities, offering 4:4:4 chroma subsampling. This ensures a crystal-clear picture that's ideal for delivering video content. With HDR support, you can enjoy increased contrast, color brightness and greater luminosity in your images.

Long-Distance Transmission

Extend an HDMI signal to up to 165 ft. (50 m) with the HDMI to CAT6 converter. Use your existing CAT6 cable infrastructure with a direct connection to the converter for an easy run through walls and ceilings, saving you on installation costs.

Compatible with HDCP 2.2 Devices

Connect your HDMI 2.0 devices and displays with confidence, knowing this extender is HDCP 2.2 compliant. This lets you harness the capabilities of HDMI-enabled devices such as Blu-ray players or online streaming devices in higher resolutions. It is also backward compatible with previous generations of HDMI and HDCP.

ST121HD20V is backed by 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage

- Crystal-clear picture quality with support for resolutions up to 4K 60Hz
- Compatible with HDR and 4:4:4 chroma subsampling for lifelike images
- Hassle-free setup with long-distance transmission over a reliable connection

Key features

  • Type: AV transmitter & receiver
  • Maximum resolution: 3840 x 2160 pixels
  • Cable types supported: Cat6
  • Maximum transfer distance: 50 m
  • Maximum refresh rate: 60 Hz
  • Audio output channels: 7.1 channels
  • Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
  • HDCP: Yes
  • HDCP version: 2.2
  • Product colour: Black
  • Certification: CE, FCC, REACH
  • Connectivity technology: Wired
  • RJ-45 input ports: 1
  • RJ-45 output ports: 1
  • HDMI in: 1
  • Number of HDMI outputs: 2
  • HDMI version: 2.0
  • AC input voltage: 100 - 240 V
  • Input current: 0.3 A
  • Operating voltage (transmitter): 12 V
  • Output current: 1 A
  • Operating voltage (receiver): 12 V
  • Power plug type: Type M
  • Operating temperature (T-T): 0 - 40 °C

Specifications

Power

AC input voltage100 - 240 V
Input current0.3 A
Operating voltage (transmitter)12 V
Output current1 A
Operating voltage (receiver)12 V
Power plug typeType M

Features

TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat6
Maximum transfer distance50 m
Maximum refresh rate60 Hz
Audio output channels7.1 channels
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
HDCPYes
HDCP version2.2
Product colourBlack
CertificationCE, FCC, REACH

Logistics data

Harmonized System (HS) code85176200
Master (outer) case width375 mm
Master (outer) case length457 mm
Master (outer) case height282 mm
Products per master (outer) case20 pc(s)

Packaging data

Package width130 mm
Package depth220 mm
Package height70 mm
Package weight777 g

Packaging content

Included power plug typesANZ, EU, JP, NA, UK
Quick start guideYes
IR blaster includedYes
IR receiver includedYes

Technical details

Compliance certificatesRoHS

Ports & interfaces

Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs2
HDMI version2.0

Weight & dimensions

Width70 mm
Depth97 mm
Height13 mm
Weight156 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 80%
