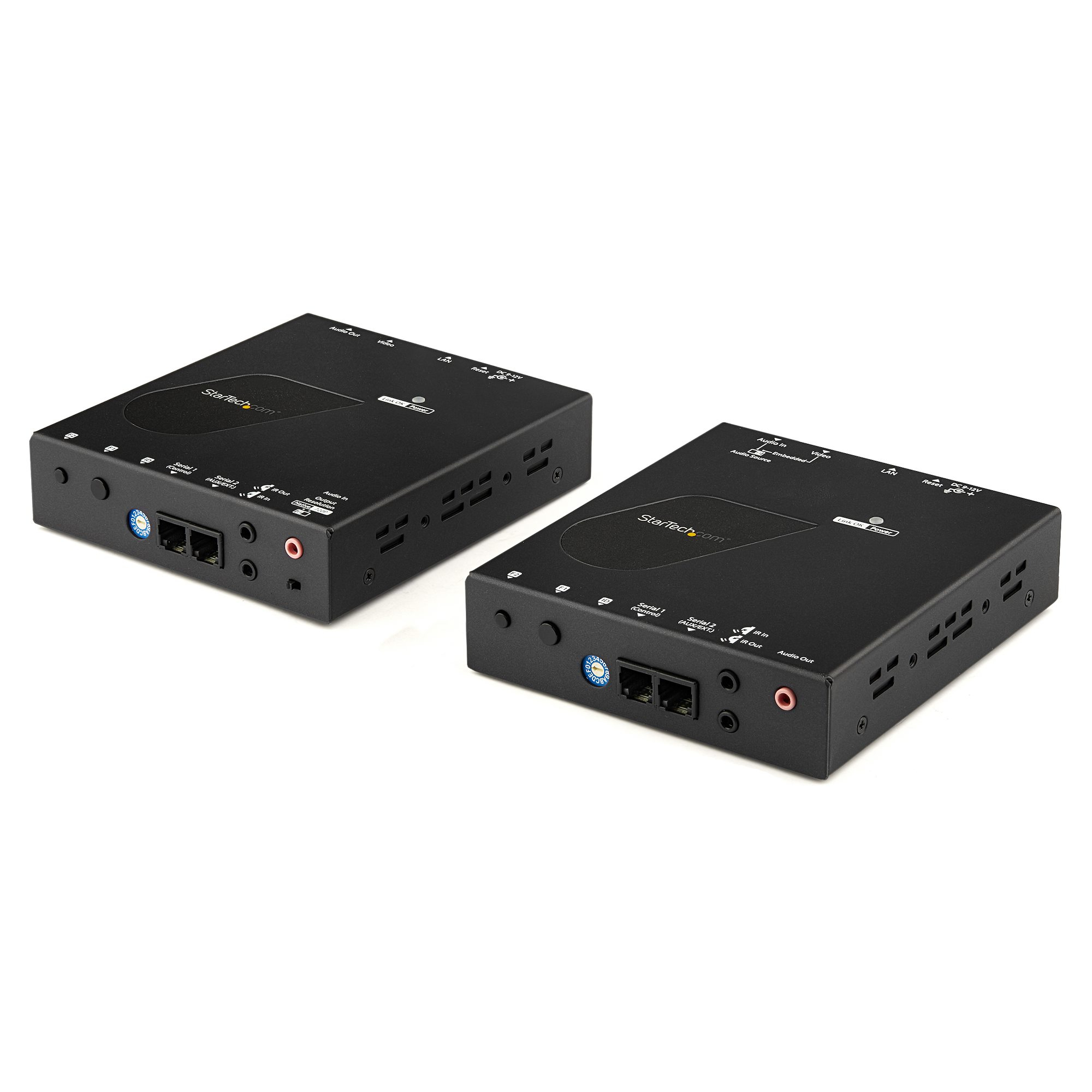

StarTech.com Extender Kit - HDMI over IP - 1080p
HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over Cat5 or Cat6 Ethernet Transmitter and Receiver Kit
- Brand: StarTech.com
- Category: Switches
- SKU: 4403004
- MPN: ST12MHDLAN2K
StarTech.com
StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p
- SKU
- CNZ-IM-043748
- MPN
- ST12MHDLAN2K
- Rating
- No reviews yet
−22%
Overview
HDMI® Video over Cat5e or Cat6 |Multiple Sources to Multiple Displays | Mobile Control App
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5e or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
Resolutions up to 1080p, with Audio
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
Mobile Control Through a Free App
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, and Android for a smartphone or tablet.
Download the StarTech.com Video Control software to manage your IP video distribution.
NOTE: Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled.
Hassle-Free Installations
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key features
- Type: AV transmitter & receiver
- Maximum resolution: 1920 x 1080 pixels
- Cable types supported: Cat5e, Cat6
- Maximum transfer distance: 100 m
- Maximum refresh rate: 60 Hz
- Audio output channels: 7.1 channels
- LED indicators: Link, Network, Power, Status
- Supported video modes: 720p, 1080p
- Supported graphics resolutions: 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
- Rack mounting: Yes
- Daisy chain: Yes
- Rubber feet: Yes
- Product colour: Black
- RJ-45 input ports: 1
- RJ-45 output ports: 1
- HDMI in: 1
- Number of HDMI outputs: 1
- Audio input: 2 x 3.5 mm
- Audio output: 2 x 3.5 mm
- RJ-11 ports quantity: 4
- 3.5 mm (1/8-inch) in: Yes
- 3.5 mm (1/8-inch) out: Yes
- AC input voltage: 100 - 240 V
- Operating voltage: 12 V
Specifications
Power
| AC input voltage | 100 - 240 V |
|---|---|
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 10 W |
| External power adapter | Yes |
| Power plug type | Type M |
Features
| Type | AV transmitter & receiver |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio output channels | 7.1 channels |
| LED indicators | Link, Network, Power, Status |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800, 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Rack mounting | Yes |
| Daisy chain | Yes |
| Rubber feet | Yes |
| Product colour | Black |
Logistics data
| Master (outer) case width | 385 mm |
|---|---|
| Master (outer) case length | 390 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 6 pc(s) |
Packaging data
| Package width | 235 mm |
|---|---|
| Package depth | 365 mm |
| Package height | 75 mm |
| Package weight | 2.3 kg |
Packaging content
| AC adapter included | Yes |
|---|---|
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| Included power plug types | ANZ, EU, JP, NA, UK, US |
| Manual | Yes |
| IR blaster included | Yes |
| IR receiver included | Yes |
| Mounting kit | Yes |
Technical details
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE, RoHS |
Ports & interfaces
| RJ-45 input ports | 1 |
|---|---|
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Audio input | 2 x 3.5 mm |
| Audio output | 2 x 3.5 mm |
| RJ-11 ports quantity | 4 |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
Weight & dimensions
| Width | 118 mm |
|---|---|
| Depth | 131 mm |
| Height | 31 mm |
| Weight | 1.2 kg |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Questions
$1,126.99inc GST
