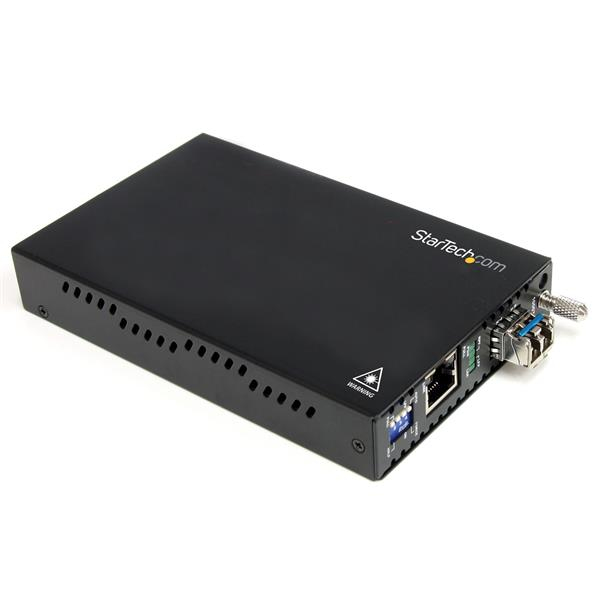

StarTech.com Fiber Media Converter Gigabit Fibre LC

StarTech.com Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m

  • Brand: StarTech.com
  • Category: Network Accessories
  • SKU: 2061164
  • MPN: ET91000LC2
StarTech.com

StarTech.com Fiber Media Converter Gigabit 1000Mbps MM Fibre LC 550m

SKU
CNZ-IM-021486
MPN
ET91000LC2

Overview

Convert and extend a Gigabit Ethernet connection up to 550 m / 1804 ft over Multimode LC fiber

The ET91000LC2 1000 Mbps Gigabit Multimode Fiber Media Converter (LC, 550m) lets you extend a Gigabit Ethernet network over multimode fiber, at distances up to 550m (1804 ft).

A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, this GbE to MM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet-to-fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable SFP slot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Link loss forwarding, remote status monitoring ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments

Key features

  • Maximum data transfer rate: 2000 Mbit/s
  • Converter input interface: 1000Base-T
  • Converter output interface: 1000Base-LX, 1000Base-SX
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 1000 Mbit/s
  • Auto MDI/MDI-X: Yes
  • Duplex system: Full, Half
  • Maximum transfer distance: 550 m
  • Wavelength: 850 nm
  • Fiber mode structure: Multi-mode
  • Mean time between failures (MTBF): 65000 h
  • Internal: No
  • Plug and Play: Yes
  • Product colour: Black
  • Connectivity technology: Wired
  • Ethernet LAN (RJ-45) ports: 1
  • Fiber ports quantity: 1
  • Fiber optic connector: LC
  • DC-in jack: Yes
  • Output voltage: 12 V
  • Output current: 1 A
  • Power consumption (typical): 4 W
  • External power adapter: Yes
  • Weight: 620 g

Specifications

Power

Output voltage12 V
Output current1 A
Power consumption (typical)4 W
External power adapterYes

Network

Maximum data transfer rate2000 Mbit/s
Converter input interface1000Base-T
Converter output interface1000Base-LX, 1000Base-SX
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates1000 Mbit/s
Auto MDI/MDI-XYes
Duplex systemFull, Half

Features

InternalNo
Plug and PlayYes
Product colourBlack

Performance

Maximum transfer distance550 m
Wavelength850 nm
Fiber mode structureMulti-mode
Mean time between failures (MTBF)65000 h

Certificates

Compliance certificatesRoHS
CertificationCE, FCC

Logistics data

Harmonized System (HS) code85176990

Other features

Dimensions (WxDxH)95 x 160 x 20 mm
Full duplexYes

Packaging data

Package width206 mm
Package depth138 mm
Package height89 mm
Package weight774 g

Packaging content

ManualYes

Ports & interfaces

Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorLC
DC-in jackYes

Weight & dimensions

Weight620 g

Operational conditions

Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)10 - 90%
